KPA Ku-Band Indoor Solid-State Power Amplifier Revision 1
Ethernet Management MN/KPA.IOM
6–10
6.5.4.2.2 Admin | SNMP page

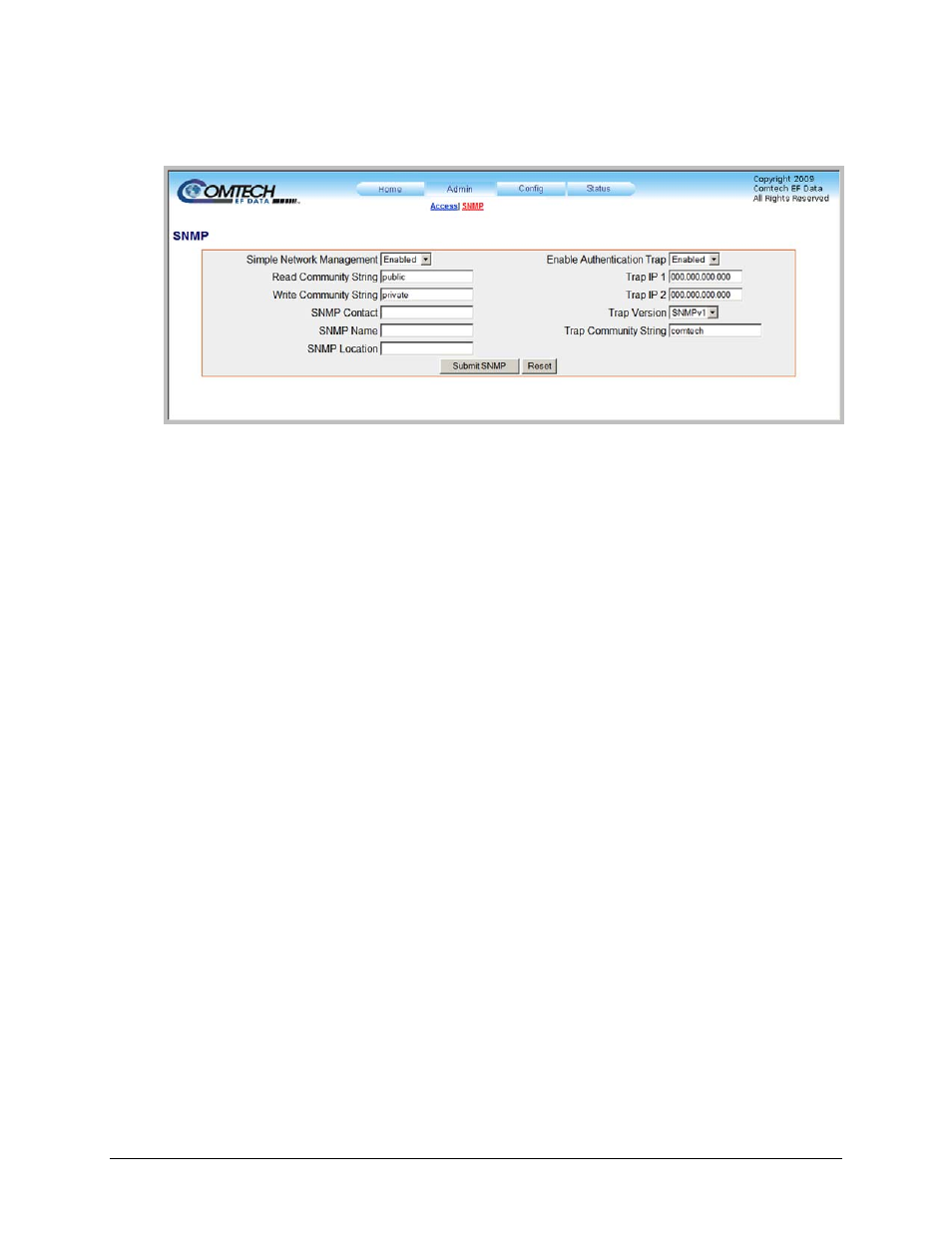

Figure 6-4. Admin | SNMP page
The ‘Admin | SNMP’ page (Figure 6-4) sets and returns administration information for the
KPA’s Simple Network Management Protocol (SNMP) feature. For further details pertaining to
the configuration parameters available on this page, refer to Chapter 5. FRONT PANEL
OPERATION and Sect. 6.3 SNMP INTERFACE.
Note the following:
• Simple Network Management: Use the drop-down menu to select as Enabled or Disabled.
• Read and Write Community String: The factory defaults assigned for these parameters are,
respectively, public and private. Otherwise, assign the desired parameters using any
combination of characters and a length of 0 - 20 characters in these fields.
• SNMP Contact / SNMP Name / SNMP Location: Assign the pertinent administrator’s
information to each field using any combination of characters and a length of 0 - 20
characters in these fields.
• Enable Authentication Trap: Use the drop-down menu to select as Enabled or Disabled.
• Trap IP 1 / Trap IP 2: Up to two SNMP Trap IP addresses may be assigned.
• Trap Version: Use the drop-down menu to select the Trap Version SNMPv1 or SNMPv2.
• Trap Community String: The factory default assigned for this parameter is public. The
SNMP Trap Community String can be any combination of characters and a length of 0 -
20 characters.
Once the desired configuration settings have been made on this page, the user should then click
[Submit SNMP] to save these changes. Otherwise, click [Reset] to cancel any changes and
restore the previously saved parameters.
