Comtech EF Data KPA - Manual (Page 66)

KPA Ku-Band Indoor Solid-State Power Amplifier Revision 1
Ethernet Management MN/KPA.IOM
6–4

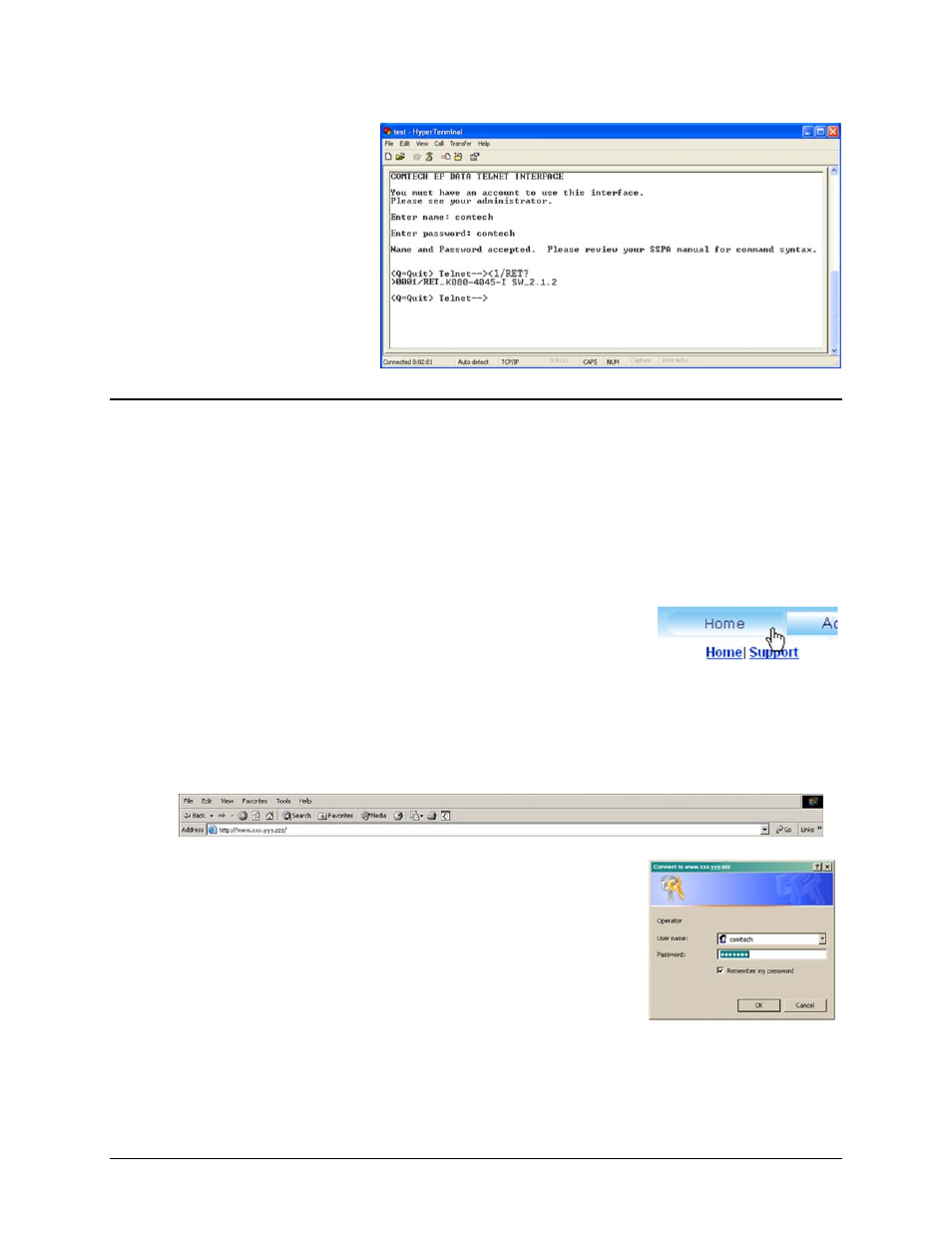

Login and remote command
execution via HyperTerminal
configured as Telnet Client
appears as shown:
6.5 Web Server (HTTP) Interface
6.5.1 Web Server page Introduction
The embedded Web Server application provides the user with an easy to use interface to
configure and monitor all aspects of the KPA. These Web pages have been designed for optimal
performance when using Microsoft’s Internet Explorer Version 5.5 or higher (the examples
shown use Internet Explorer Version 7.0).
The user can fully control and monitor base operations of the KPA
from the Web Server Interface. By rolling the cursor over the
navigation tabs located at the top of each page (right), the user can
select from the available nested tabs.
6.5.2 Web Server Interface Access
To initiate a Web session with the KPA, from the PC type http://www.xxx.yyy.zzzz (where
“www.xxx.yyy.zzz” represents the IP address of the unit) into the Address area of the Web browser:
Once the valid IP address is entered, Before any further access to the
pages can granted, the User is prompted for a User Name and
Password via the Login Window, similar to the example shown at
right.
Default User name – comtech
Default Password – comtech
Type the User Name and Password, then click [OK].
