Hardware Preparation and Installation

MVME8100 / MVME8110 Installation and Use (6806800P25G)

36

The following sections describe the on-board switches and their configurations for the
MVME8100 / MVME8110.

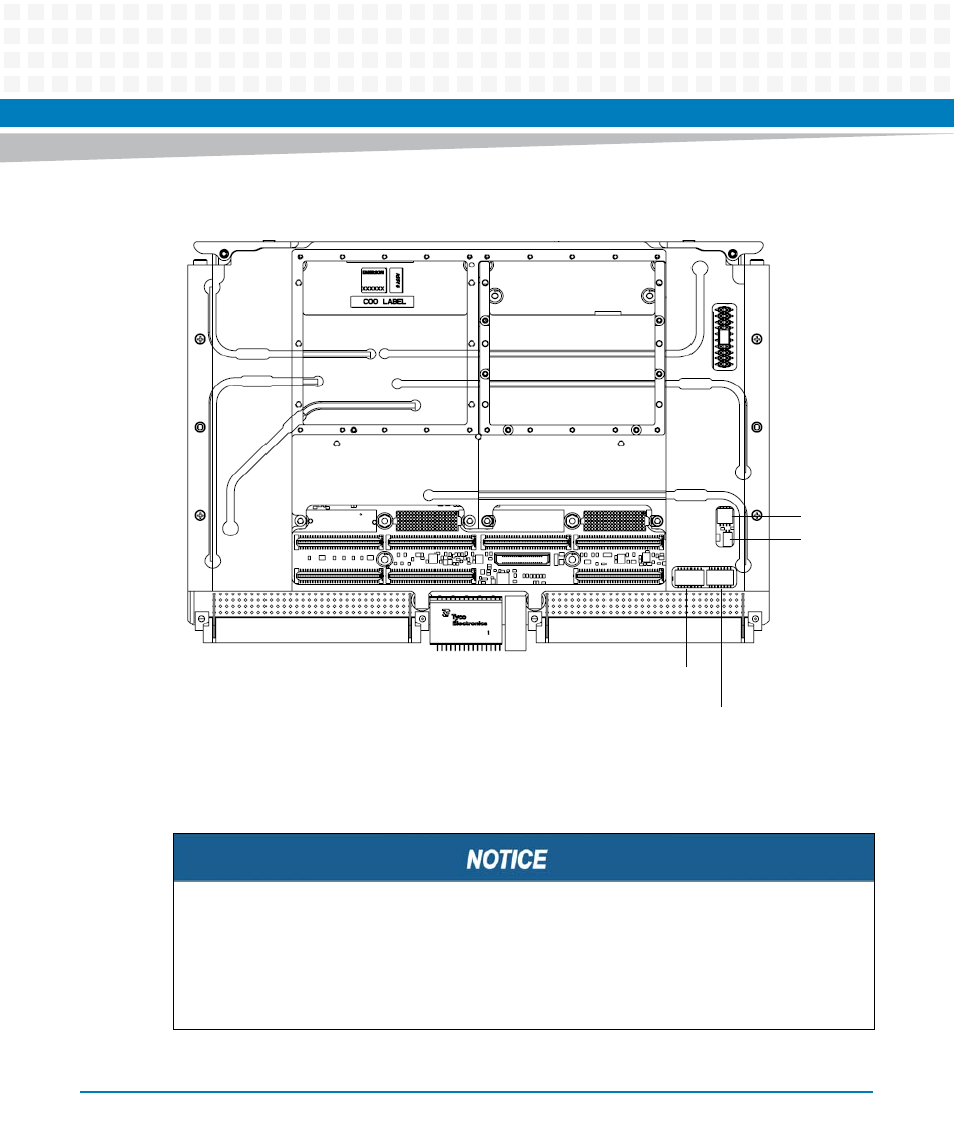

Figure 2-2

Switch Locations (ENP4 Board)

S5 Switch

S4 Switch

S2 Switch

S3 Switch

Board Malfunction
Switches marked as “reserved” might carry production-related functions and can cause the
board to malfunction if their setting is changed.
Do not change settings of switches marked as “reserved”. The setting of switches which are
not marked as “reserved” has to be checked and changed before board installation.
