Page 44

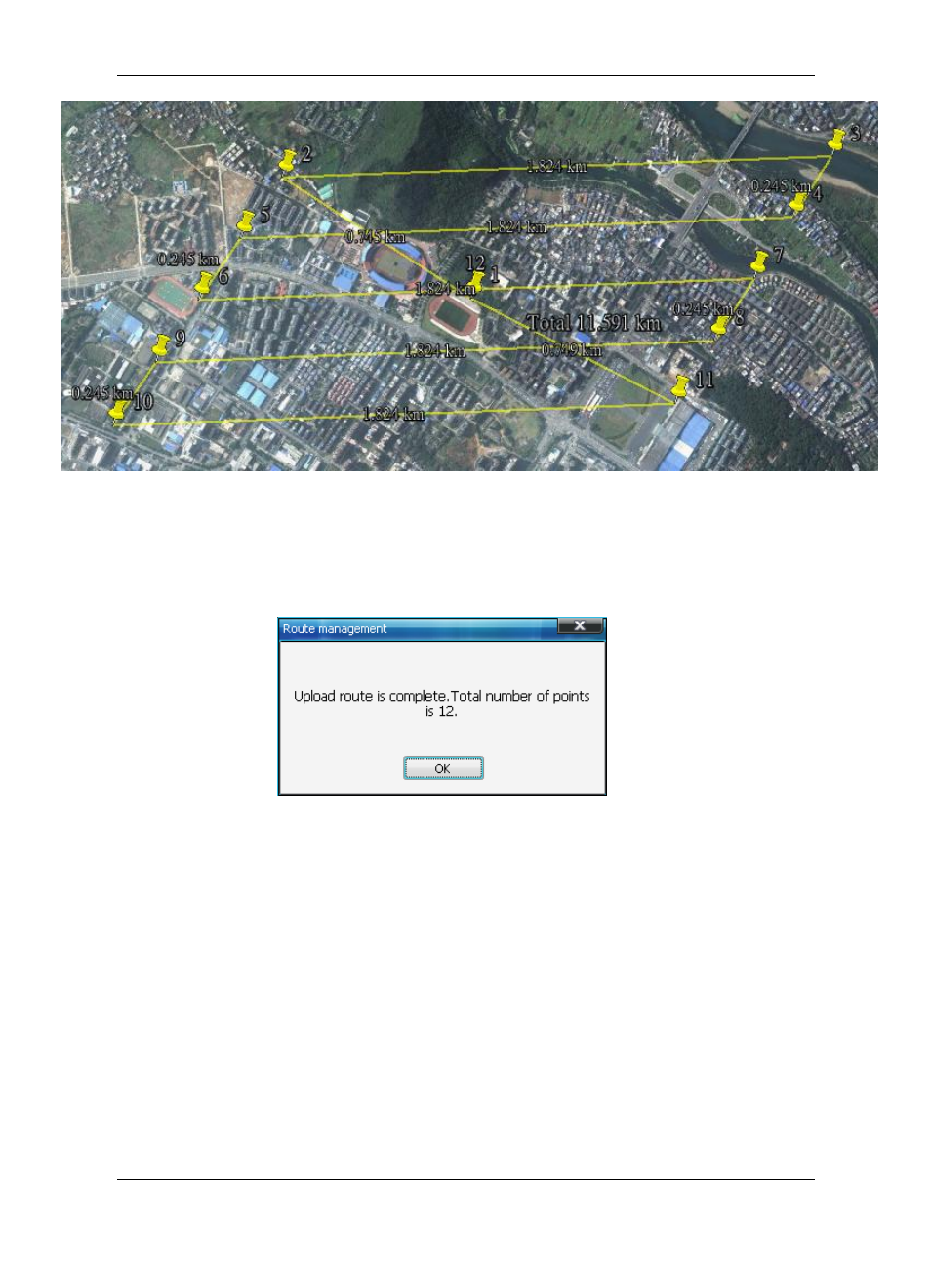

Figure Aerial Route Planning Interface
After route planning completely, please click ―Upload‖ button to upload the route to
the autopilot. After upload the route successfully, it will pop up the following dialog box,
click
― OK ‖ button to confirm.
In order to ensure the waypoint upload with correct information, after uploading,
please clear the current information on the map
via click the ―Clear‖ button. And then
click ―Download‖ button to download waypoints from autopilot, check whether
information of the waypoints are correct. After confirm the information of the waypoints,
please turn to
―Route‖ page in the tool bar , click the ―STORAGE‖ button to save the
route which is upload into autopilot, otherwise data of the route will be lost after power
outage.
 Please don’t click any other buttons when the air route is in the
uploading or downloading status.
