FeiYu Tech FY-Panda2 Autopilot User Manual
Page 14
Guilin Feiyu Electronic Technology Co., Ltd.
Guilin Feiyu Electronic Technology Co., Ltd http://www.feiyu-tech.com [email protected]
Page 11

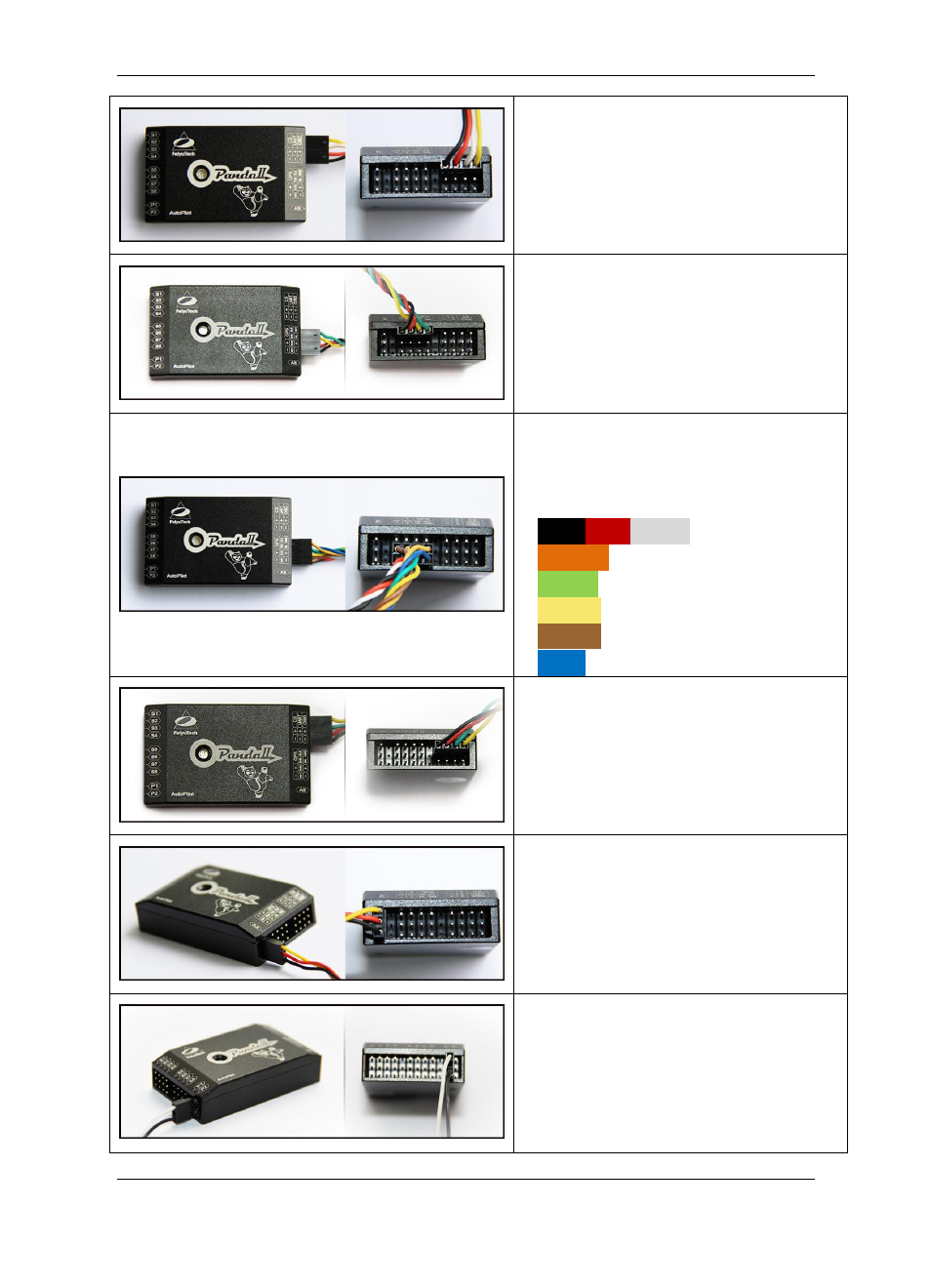

The wire connection about power
management module.
The wire connection about GPS
module.
2*4P RC receiver connecting wires,
use for connect the RC receiver and
Panda Ⅱ ,the wires is arranged by
the colors.
Black Red
White
—— AIL
Orange
—— ELE
Green
—— THR
Yellow
—— RUD
Brown
—— CH5
Blue
——CH6
The FY-602 Data radio connecting
wires.
The Airspeed sensor connecting
wires.
The wire connection about camera
control port P1, white(signal),
black(GND).
