Page 41
upload into autopilot, otherwise waypoints will be lost after power outage.
 Please don’t click any other buttons when the route is in the uploading
or downloading status.
15.1.2 Regional Auto Route Planning
Firstly, set up the ―Line Spacing‖, ―Distance Buffer‖, then select the route direction
(Horizontal please select the ―Select Rect H‖ button, vertical please select the ―Select
Rect V ‖ button). For example, enter 200 meters in the ―Line Spacing‖ edit box and the
―Distance Buffer‖, click the ―Select Rect H ‖, drag left mouse button to select the region

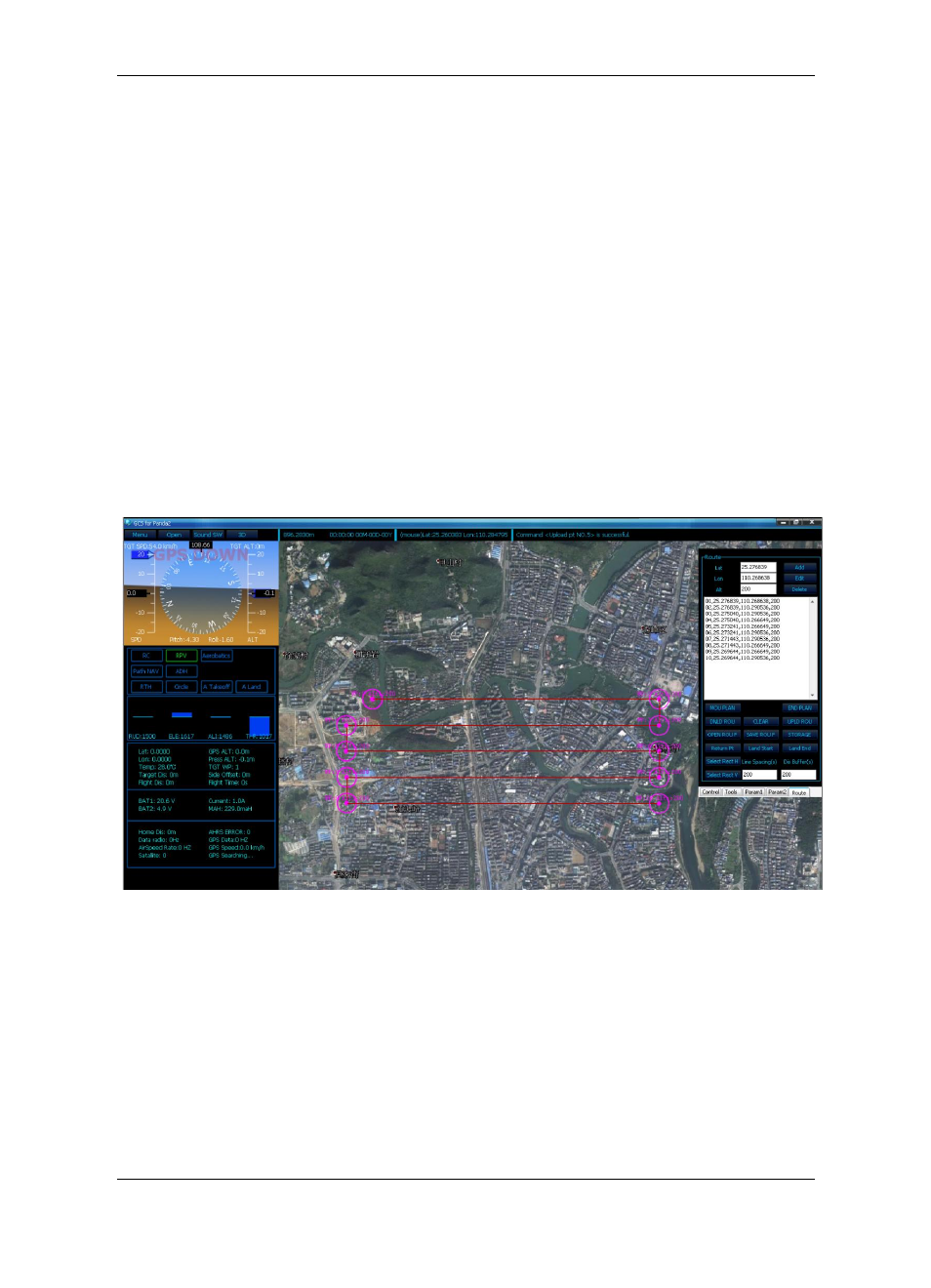

for route planning, the regional route planning interface show as the following. Click
―STORAGE ‖, save the route which is upload into autopilot, otherwise information of the
waypoints will be lost after power outage.
15.2 Route Planning In 3D View
Please ensure that the network is available, start the GCS software and switch to the
3D interface. If the computer have install the Google Earth plug-in, the 3D view will be
display as the picture.
