Page 16

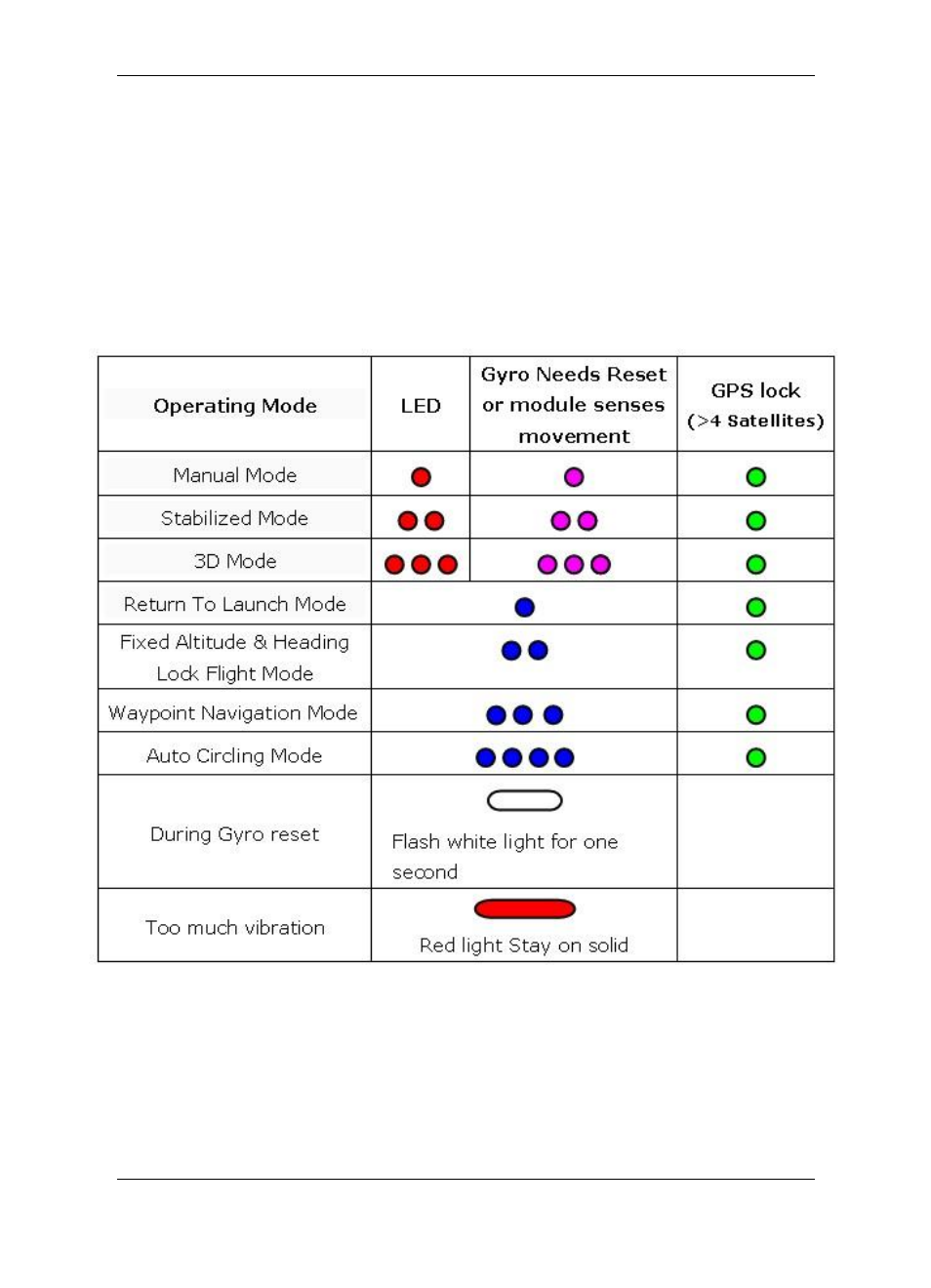

9. PandaⅡ Indicator Light Instruction
LED on the Panda
Ⅱ module can send out red, blue, green and purple light.The
working statue can be know via the different colors which the LED sends out and the
flash frequency. green light flash means GPS location fixed, red and blue light indicate
Panda
Ⅱ working mode. Under manual mode, stabilization mode or 3D mode, keep
Panda
Ⅱ in the static state and if the LED sends out purple light it means PandaⅡ
needs Gyro Reset.
e.g.
Red Manual Mode, GPS not lock
Red
—Red—Green
Stabilized Mode, GPS lock
Purple —Purple—Green Stabilized Mode, GPS lock,
If it stay static means need Gyro Reset.
Blue —Blue—Blue—Green Waypoint Navigation Mode, GPS lock
