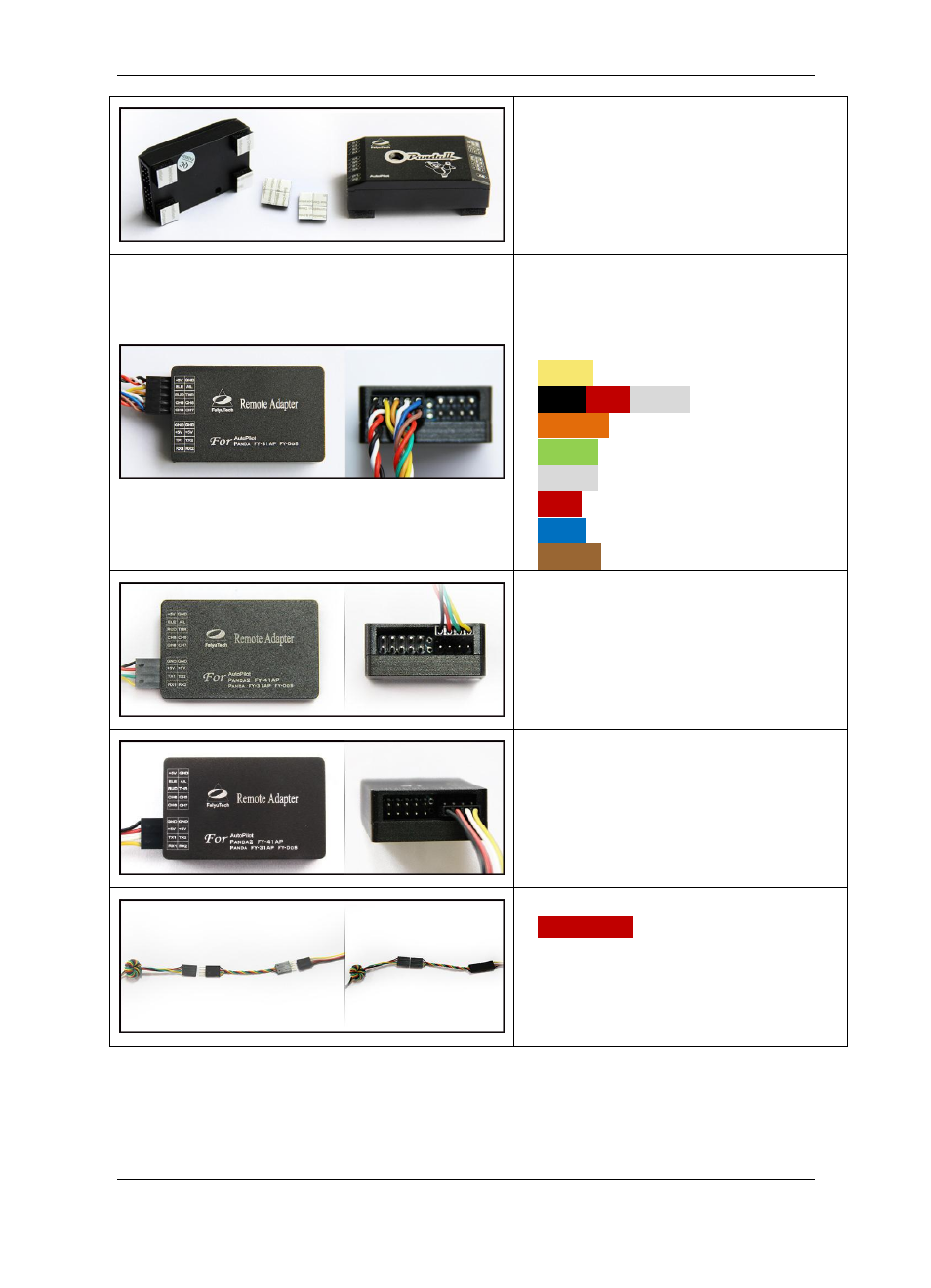

Vibration absorbing pads
(dampers),use for PandaⅡvibration
damping installation.
2*5P RC receiver connecting wires,
use for connect the RC receiver and
Remote Adaptor, the wires is
arranged by the colors.
Yellow
—— AIL
Black Red
White
—— ELE
Orange
—— THR
Green
—— RUD
White
—— CH5
Red
—— CH6
Blue
—— CH7
Brown
—— CH8
The wire connection about Remote
Adaptor and FY-602 Data radio.
The wire connection about Remote
Adaptor and USB data cable.
Attention:
You must use the 4P
crosswire like picture left shows,
when you connect the USB data
cable and FY-602 data radio.
