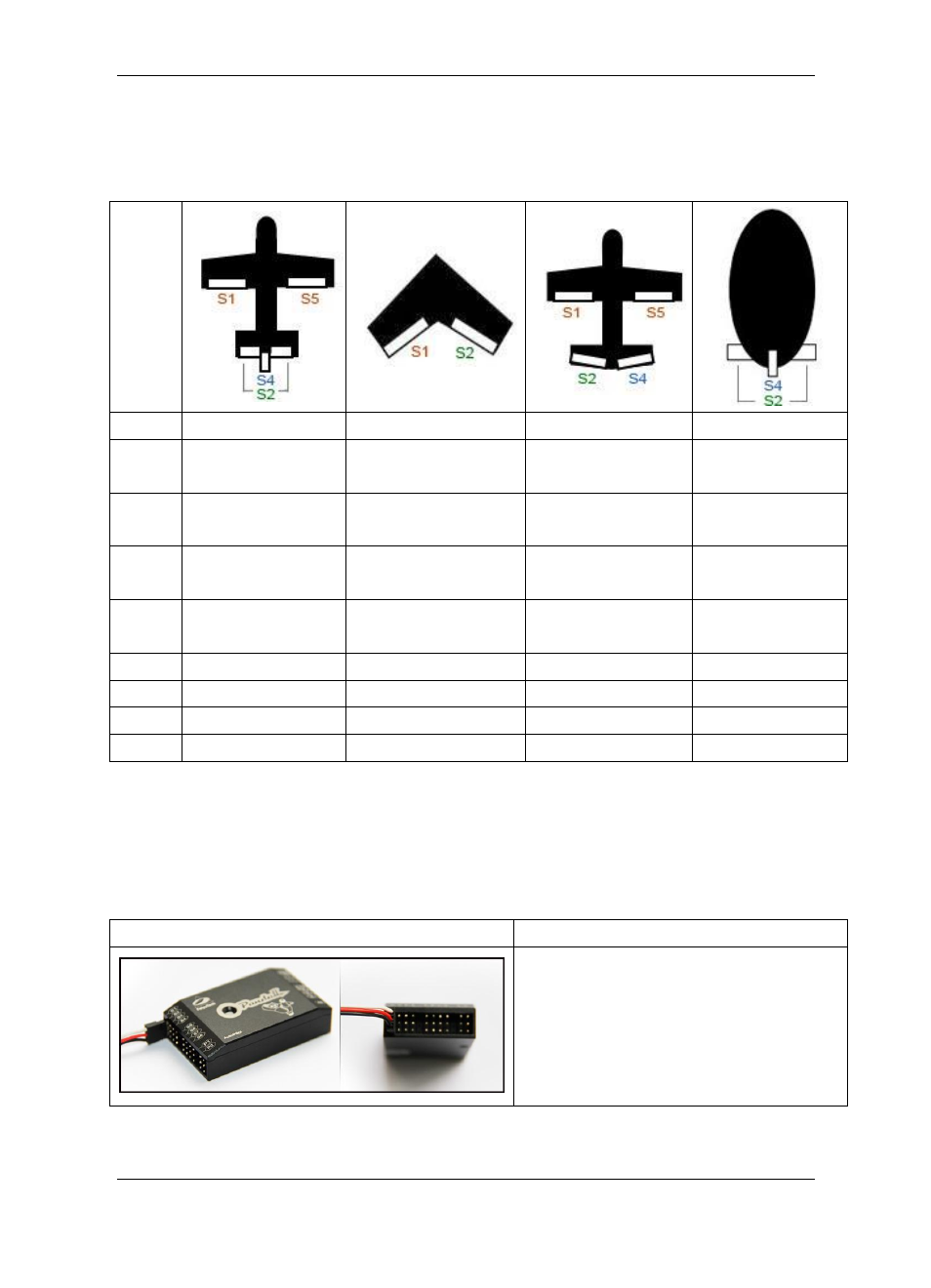

6. S1~S8 Servo Interface Connection Instructions
No.
Type
Traditional
Flying wing
V tail
Airship
S1
Aileron servo 1
Aileron &Elevator mix
control servo 1
Aileron servo 1
Not use
S2
Elevator servo
Aileron &Elevator mix
control servo 2
Elevator &Rudder
mix control servo 1
Elevator servo
S3
Throttle servo/ESC
Throttle servo/ESC
Throttle servo/ESC
Throttle
servo/ESC
S4
Rudder servo
Not use
Elevator &Rudder
mix control servo 1
Rudder Servo
S5
Aileron servo 2
Not use
Aileron servo 2
Not use
S6
Not use
Not use
Not use
Not use
S7
Not use
Not use
Not use
Not use
S8
Not use
Not use
Not use
Not use
7. The Instructions Of Each M
odules’ Connection
Connection Diagram
Institutions
S1 ～ S8 servo connecting wires,
please pay attention to the direction
of signal line .
常规布局
