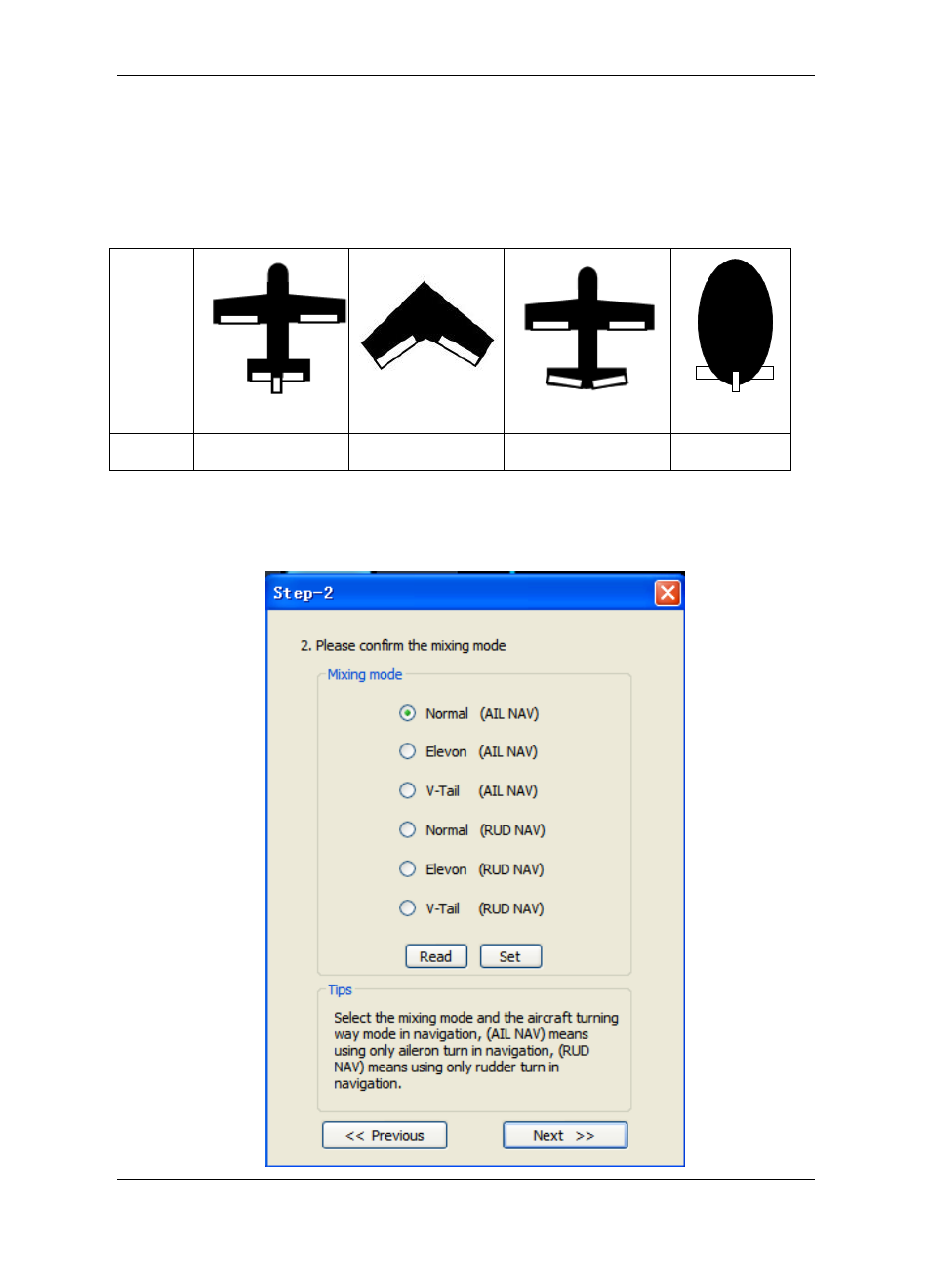

Step Two:
Servo’s output mix control mode setting
Set up the correct mixing mode according to the layout of the aircraft. The default
setting is
‖ Normal (AIL NAV)‖. Click on the button "Set" after you select the correct mixing
mode.
―AIL NAV‖ means using only aileron make a turn in navigation mode.
―RUD NAV‖ means using only rudder make a turn in navigation mode.
No.
Normal
Elevon
V tail
Airship
Option
No MIX
ELE&AIL MIX
ELE&RUD MIX
No MIX
