LNS Programmer's Guide
305

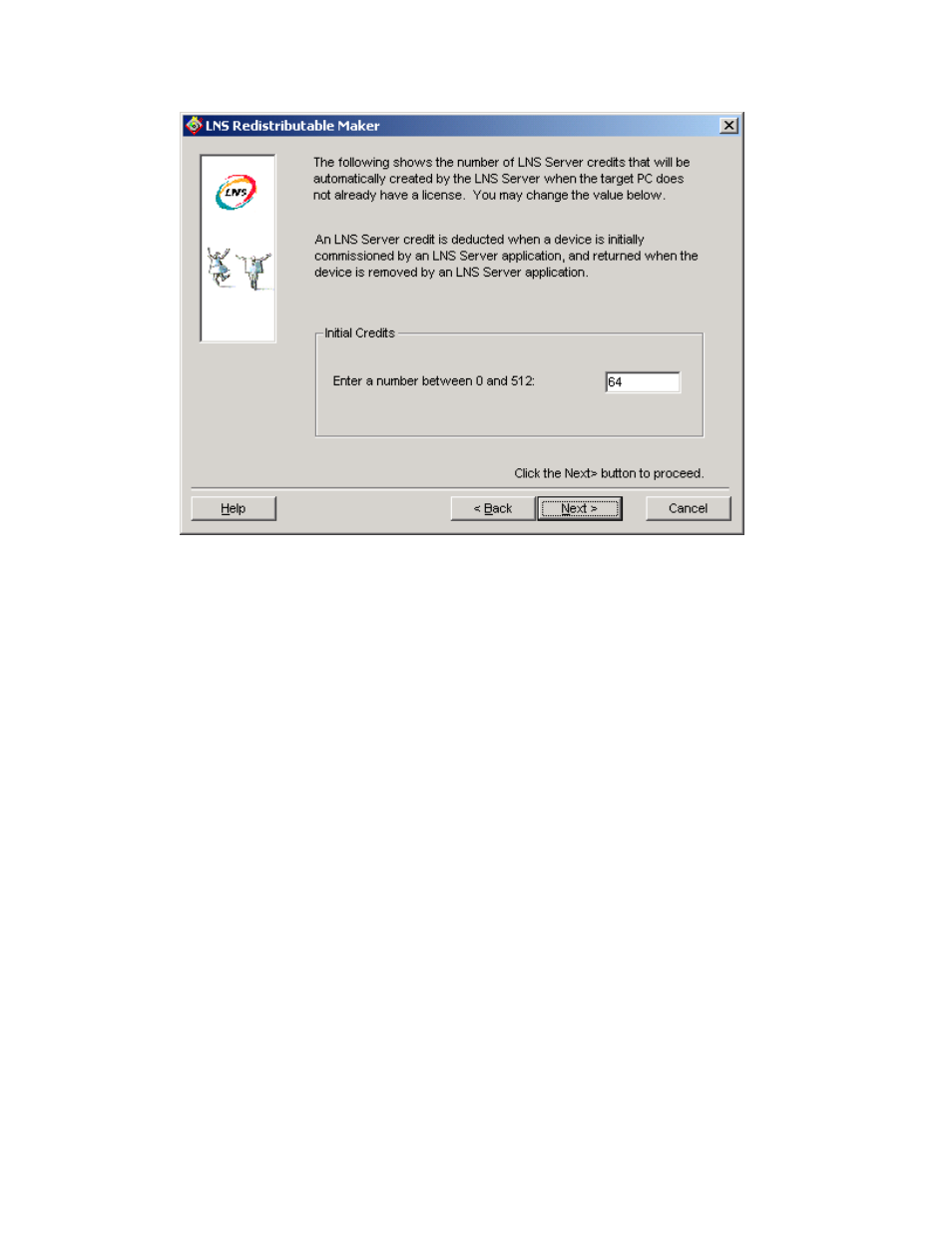

Figure 14.4 Initial Credit Selection Dialog
4. The LNS Redistributable Maker can allocate a number of LNS Device Credits to
be available to the LNS Server installed with your application. Use the dialog
shown in figure 14.4 to determine how many LNS Device Credits will be
available. Once the LNS Server redistributable package is installed and
registered with a Type 3 license, the LNS Device Credits allocated in this step
will be enabled for the user.
Additional LNS Device Credits can be added by end-users using the LNS Server
License Wizard after they have installed and registered the product with a Type
3 license. Note that if the LNS Server redistributable files are installed on a PC
that already has an LNS Server license, the initial LNS Device Credits specified
in this dialog box will be disregarded, not added to the license on that end-user’s
PC.
Click Next to continue. This opens the dialog shown in Figure 14.5.
