C-PRO NANO RACK E C-PRO MICRO RACK APPLICATION MANUAL
Page 25

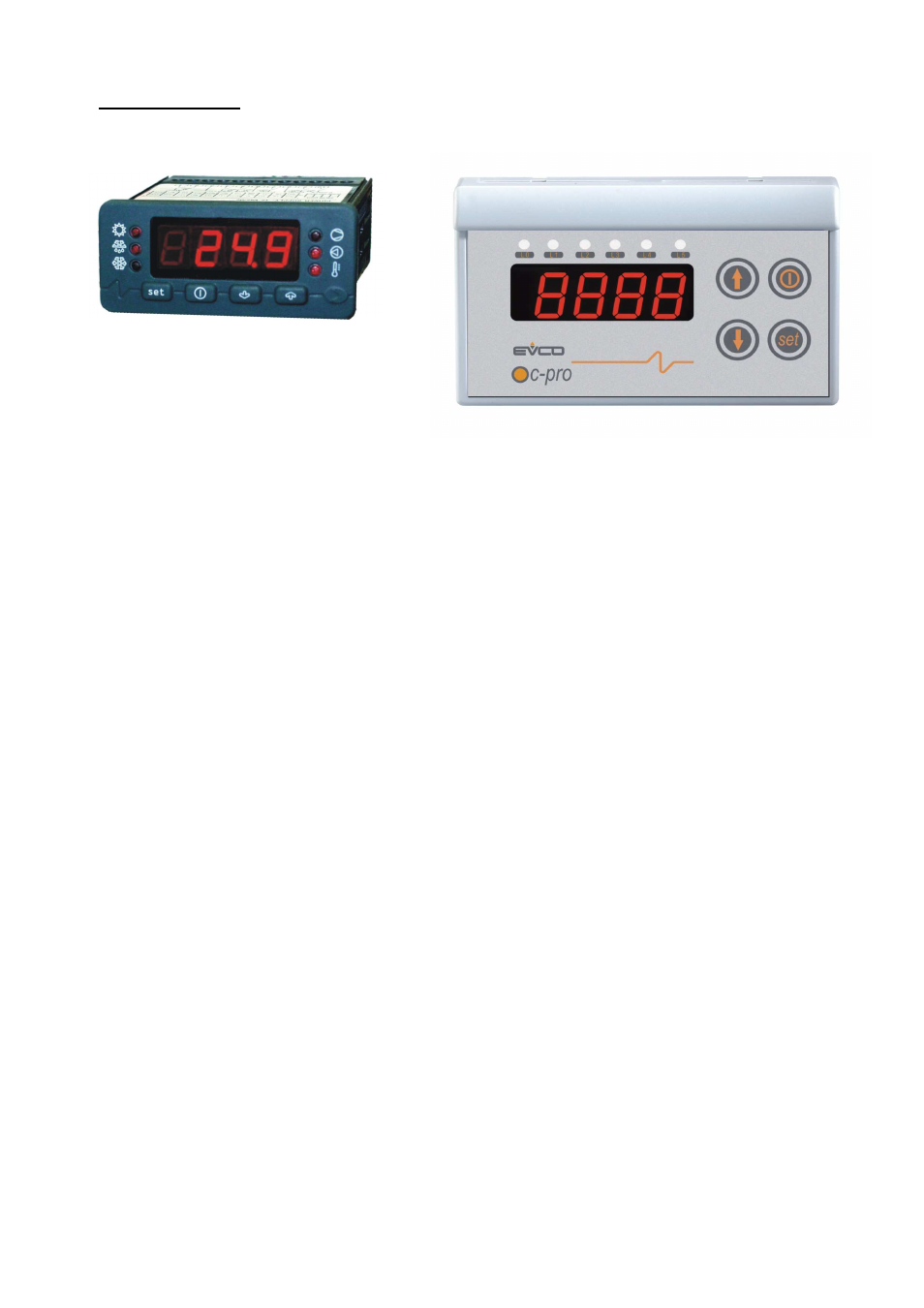

Remote terminals
V LEDi
Panel version
V WALL
Wall version
In the keyboard there are 4 keys for pages navigation and values editing with the following meaning:
- UP and DOWN: parameters modification in editing; otherwise shift of the cursor. UP key, if it is
pressed for about 2 seconds during the display of an alarm, allows the alarm reset. If it is pressed it
makes all the active alarms shift, otherwise it shows the “none” default word in order to signalize the
absence of alarms.
-
SET / ENTER: value confirmation in editing; otherwise entering of controls possibly associated
to the text where there is the cursor. ENTER key, if it is pressed for about 2 seconds, allows to enter the
main menu.
- STAND-BY / ESC: cancellation of the value in editing; otherwise default page request possibly
associated to the current page.. ESC key, if kept pressed for about 2 seconds, allows to switch on/freeze
the machine. If we press it in the main page, it allows to enter the list of all the active alarms.
The following leds are also used:
:
- L1 = summer led: it identifies the status of circuit 1 (TN).
Switched off: circuit switched off or in stand-by
Switched on: the circuit requires power
Flashing slowly: circuit switched off by digital input
Flashing fastly: circuit switched off by supervisor
- L3 = winter led: it identifies the status of circuit 2 (BT).
Switched off: circuit switched off or in stand-by
Switched on: : the circuit requires power
Flashing slowly: circuit switched off by digital input
Flashing fastly: circuit switched off by supervisor
