C-PRO NANO RACK AND C-PRO MICRO RACK APPLICATION MANUAL
Page 13
2.6 Application 3b: use of C-PRO MICRO RACK with expansion of I/O
C-PRO EXP MICRO (bi-circuit compressor pack with separated
condensation).
According to default setting, C-PRO MICRO RACK is configured to manage monocircuit compressor packs ;

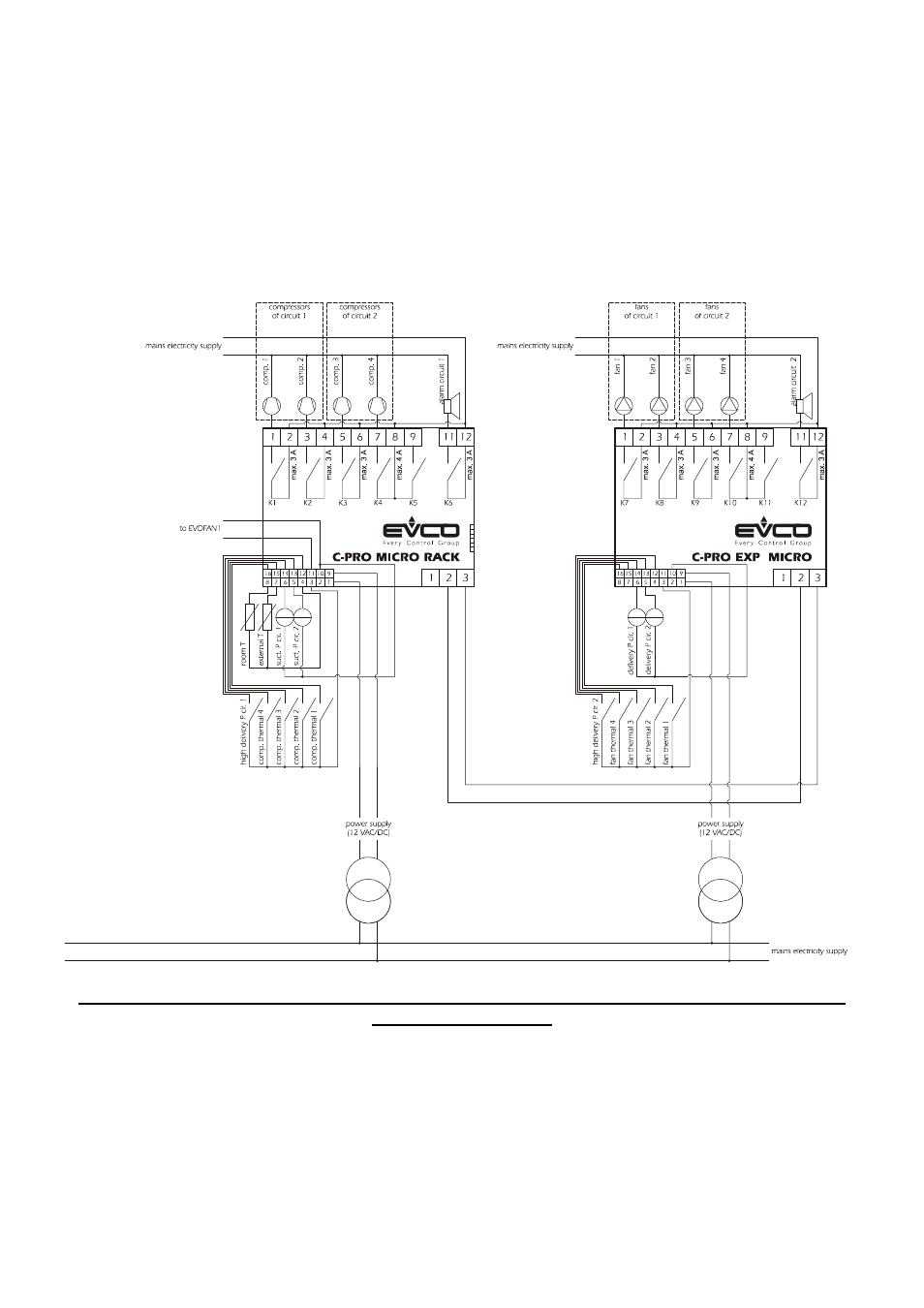

the uses shown in the drawing below refer to an example of bi-circuit compressor pack with separated
condensation.
The power supplies of C-PRO MICRO RACK and of C-PRO EXP MICRO must be galvanically
insulated among them.
