C-PRO NANO RACK AND C-PRO MICRO RACK APPLICATION MANUAL

Page

2.5

Application 3a: use of C-PRO NANO RACK with expansion of I/O
C-PRO EXP MICRO (bi-circuit compressor pack with separated
condensation).

According to default setting, C-PRO MICRO NANO is configured to manage monocircuit compressor packs ;

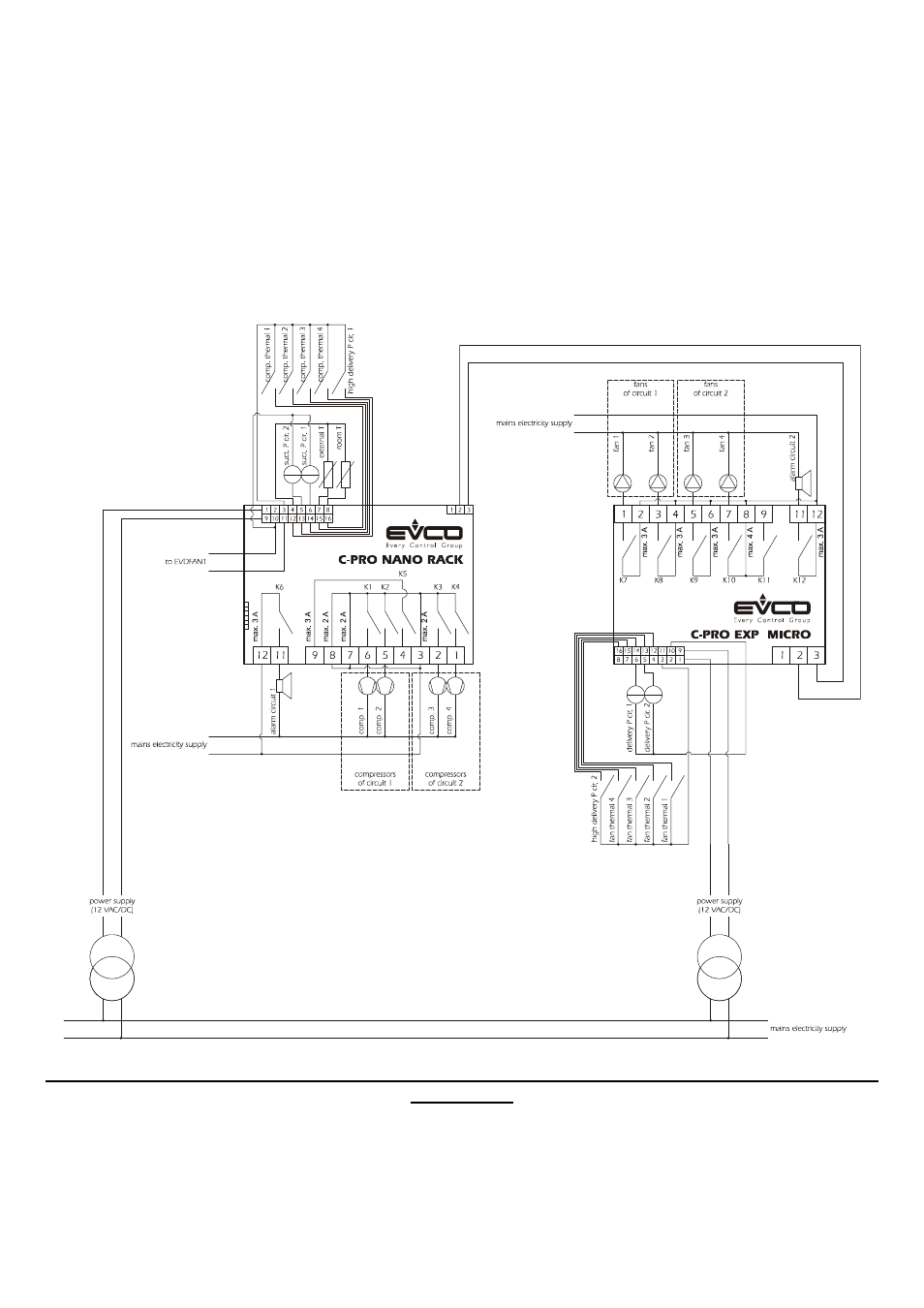

the uses shown in the drawing below refer to an example of bi-circuit compressor pack with separated
condensation.

The power supplies of C-PRO NANO RACK and of C-PRO EXP MICRO must be galvanically insulated

among them.
