C-PRO NANO RACK E C-PRO MICRO RACK APPLICATION MANUAL
Page 22
4 USER INTERFACE
4.1 Display and keyboard
There are two interface typologies for the application:
⋅
a 4 display interface with 7 Built-In segments.
⋅
a remote 4 display interface with 7 segments.
They both have 4 keys for navigation/editing of the pages and they are different in the display through icons
(built-in) or in the display through led (remote) of some associated sites.
For both typologies there will be a description of the keys and of the leds used by the application, in fact,
according to the interface used, it is possible to manage a different quantity of keys and leds.

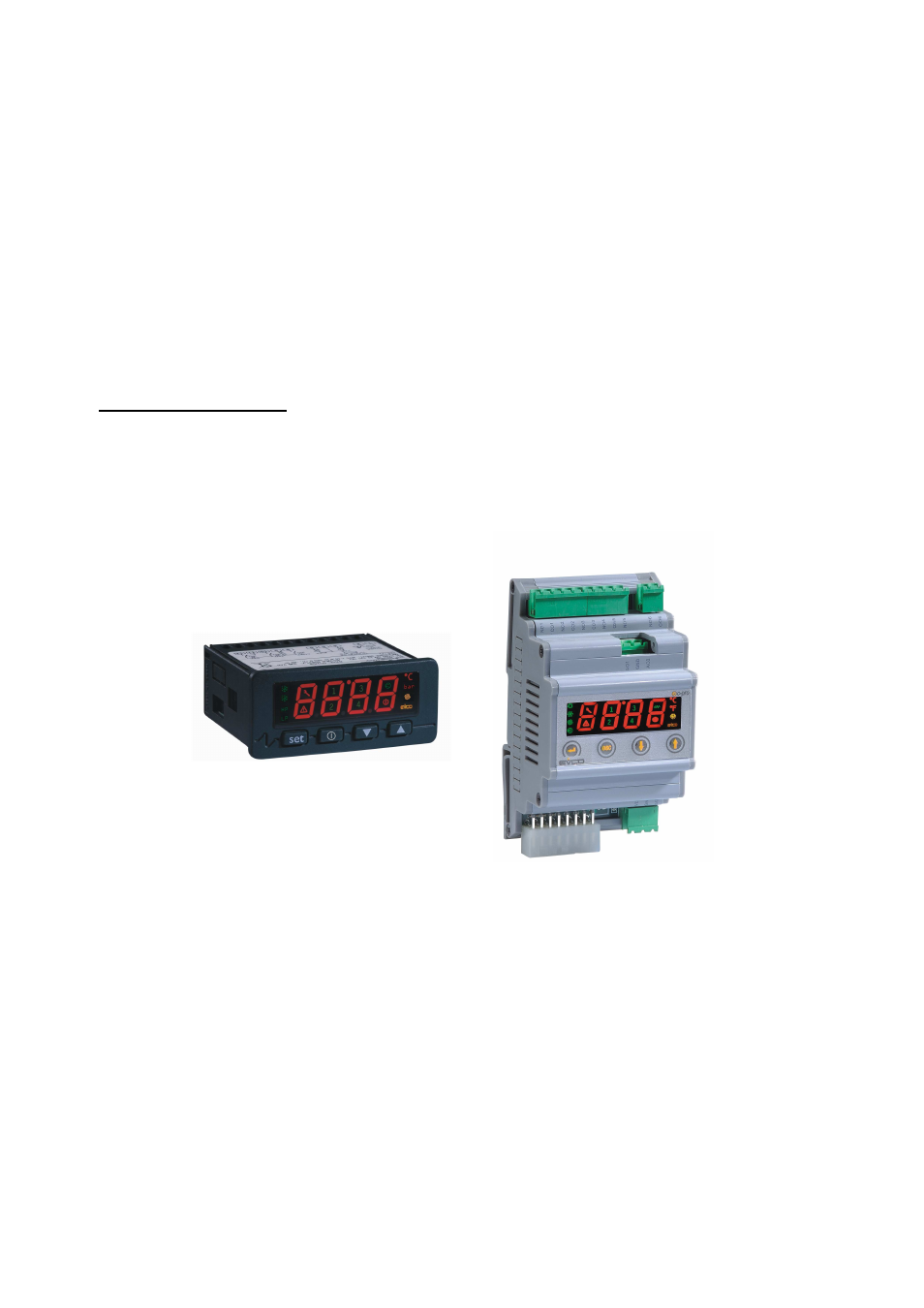

Local Built-In interface
The built-In interface is integrated directly in the control unit used.
C-PRO NANO RACK
C-PRO MICRO RACK
Built-in version
