80 - Redundant Ring Information RocketLinx ES7510 User Guide: 2000544 Rev. B
Configuration Using the Web Interface
Redundant Ring Information
This page shows Redundant Ring information.

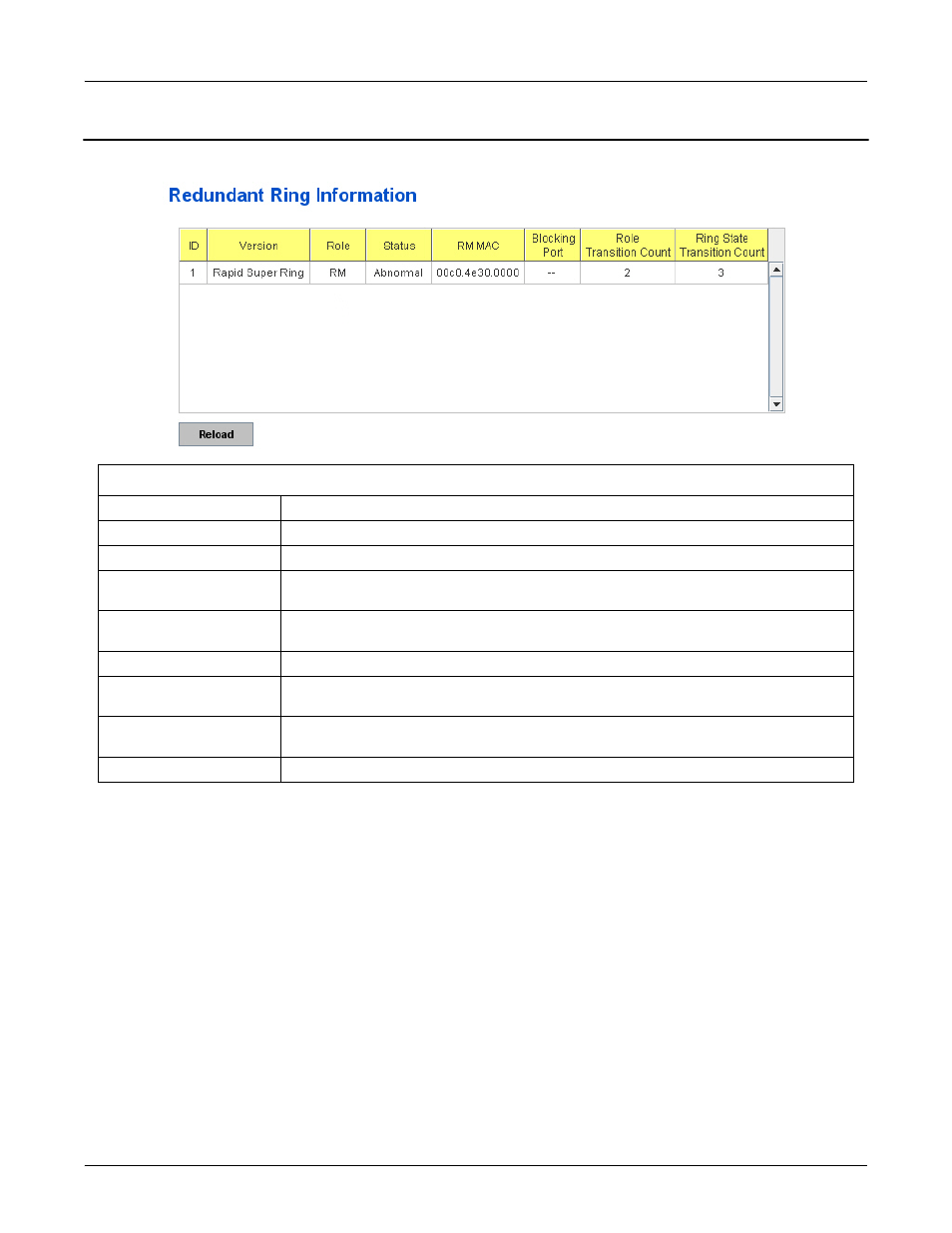

Redundant Ring Information Page
ID The Ring ID.
Version Displays the ring version, this field could be Super Ring or Rapid Super Ring.
Role This ES7510 is the RM (Ring Master) or nonRM (non-ring master).
Status
If this field is Normal it means the redundancy is approved. If any one of the
link in this Ring is broken, then the status is Abnormal.
RM MAC
The MAC address of Ring Master of this Ring. It helps to find the redundant
path.
Blocking Port Shows which is blocked port of RM.
Role Transition Count
Shows how many times this ES7510 has changed its Role from nonRM to RM
or from RM to nonRM.
Role state Transition
Count Shows how many times the Ring status has been transformed between
Normal and Abnormal state.
Reload Click to reload redundant ring information.
