Comtrol ES7510 - Manual (Page 54)

54 - Restore the Configuration - TFTP Server Method RocketLinx ES7510 User Guide: 2000544 Rev. B
Configuration Using the Web Interface
The backup file is located in the same directory that the TFTP server resides.
Restore the Configuration - TFTP Server Method
To restore a configuration file, you must open a TFTP server and disable the Windows firewall. If necessary,
use
Start the TFTP Server on Page 51 and Disable the Windows Firewall on Page 52.
The backup file must be located in the same directory that the TFTP
server resides for this procedure to work.

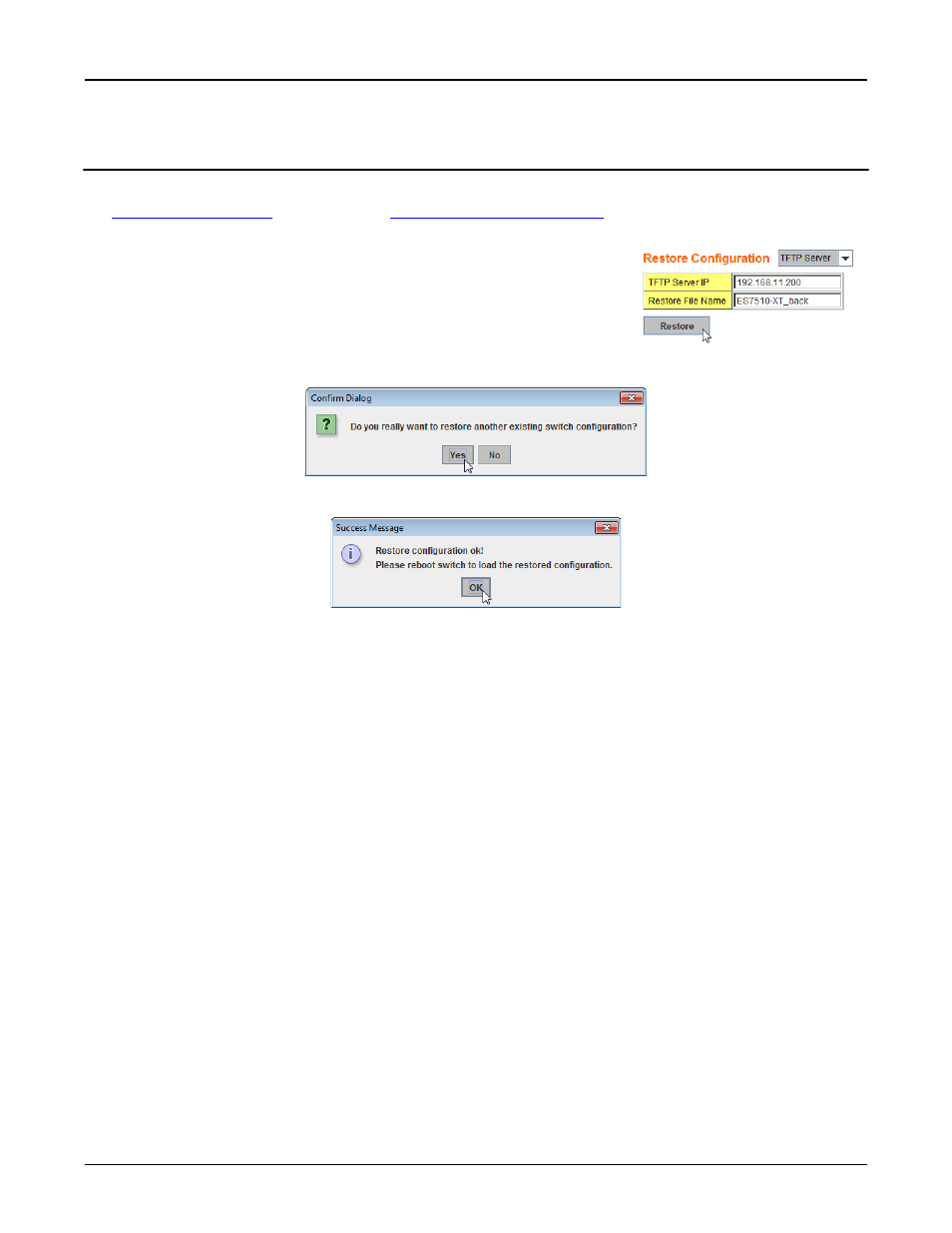

1. Open the web user interface for the ES7510, open the Backup and
Restore page under Basic Settings.
2. Select TFTP Server for the Restore Configuration, enter the IP
address of the TFTP server, enter the Backup File Name, and click
the Restore button.
3. Click Yes to the Confirm Dialog message.
4. Click Ok to the Success Message.
Note: Make sure that you enable your Windows firewall when you have completed these tasks.
