Comtrol ES7510 User Manual
Page 65
RocketLinx ES7510 User Guide: 2000544 Rev. B
PoE Control - 65

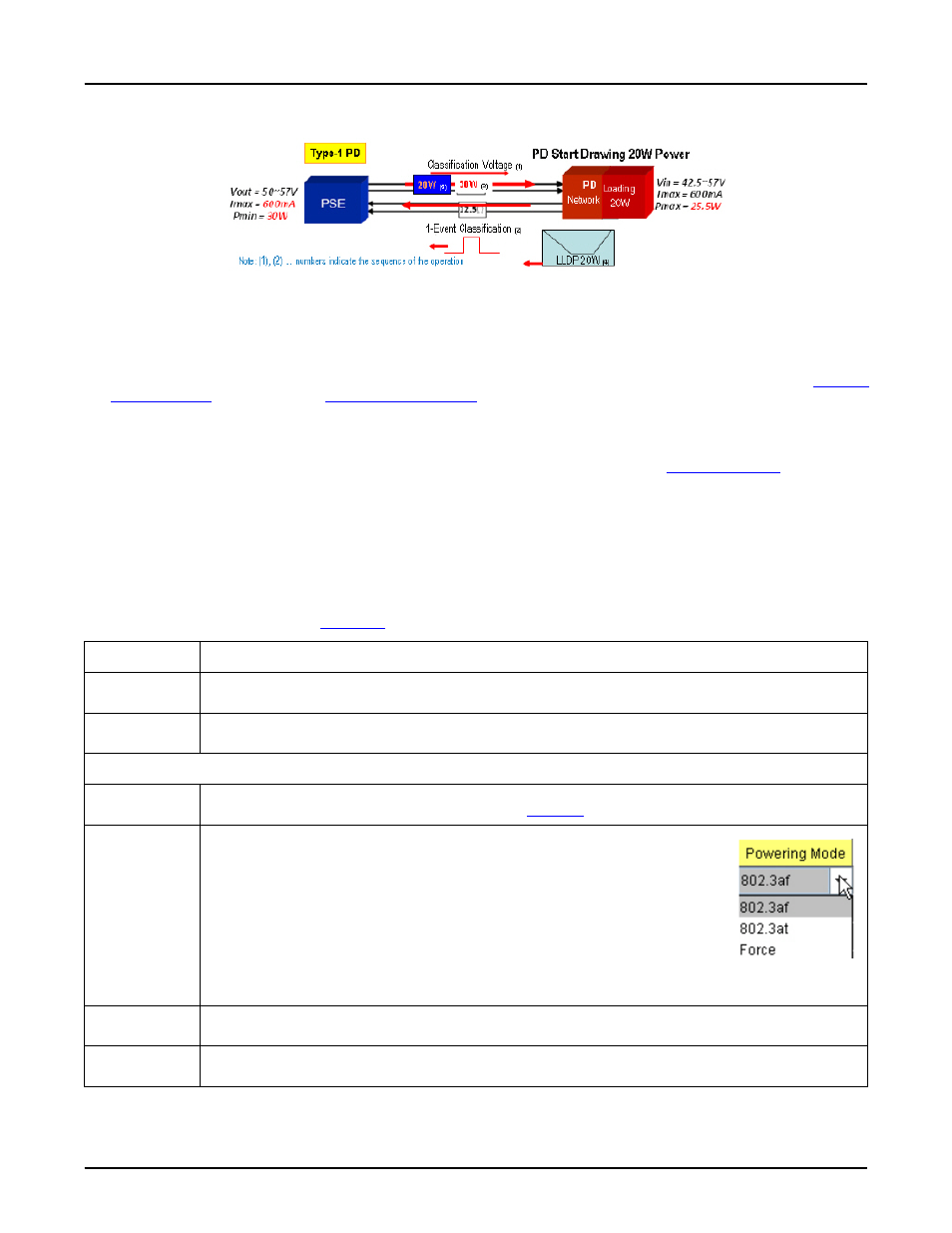

Configuration Using the Web Interface
You can use these steps to configure PoE settings. Refer to the following table if you need more detailed
information.
1.
Set the Power Budget.
The Power Budget range is 0-220W. This budget must be less than the input power.
2.
Optionally, set a Power Budget Warning Level so that the ES7510 sends a warning event. See
on Page 113 for more information.
3.
Click Apply.
4.
Select the appropriate PoE Mode (Enable, Disable, or Schedule) for the corresponding port.
Note: If you select Schedule, you must also configure the port or ports using
5.
Select the appropriate Powering Mode (802.3af, 802.3at, or Force for the PD that you plan on
attaching to the corresponding port.
6.
Select the Power Budget Mode (Auto or Manual).
7.
Enter a valid Power Budget based on the attached power supply.
8.
Click Apply.
9.
If desired, set up PD Status Detection.
10. You must Save the settings (
), if you want maintain these settings if the ES7510 is powered off.
PoE Control
Description
Power Budget
(W)
The output power range is 0 - 220W. The default is 0, which is the same as disabling PoE on
the ES7510.
Power Budget
Warning Level
If the power utilization is more than the warning level, the ES7510 sends a warning event.
The range is 0-100%. 0 is disabled.
Port Configuration
PoE Mode
You can select Disable, Enable, or Schedule for PoE mode for each port. Select Schedule
to enable the port in the PoE Schedule page (
Powering
Mode
Use this mode to change the Powering Mode to one of the following:
•
802.3af 15.4W power output ability that follows IEEE 802.3af
behaviors.
•
802.3at 30W power output ability that follows IEEE 802.3af and
IEEE 802.3at 1-Event plus LLDP behaviors.
•
Force Without classification, this directly forwards power. The
output power is limited by the value that you configure.
Note: Use caution when using Force mode. Do not connect a standard
Ethernet device if using Force mode, it will damage the device.
Power Budget
Mode
The PoE port will not execute classification behavior and the power limit is referred to the
each port’s power budget.
Power Budget
(W)
The power supply output ability which is installed with PoE Switch. It pops-up a warning
message when the PoE port setting is over the system power supply output ability.
