Backup and Restore

Use the Backup option to save the current configuration saved in
the ES7510 flash to a PC/laptop or a TFTP server.

This allows you to use the Restore option to restore a
configuration file back to the ES7510 or load the same settings to
another ES7510. Before you can restore a configuration file, you
must save the backup configuration file in the PC or TFTP server.
The ES7510 then downloads this file back into the flash.

The ES7510configuration file is a standard text file. You can open
the file with Word or Notepad. You can also modify the file, add/
remove the configuration settings, and then restore the file back to
the ES7510.

There are two modes to backup and restore the configuration file:

•

Local File

Backup the Configuration - Local File Method

on Page 49

Restore the Configuration - Local Method

on Page 50

•

TFTP Server

Backup the Configuration - TFTP Server Method

on Page 51

Restore the Configuration - TFTP Server Method

on Page 54

You can use the Local File method if you have a Windows XP system.

If you have Windows Server 2003 through Windows 7, you must use the TFTP Server method to backup or
restore configuration files.

DHCP Option82 Relay Agent

Circuit-ID

Default: Default value of the Circuit-ID.

Port: Port of the ES7510.

Circuit ID: Custom of the Circuit-ID.

Remote-ID

Default: Default value of the Remote-ID

IP Address: IP Address of the Switch

Remote ID: Custom of the Remote-ID

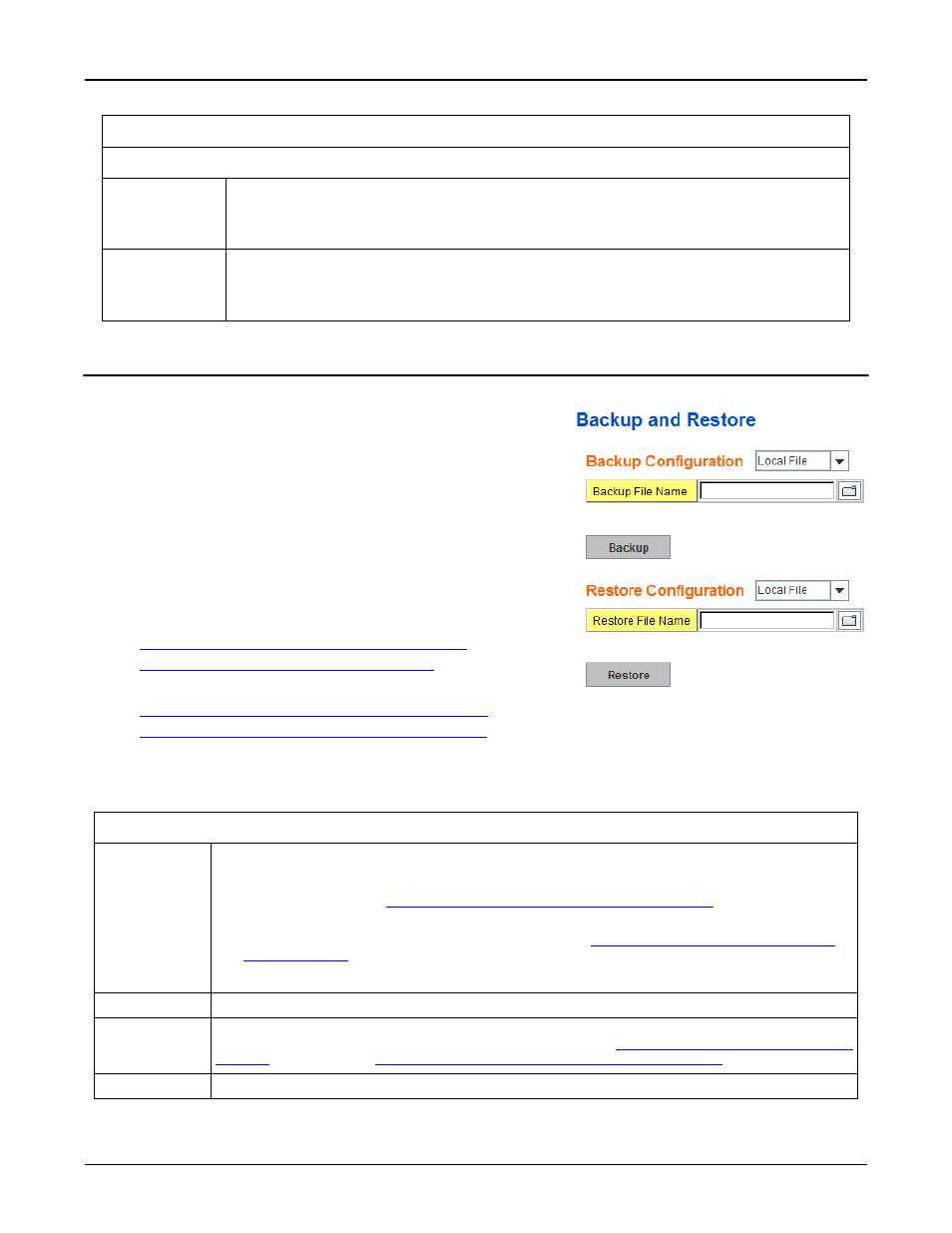

Backup & Restore Page

Backup
Configuration

•

Local File: The ES7510 acts as the file server in Windows XP. Other Windows
operating systems must use the TFTP method. This mode is only provided by the
web user interface as the backup and restore functions are not supported by the CLI.
For procedures, see

Backup the Configuration - Local File Method

on Page 49.

•

TFTP Server: The ES7510 acts as a TFTP client. This mode can be used in both the
CLI and web user interface. For procedures, see

Backup the Configuration - TFTP

Server Method

on Page 51.

Note: Pointing to the wrong file causes the entire configuration to be skipped.

Backup

Backup can only backup the configuration file to your PC or a TFTP server.

Restore
Configuration

You can select local file in Windows XP or TFTP server in all Windows operating systems
to restore the startup configuration. For procedures, see
