USER MANUAL

AERCO/ProtoNode Gateway

OMM-0080_0D

AERCO International, Inc.

• 100 Oritani Dr. • Blauvelt, New York 10913 • Phone: 800-526-0288

VD2:011712
1

GF-129

5. INSTALL AND RUN THE UTILITY SOFTWARE TO SETUP IP ADDRESS FOR BACNET/IP

• Download the RUINET Utilities from the ProtoCessor web site (under Tech Support – Utilities –

Utilities Software – Install.zip) or access the page at:

http://www.protocessor.com/tech_support/Design_Documents.html#US

• Run Install.zip and follow the installation instructions
• Once installed, the FieldServer Utilities can be located in the Windows Start menu as a desktop icon

5.1 Connect the PC to the ProtoNode via the Ethernet port

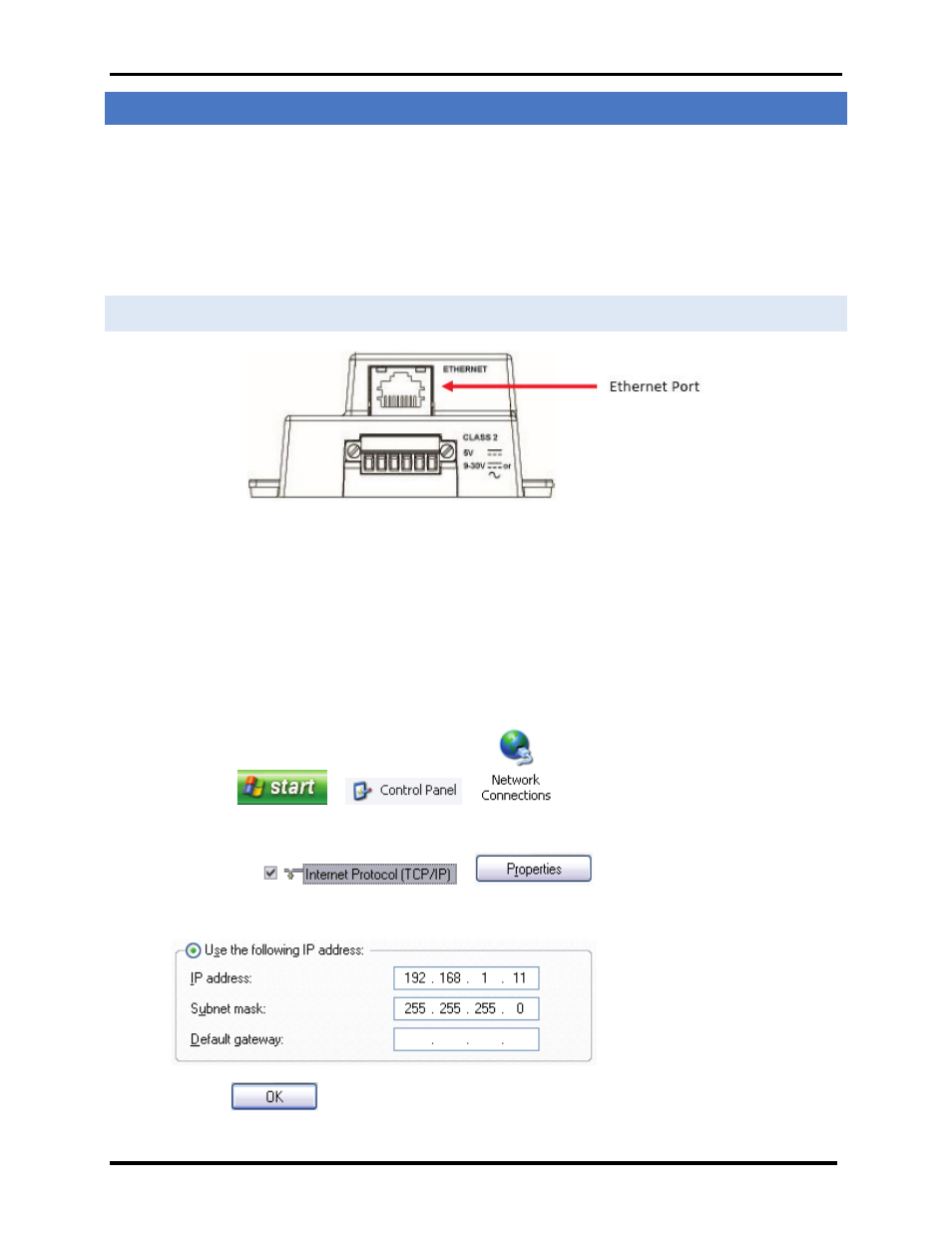

Figure 11. Ethernet port location of ProtoNode

• Disable any wireless Ethernet adapters on the PC/Laptop

• Disable firewall and virus protection software

• Connect a standard cat5 Ethernet cable between the PC and ProtoNode.

• The Default IP Address of the ProtoNode is 192.168.1.24, Subnet Mask is 255.255.255.0. If the PC and

the ProtoNode are on different IP Networks, assign a static IP Address to the PC on the 192.168.1.xxx
network.

• Go to

>

>

• Right-click on Local Area Connection > Properties

• Highlight

>

• Select: Use the following IP address

• Click

twice

• Go to Start > Programs > Field Server Utilities > Ruiping Utility
