2.3.3.2 ProtoNode RER: S0 – S3 and A1-A8 DIP Switch Locations
The S-Bank DIP switches are accessible through the top cover. However, the cover must be
removed to access the A1 through A8 switches. To remove the cover, pull it from the unit while
holding onto the 6 pin Phoenix connector.
IMPORTANT!
Do not hold the wall mount tabs when removing the cover as these
are designed to break off if not required!

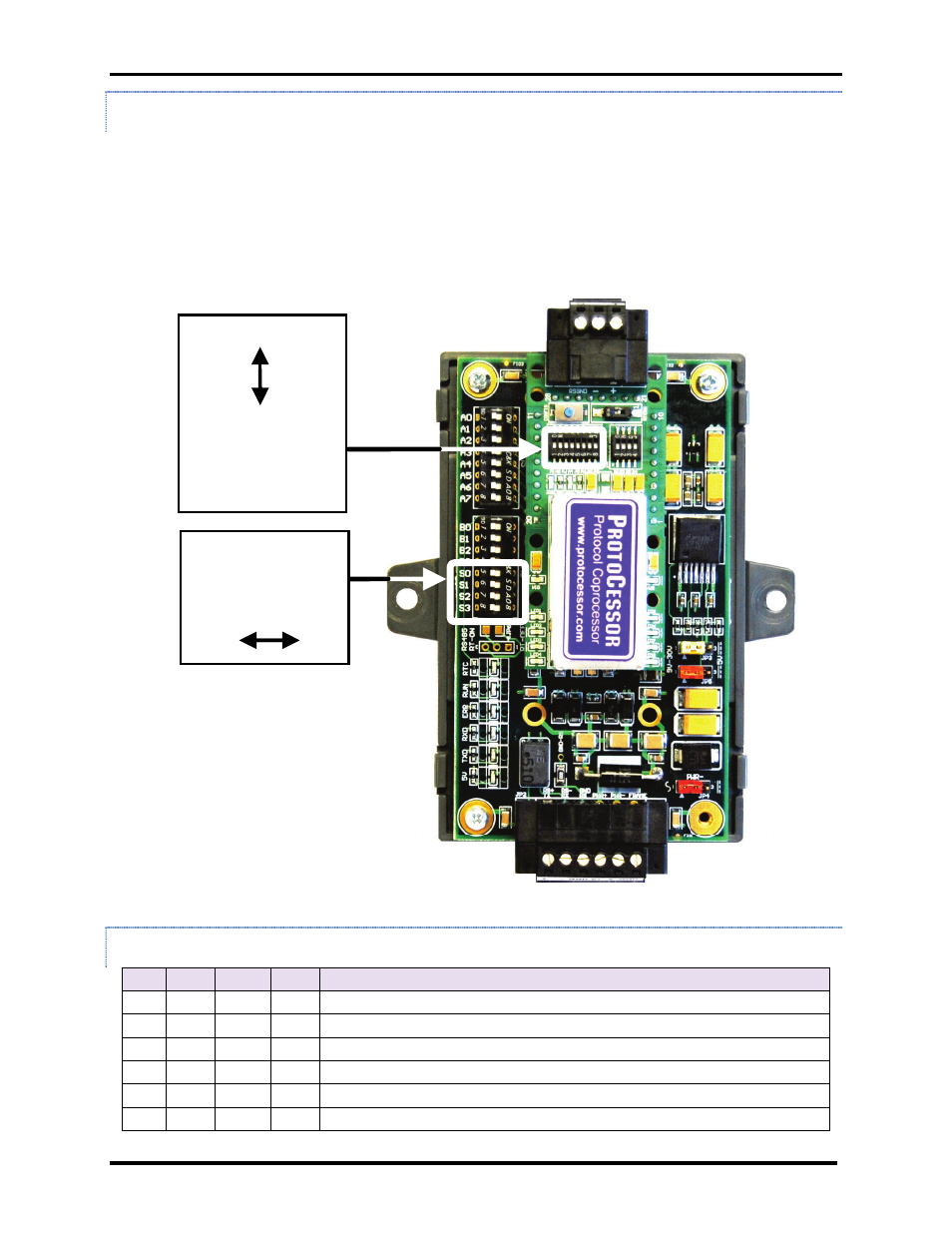

Location of DIP Switches S0 – S3 and A1-A8
2.3.3.3 ProtoNode LER: S0 – S3 DIP Switch Configuration Settings
S0 S1 S2 S3 Profile
Off Off Off Off 1 ACS/BMS II/BMS, 4 C-More Controlled Boilers
On Off Off Off 1 ACS/BMS II/BMS, 8 C-More Controlled Boilers
Off On Off Off 1 ACS/BMS II/BMS, 12 C-More Controlled Boilers
On On Off Off 1 ACS/BMS II, 4 Modulex Boilers With BCMs
Off Off On Off 4 ECS/SP Systems
On Off On Off 12 C-More, 6 ECS/SP, 4 Modulex and 2 ACS/BMS II
A1 - A8 DIP
Switches
S-Bank DIP
Switches
(S0, S1, S2, S3)
ON OFF
ON
OFF
