4-27
4.5 Protected field modes
4 Function Description
4.5.3 Back gauge protected field mode
Back gauge protected field mode 4- Funktion_Schutzfeldmodus_Anschlag
With back gauge protected field mode, the rear segments of the protect-
ed field are blanked. This protected field mode is used when the rear
back gauge extends into the vicinity of the bending line. Interruption of
the rear segments is to be expected and does not cause the press
stroke to stop.
If the front and central segments of the protected field are interrupted,
the OSSDs switch to the OFF state.

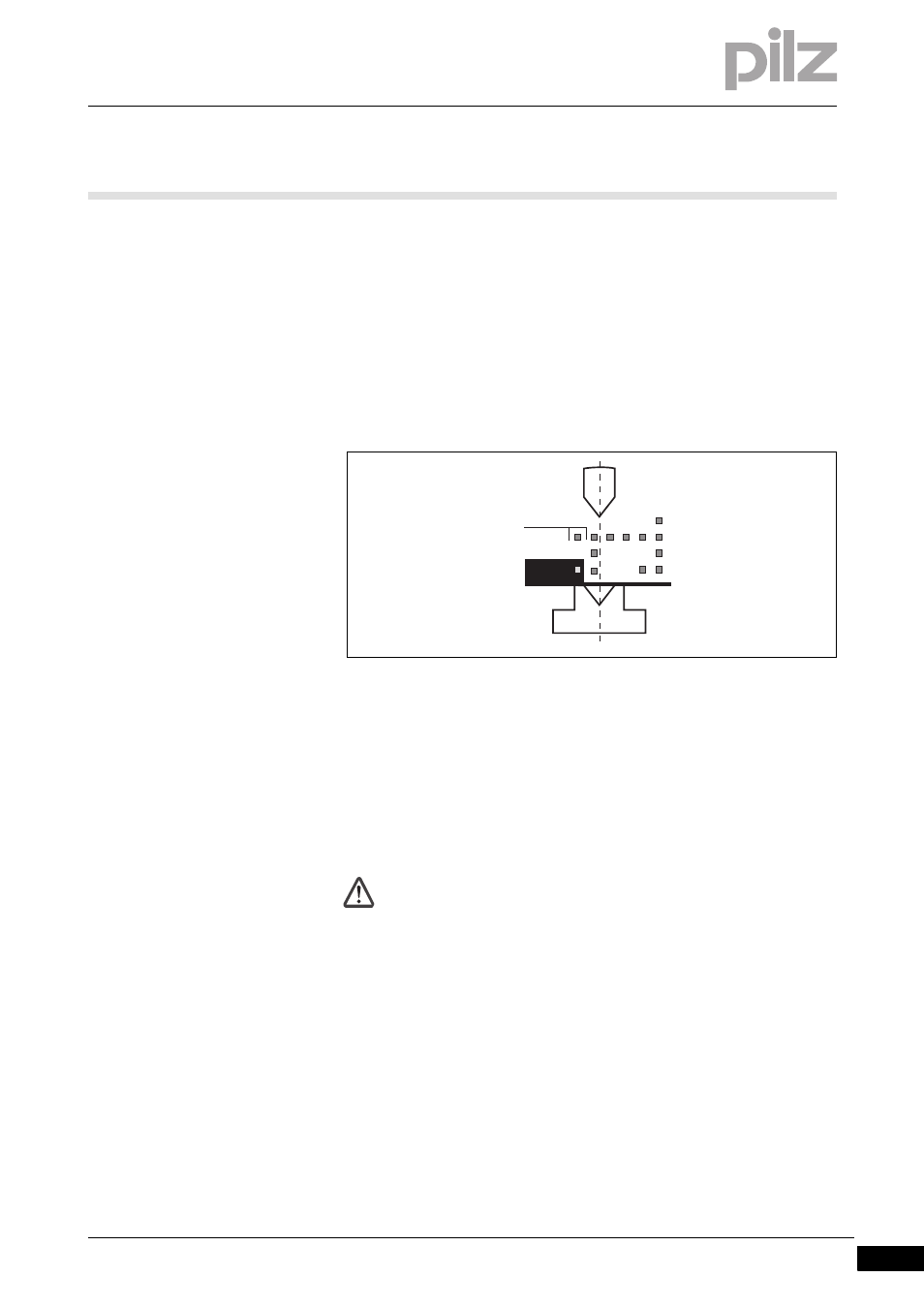

Fig. 4-14: Back gauge protected field mode
 1: Rear segments of protected field are blanked
The back gauge protected field mode is only active for one press stroke
and must be acknowledged by the operator before it is initiated.
Sicherheit_Warnung_Quetschen_Anschlag
4.5.4 Box bending with back gauge protected field mode
Box bending with back gauge protected field mode 4- Funktion_Schutzfeldmodus_Kastembiegen_mit_Anschlag
With box bending with back gauge protected field mode, both the rear
and front segments of the protected fields are blanked. This protected
field mode is applied for workpieces that need to be bended several
WARNING!
Crushing and trapping of fingers or hands!
With back gauge protected field mode, the rear segments of the
protected field are blanked.
Around the bending line there is an increased risk of crushing
and trapping of fingers or hands.
Make sure that the workpiece is handled correctly (see
Chapter 3, “Safety”).
1
