4.4 Description of the units
4 Function Description
Key functions

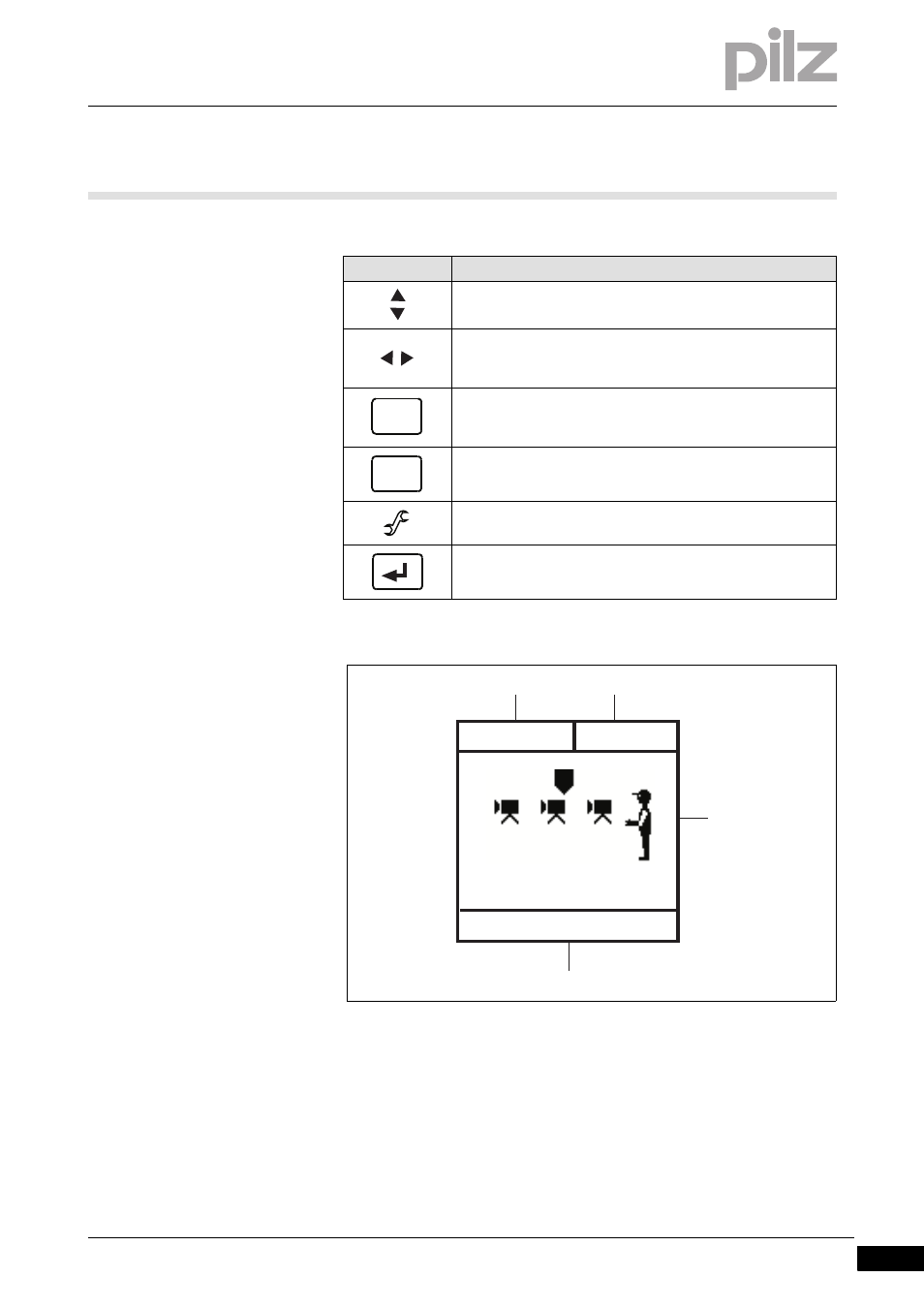

Funktion_Display_Abbildung
Display
Fig. 4-10: Information on the display
The display is divided into 4 segments:
 1: System status
 2: Status of the OSSD
 3: Input and display field
 4: Operating status
Funktion_Display_Systemzustand
Key Description
Move in the direction of the arrows (scroll function) (up/
down)
Confirm entry - together with the key when con-
firming the entered overrun and making adjustments during
a tool change
Call up the operating modes: tool change and adjustment
during initial commissioning. The DIAGNOSTICS menu is
also available.
Close current window, cancel entry
Call up tool change operating mode directly
Confirm entry or menu option selection
MODE
ESC
SYSTEM OK OSSD ON
NORMAL OPERATION
А
Г
В
Б
