8-3
8.2 Operating notes
8 Operation
Muting lamps must be positioned outside the danger zone in such a way
that the machine operator can see the muting lamps from any standard
position, whenever the muting function is being performed.
8.2.3 Initial press stroke
Initial press stroke 8- Betrieb_Erster_Pressenhub
When the initial press stroke occurs after the machine is switched on, a
function test must be carried out on the PSENvip, using the test piece.
 Set standard protected field mode.
 Operate the foot switch to initiate the press stroke.
 Use the test piece to carry out the function test (see Chapter 7, "Func-
tion test of the safety device").
8.2.4 Acknowledge protected field modes
Acknowledge protected field modes 8- Betrieb_Schutzfeldmodi_quittieren_Display

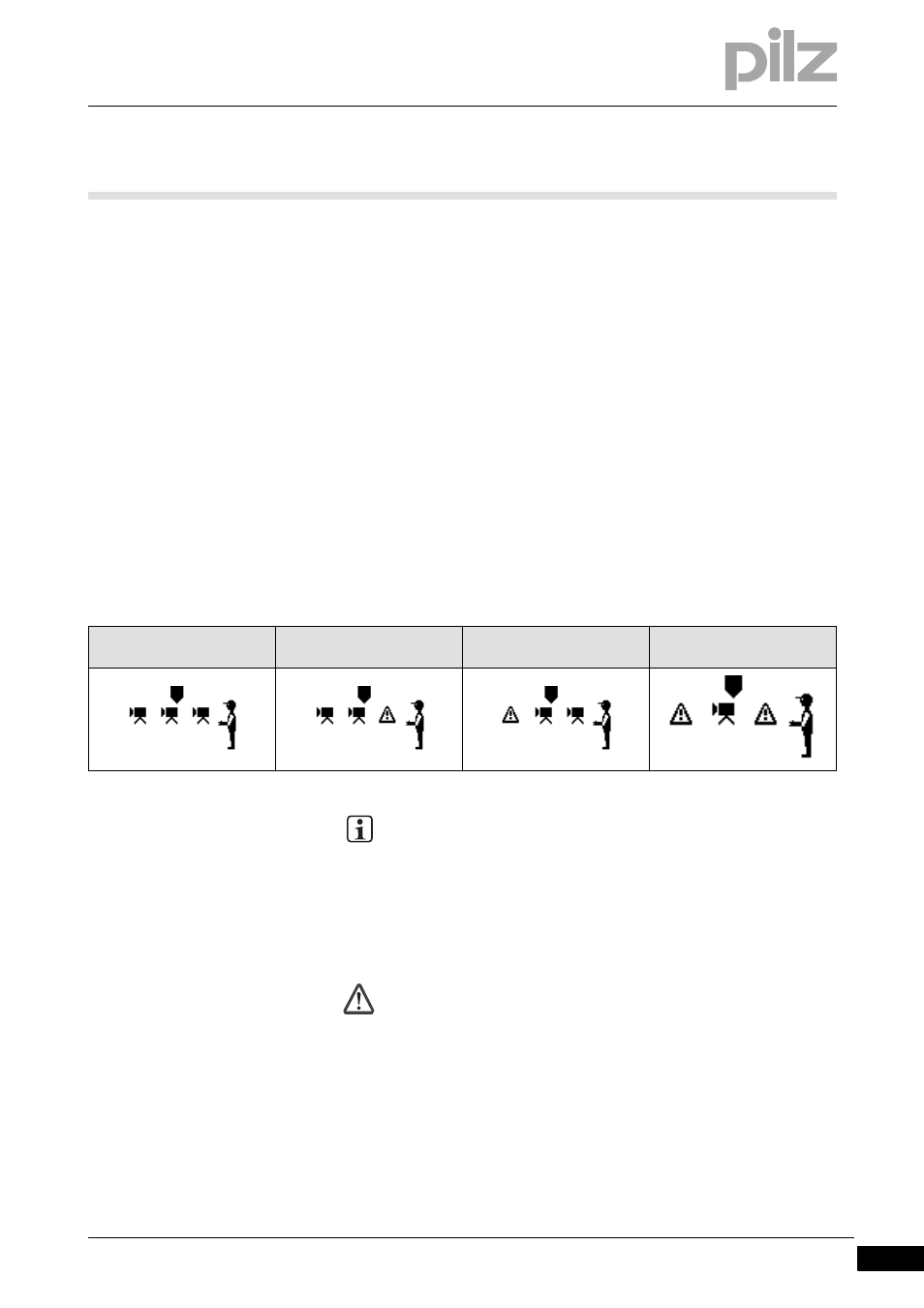

The protected field modes are shown on the display as follows:
Betrieb_Schutzfeldmodi_Bemerkung
Sicherheit_Warnung_Quetschen_Kastenbiegen
Sicherheit_Warnung_Quetschen_Kastenbiegen_Anschlag
Standard Box bending Back gauge Box bending with back
gauge
INFORMATION
The display of the available protected field modes also depends
on the selected tool class. Please refer also to the section enti-
tled "Protected field modes", under "Function Description".
WARNING!
Crushing and trapping of fingers or hands!
With box bending protected field mode, the front segments of
the protected field are blanked.
Around the bending line there is an increased risk of crushing
and trapping of fingers or hands.
Make sure that the workpiece is handled correctly (see
Chapter 3, “Safety”).
