9.
Follow the screen prompt, and press the “Del Key”
to initialize the setting.
4.3 Main Receiver and USB Cable
The main receiver is used to send and receive signals to and from the remote keypads and to
exchange data with the host computer. The main receiver can be plugged into a computer’s USB
port or connected to a computer through a USB cable.
4.3.1 Specifications
Dimensions (L × W × H) 87mm ×24.55mm ×10mm
Weight: 14.4g
Operating Temperature: 0-104 degree F
Operating Relative Humidity: 0-90%
Transmitting and receiving distance: ~200 feet radial
4.3.2 Illustration
5-

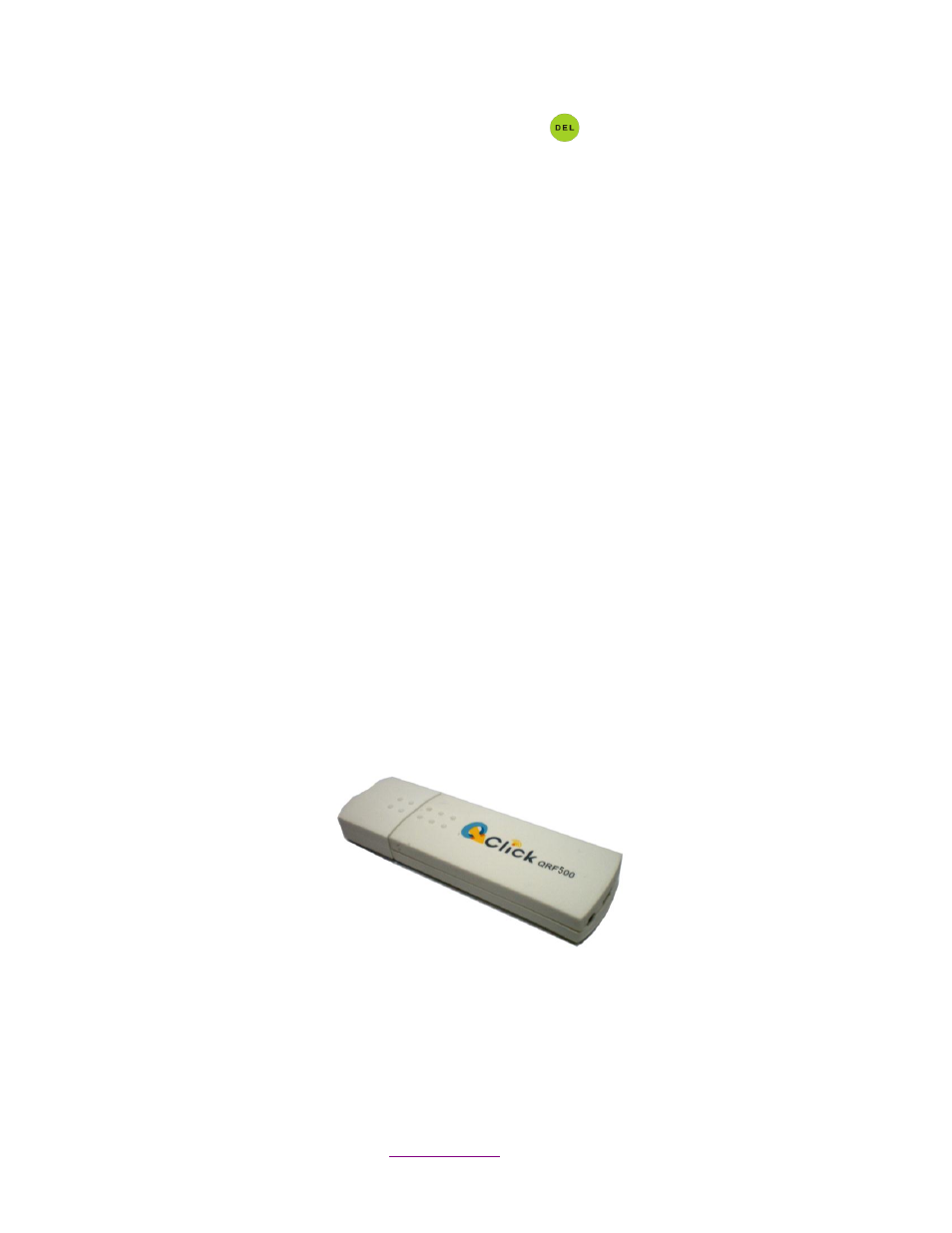

QRF500 Main Receiver
6-
Extension USB: extends the connection between the main receiver and the computer.
