Rockwell Automation AADvance Controller Safety Manual User Manual
Page 74
4-18
Document: 553630
ICSTT-RM446K-EN-P Issue: 10
_C
Safety Manual (AADvance Controller)

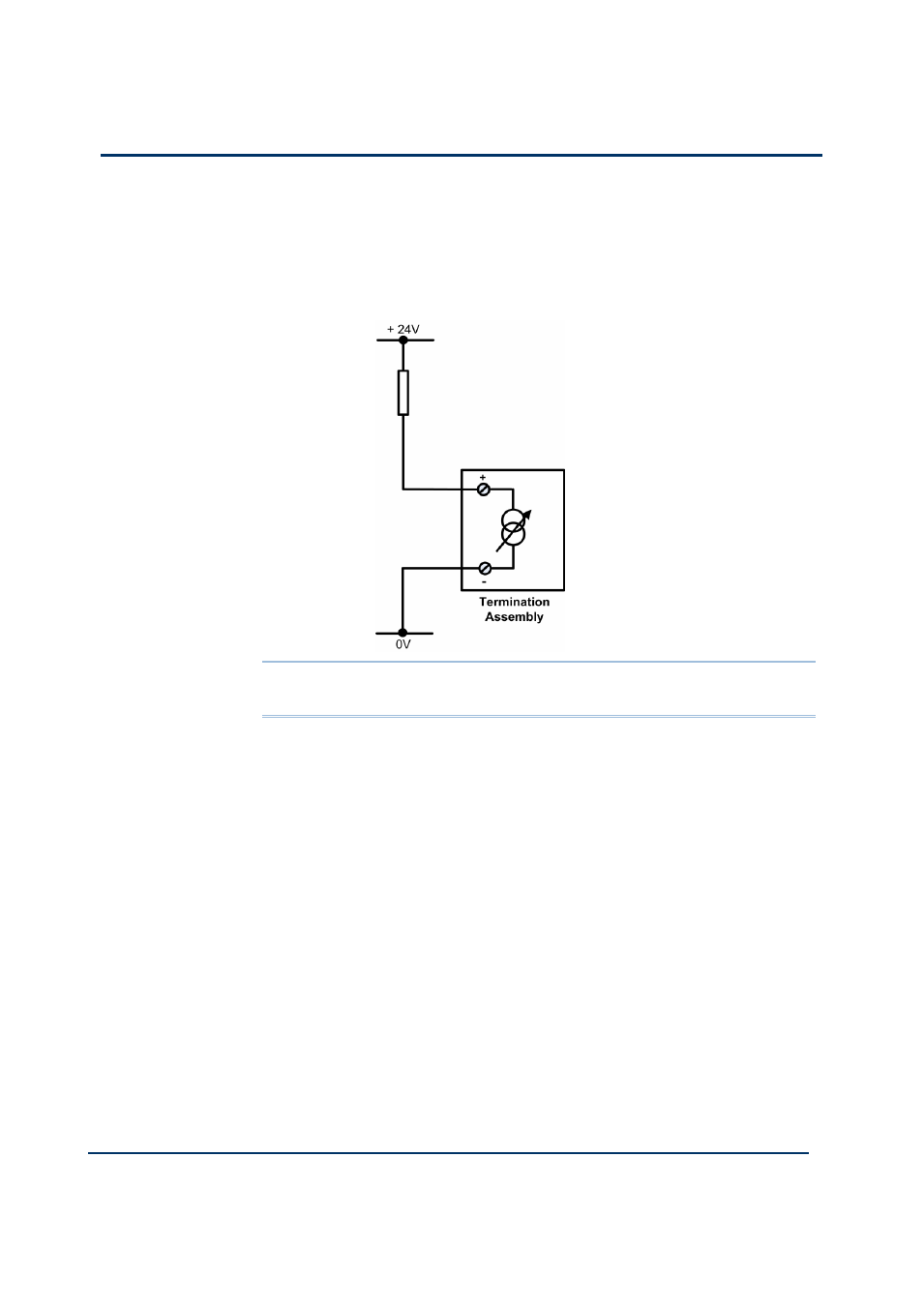

The above circuit is appropriate for devices that are powered by the system.
The channel will pass a requested current between 0mA and 24mA. The field
device could also be connected between the 24V supply and the Loop Plus
terminal.
Note: If the 0V or 24V supply is shared between channels or between
modules, the field loops will not be isolated from each other.
