Rockwell Automation AADvance Controller Safety Manual User Manual
Page 55
Document: 553630
ICSTT-RM446K-EN-P Issue: 10
_C
3-21

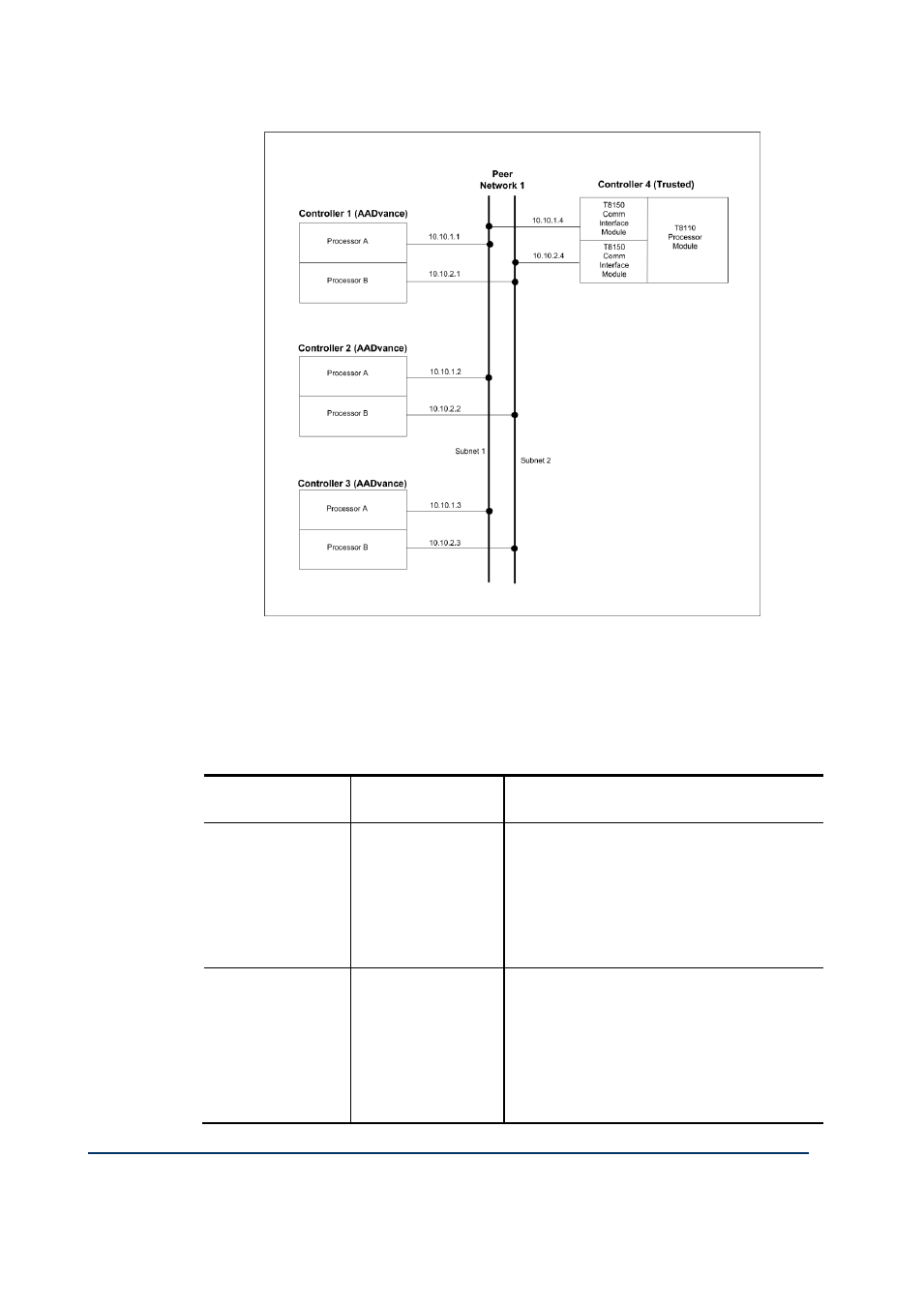

Safety Related Peer-to-Peer Configurations
The following Peer-to-Peer configurations are approved for use in a safety
Related Function:
Table 14:
Peer-to-Peer
Settings
TÜV Certified
Configuration
Conditions
Software Board
Definitions:
Dxpdi16
Dxpdo16
Dxpao16
Dxpdi128
Dxpdi128 & dxpnc40
Certified for use over
a single
communication
network or multiple
networks
Certified as safety-related and can be used for
safety critical communications in SIL 3
applications.
Software Board
Definitions:
Dxpai128
Dxpao128
Certified for use over
a single
communication
network or multiple
networks
Certified as safety-related and can be used for
safety critical communications in SIL 3
applications provided to separate Dxpai128 &
Dxpao128 board definitions are used for safety
values, the safety values from the tw oDxpai128
boards (or digital trip points from the values)
shall have a 1oo2 vote within the receiving
application.
