4-17

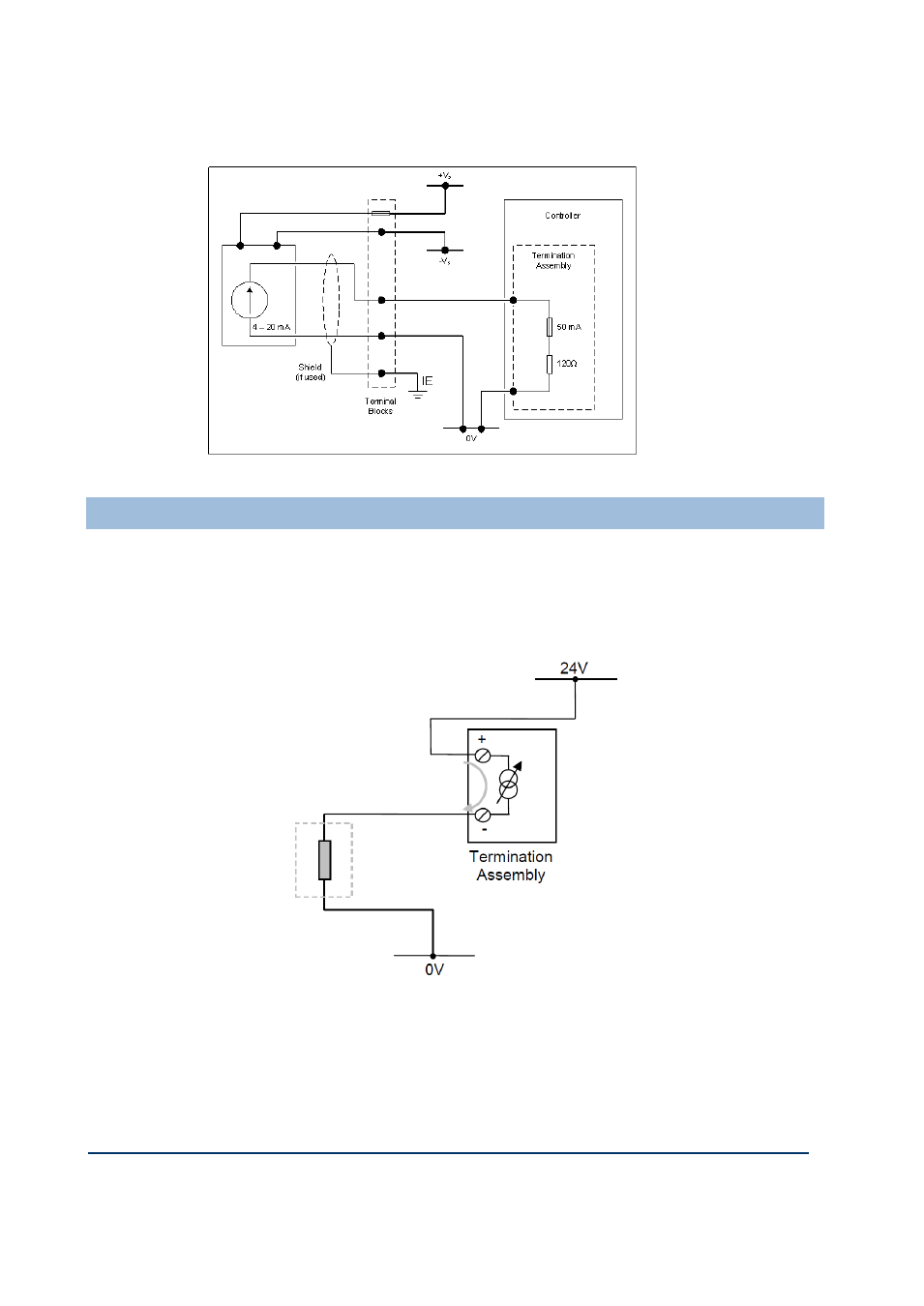

Field Loop Circuit for 4-Wire Analogue Input
Recommended Circuit for Analogue Outputs
These circuits are suitable for simplex and dual configurations of analogue
output modules. All channels are isolated from each other but may be bridged
at the '+' terminal if fed by a common system mounted supply.
System powered devices
