Installing and Operating the SP200 AC Drive

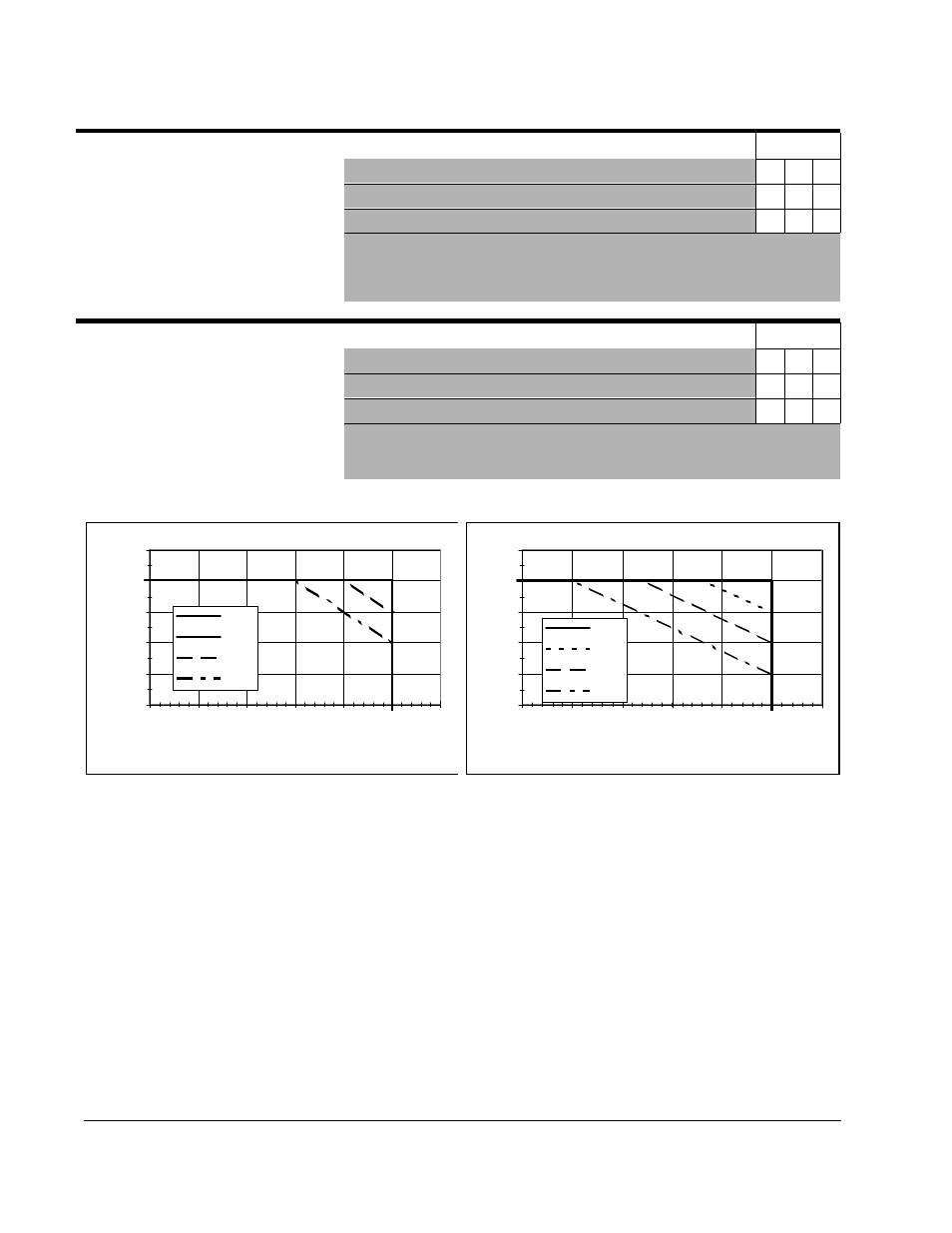

Carrier Frequency Derating Curves
When using a carrier frequency greater than 2 kHz, the ambient temperature and/ or output current must be
limited to values less than the standard ratings for 1.5 HP and 2 HP drives. Units 1 HP and smaller do not
require derating. Use the graphs above to determine the maximum operating conditions when using a carrier
frequency greater than 2 kHz. For example, consider a 1.5 HP drive rated at 230 V and 6 A output. When set to
8 kHz carrier frequency and used in a 45
°
C ambient, the maximum output current is limited to 95% (5.7A).
P-63 Analog Input Display Units
Model
A
B
C
Use this parameter to scale the units
for d-08 (Analog Input 1 Units) and
d-09 (Analog Input 2 Units) display
parameters. Enter the number to be
displayed at the maximum analog
input level.
Parameter Range:
0 to 9999
X
X
Default Setting:
0
X
X
Running Access:
RW
P-64 Carrier Frequency
Model
A
B
C
Use this parameter to set the carrier
frequency for the PWM output
waveform. Note that derating may be
required above 2 kHz (see below).
Parameter Range:
2 to 8 (kHz)
X
X
X
Default Setting:
2
X
X
X
Running Access:
RW
30
35
40
45
50
55
75
80
85
90
95
100
105
Output Current (%)
Am
bient Tem
p
er
atur
e (C)
2 kHz
4 kHz
6 kHz
8 kHz
30
35
40
45
50
55
75
80
85
90
95
100
105
Output Current (%)
Ambient Temper
atur
e (C)
2 kHz
4 kHz
6 kHz
8 kHz
1.5 HP Curves
2.0 HP Curves
