7-8 Installing and Operating the SP200 AC Drive

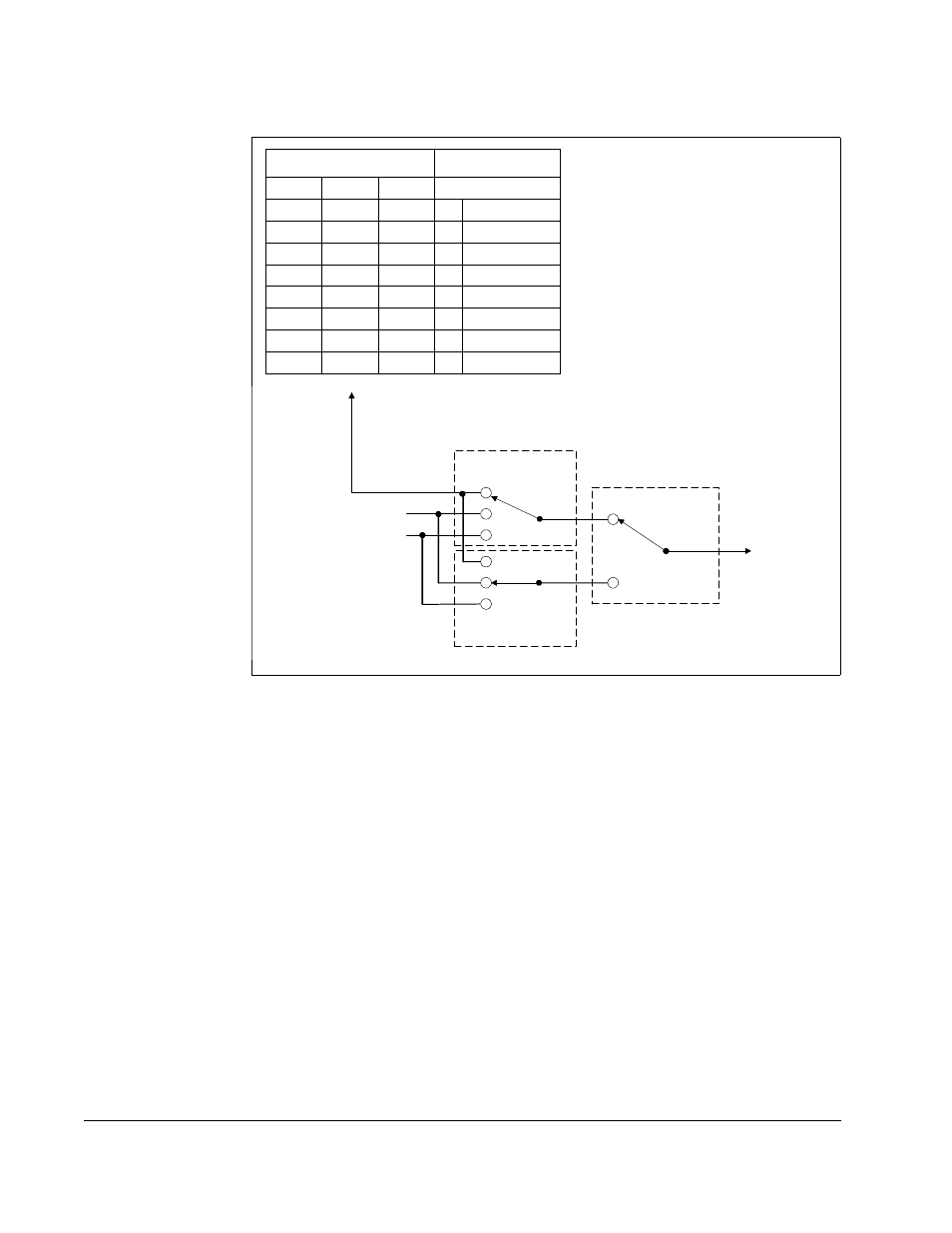

Figure 7.2 – Speed Reference Source for Model B Drives
Input Terminal Status Resulting Speed
Term 8 Term 7 Term 6 Parameter
0 0 0 41 Preset Speed 1
0 0 1 42 Preset Speed 2
0 1 0 43 Preset Speed 3
0 1 1 44 Preset Speed 4
1 0 0 45 Preset Speed 5
1 0 1 46 Preset Speed 6
1 1 0 47 Preset Speed 7
1 1 1 48 Preset Speed 8
Internal Frequency
Keypad Frequency
0
1
2
0
1
2
Alternate
Speed
Ref
(P-21)
Configurable
Input
(P-11 = 3)
Speed
Reference
Main
Speed
Ref
(P-20)
