2-22

GV3000/SE AC Drive Software Reference, Version 6.06

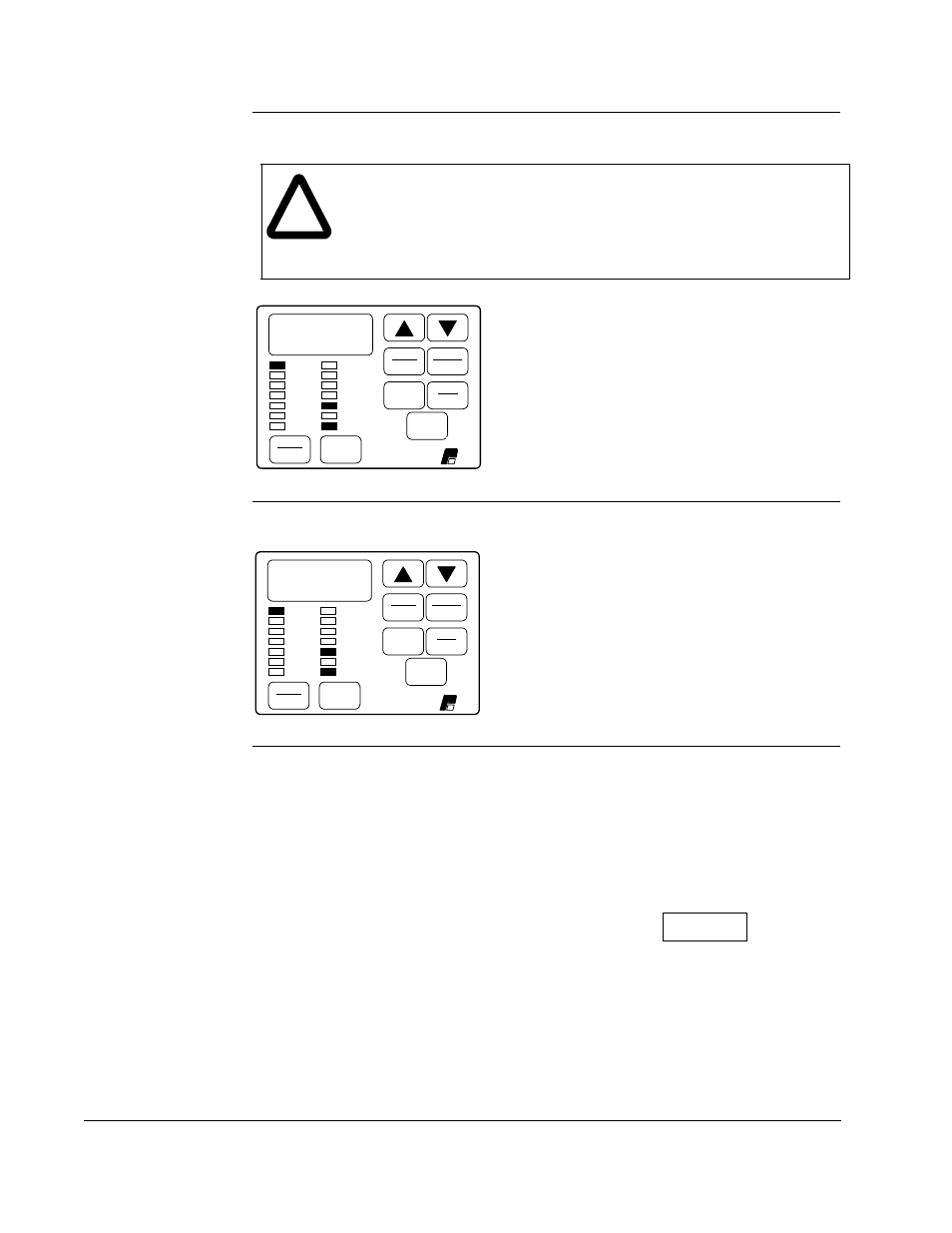

Step 6.23 Press the ▲

key to display U.005, Motor Nameplate RPM.

This parameter is the Motor Nameplate

RPM and is taken from the motor

nameplate.

Step 6.24 Press the ENTER key to display the default setting of U.005.

This displays the Motor Nameplate RPM

setting. The default depends on the HP

rating of the Power Module. The display

shown here is only an example.

Step 6.25 Press the ▲

key to increase the motor nameplate RPM or the ▼ key to

decrease the motor nameplate RPM.

The adjustment range for this value

depends on the settings of U.002 (Motor

Poles) and U.003 (Motor Nameplate Base

Frequency).

VALUE ENTERED:

ATTENTION: The setting of parameters U.001 (Encoder PPR), U.002

(Motor Poles), U.003 (Motor Nameplate Base Frequency), U.005 (Motor

Nameplate RPM), and U.017 (Motor Top Speed) determines the motor

maximum speed. These parameters must be set by a qualified person

who understands the significance of setting them accurately. Failure to

observe this precaution could result in bodily injury.
