Page 34

1-20

GV3000/SE AC Drive Software Reference, Version 6.06

Important: The stop input on the terminal strip is not active when the Control Source

parameter (P.000) is set to LOCL, as it is during this start-up procedure.

Use the STOP/RESET key if you need to stop the drive.

Step 7. Check Motor Rotation Direction

This step involves verifying the speed reference is set to minimum speed, starting the

drive, and checking that the motor rotates in the correct direction. It is performed with

the motor disconnected from the load.

ATTENTION: The subsequent steps require rotating parts and/or

electrical circuits to be exposed. Stay clear if unit must be running, or

disconnect and lock out or tag power source if contact must be made.

Failure to observe this precaution could result in severe bodily injury or

loss of life.

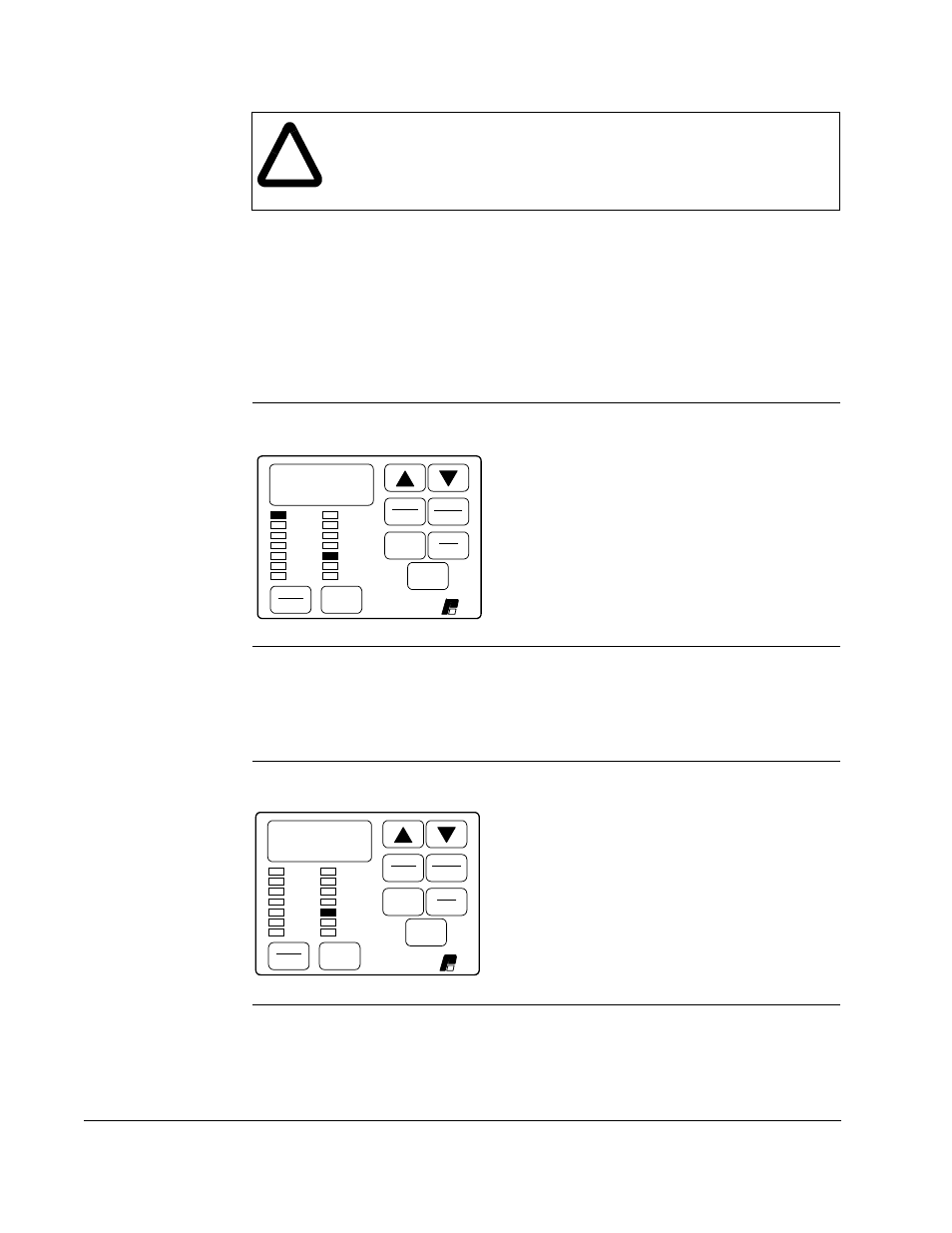

Step 7.1 Press the PROGRAM key until the PROGRAM LED turns off.

The keypad/display will enter monitor

mode.

Step 7.2 Verify that the AUTO LED is off (press the AUTO/MAN key until the AUTO

LED turns off).

This selects the local keypad as the

speed reference source.

Step 7.3 Press the ▲ key or the ▼ key once.

The monitor mode LEDs will all turn off

and the manual speed reference value

will be displayed. The speed reference

value is in the units defined in P.028.

The display shown here is only an

example.

Step 7.4 If the speed reference is at minimum speed, then proceed to step 7.6.

If the speed reference is not at minimum speed, proceed to step 7.5.

)RUZDUG

5HYHUVH

$872

0$1

(17(5

581

-2*

PROGRAM

67$57

6723

5(6(7

63(('
92/76
$036
+]

72548(
3DVVZRUG

5811,1*

5(027(
-2*

$872
)25:$5'
5(9(56(
352*5$0

5(/,$1&(

(/(&75,&
