P.015 trim gain percentage, P.016 draw gain percentage – Rockwell Automation GV3000/SE AC Gen. Purpose and Vector Drive Software Start-Up and Ref. Manual User Manual

Page 110

4-24

GV3000/SE AC Drive Software Reference, Version 6.06

This parameter allows multiple drive sections with a common line reference, but with

different values for draw gain, to run at different speeds depending on the percent

draw.

Note that P.016 affects the accel/decel times. As draw gain increases positive, the

accel/decel time decreases proportionately. As draw gain increases negative, the

accel/decel time increases proportionately. This is based on the following formula:

Modified Accel/Decel = Accel/Decel x [1 / (1.00 + (Draw% / 100))]

P.015 Trim Gain Percentage

This parameter

specifies a

percentage of the

selected trim

reference entering

the speed regulator.

See figure 4.4.

Parameter Range:

-100.0% to +100.0% (1.0 = 1%)

Default Setting:

0.0

Parameter Type:

Tunable

Refer also to parameters:

P.014 Trim Reference Source

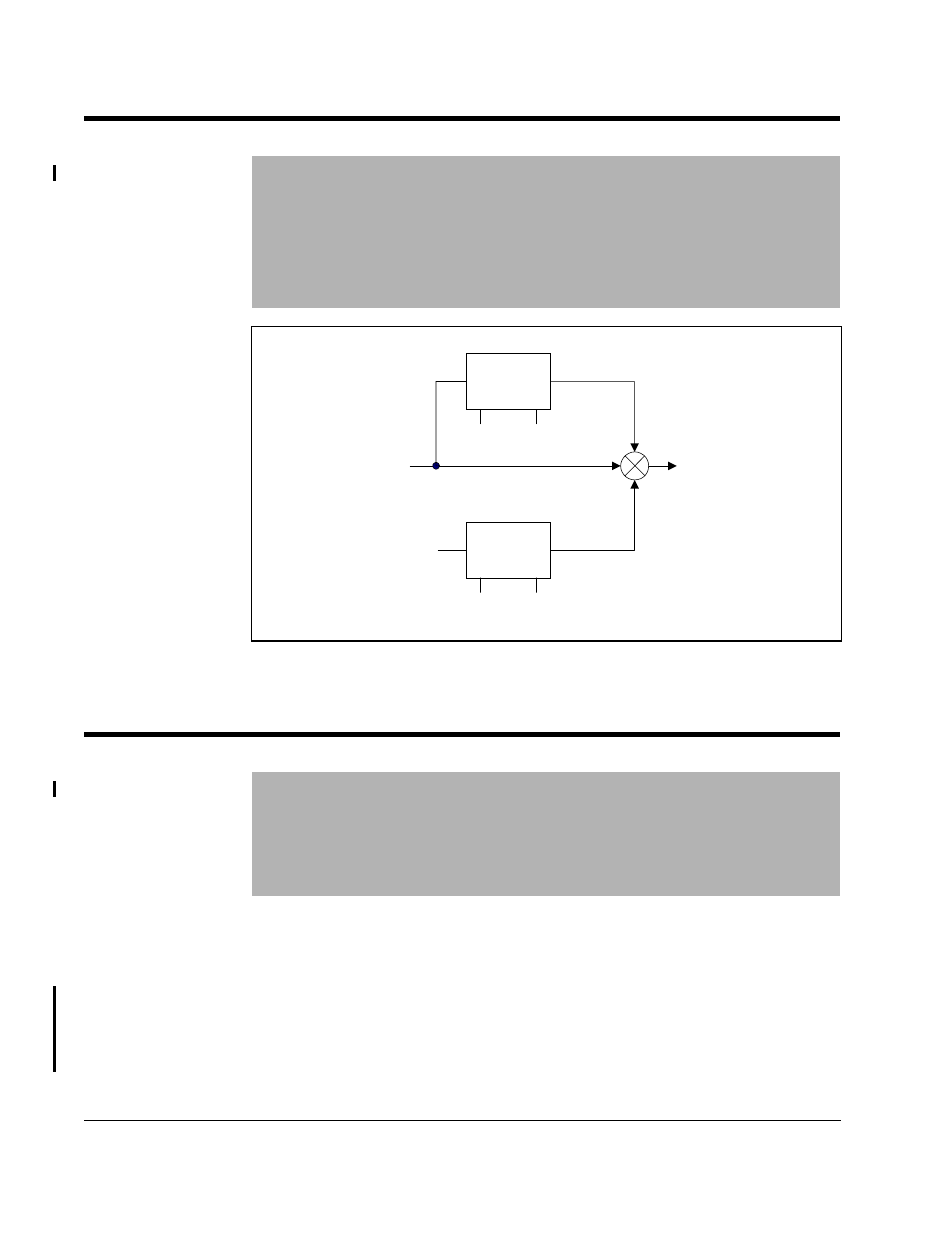

Figure 4.4 – Draw and Trim Gain

See Appendix H for the complete block diagram.

6HOHFWHG

6SHHG 5HI

'UDZ *DLQ

0XO

'LY

'UDZ

7ULP *DLQ

0XO

'LY

7ULP

7R 6SHHG 5HI

/LPLW %ORFN

6HOHFWHG

7ULP 5HI

P.016 Draw Gain Percentage

This parameter is

used to increase or

decrease the

selected speed

reference to the

speed regulator.
