Programming Reference 4-23
Selections 5 through 9 are available only if an optional RMI board is installed in the
drive. Refer to instruction manual D2-3341 for more information about the RMI board.
P.014 Trim Reference Source
This parameter
specifies the source
for the trim reference.
Trim reference is
added to the speed
reference.
Refer to figure 4.3.
Parameter Range: 0 = No trim reference used
1 = Terminal strip analog input
2 = Option port trim reference register
3 = Maximum speed
4 = Torque current feedback (vector only)
5 = RMI board analog input
6 = RMI board frequency input
7 = Switched RMI board analog input or frequency
input
8 = RMI outer loop PI block (Mode 1)
9 = RMI outer loop PI block (Mode 2)
Default Setting: 0
Parameter Type: Configurable
Refer also to parameters: P.015 Trim Gain Percentage

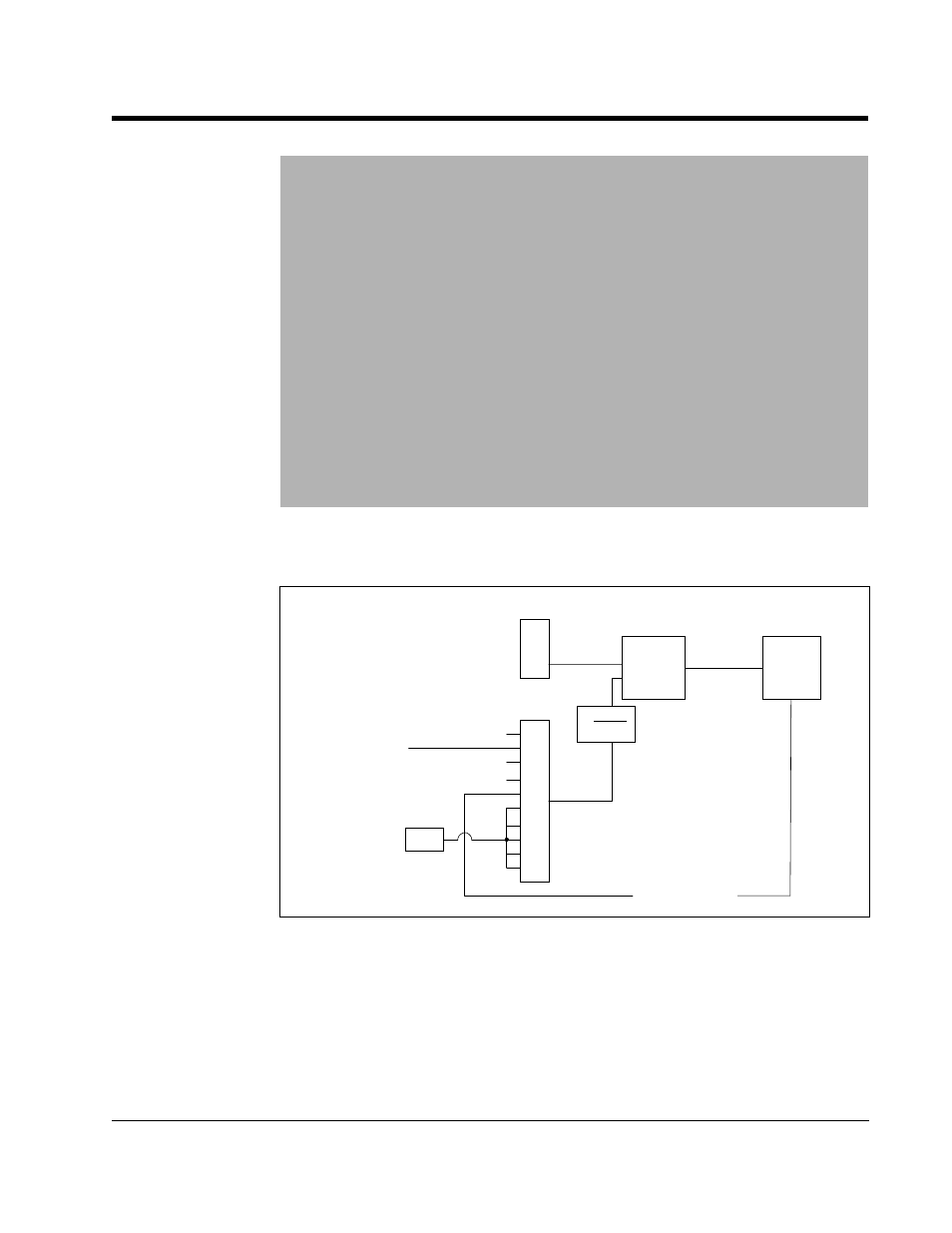

Figure 4.3 – Trim Reference Source Selection
3
6HOHFWHG
7ULP 5HI
3
7RUTXH
&RQWUROOHU
7RUTXH )HHGEDFN
1RQH
2SWLRQ 3RUW
0D[ 6SHHG
7HUPLQDO 6WULS
$QDORJ ,QSXW
50,
6HOHFWHG
6SHHG
5HI
6SHHG
&RQWURO
/RRS
[ 3
