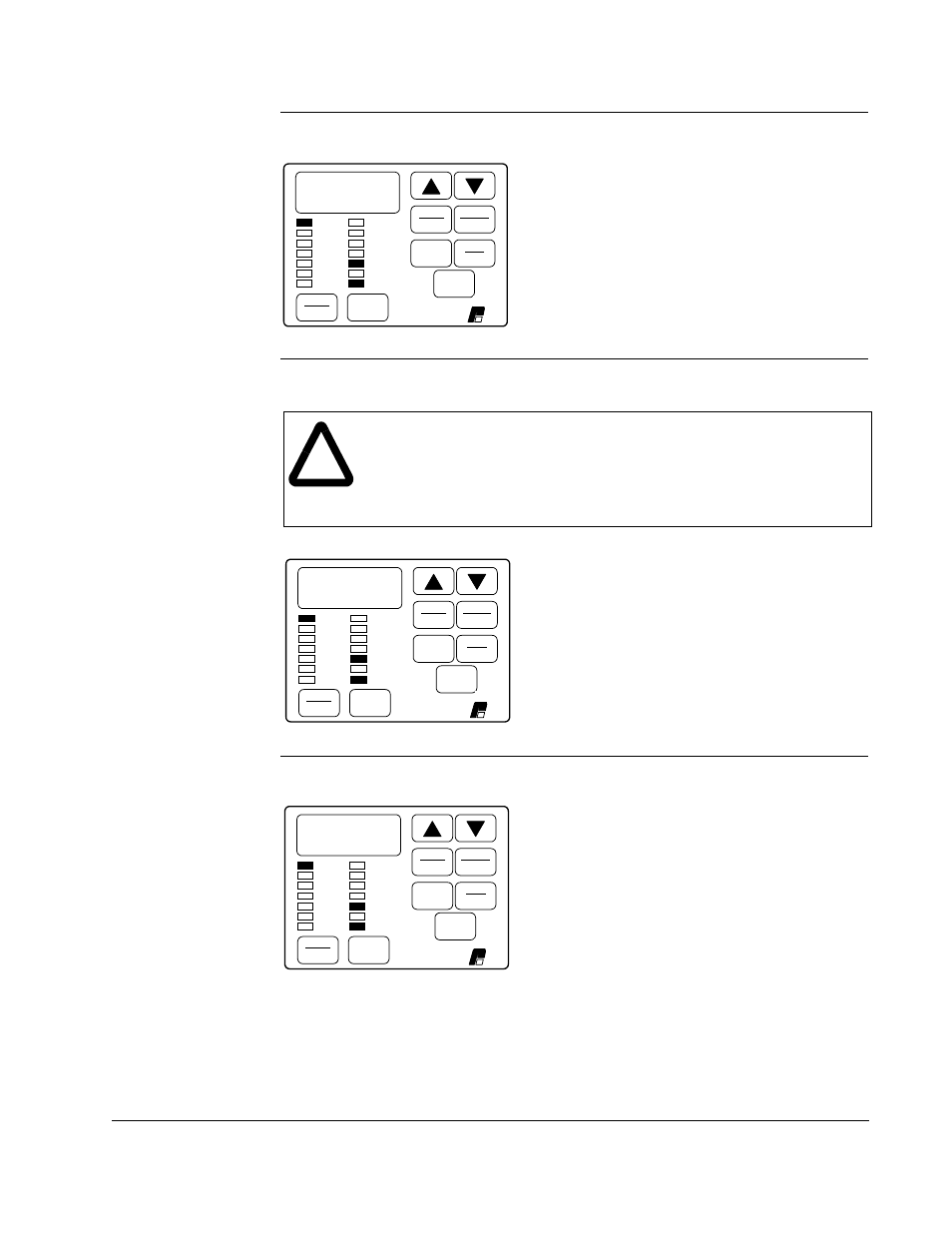

Starting Up the Drive for Vector Regulation 2-19
Step 6.14 Press the ENTER key to save the changed value.
After pressing ENTER, the same parameter
is displayed. You can now move to the next
parameter.
Step 6.15 Press the ▲ key to display U.003, Motor Nameplate Base Frequency.
This parameter is the Motor Nameplate
Base Frequency and is taken from the motor
nameplate.
Step 6.16 Press the ENTER key to display the default setting of U.003.
This shows that the default setting is
60.0 Hz.
X
)RUZDUG
5HYHUVH
$872
0$1
(17(5
581
-2*
PROGRAM
67$57
6723
5(6(7
63(('
92/76
$036
+]
.Z
72548(
3DVVZRUG
5811,1*
5(027(
-2*
$872
)25:$5'
5(9(56(
352*5$0
5(/,$1&(
(/(&75,&
!
ATTENTION: The setting of parameters U.001 (Encoder PPR), U.002
(Motor Poles), U.003 (Motor Nameplate Base Frequency), U.005 (Motor
Nameplate RPM), and U.017 (Motor Top Speed) determines the motor
maximum speed. These parameters must be set by a qualified person
who understands the significance of setting them accurately. Failure to
observe this precaution could result in bodily injury.
