4.7.3 Example of a Mask Compare Instruction

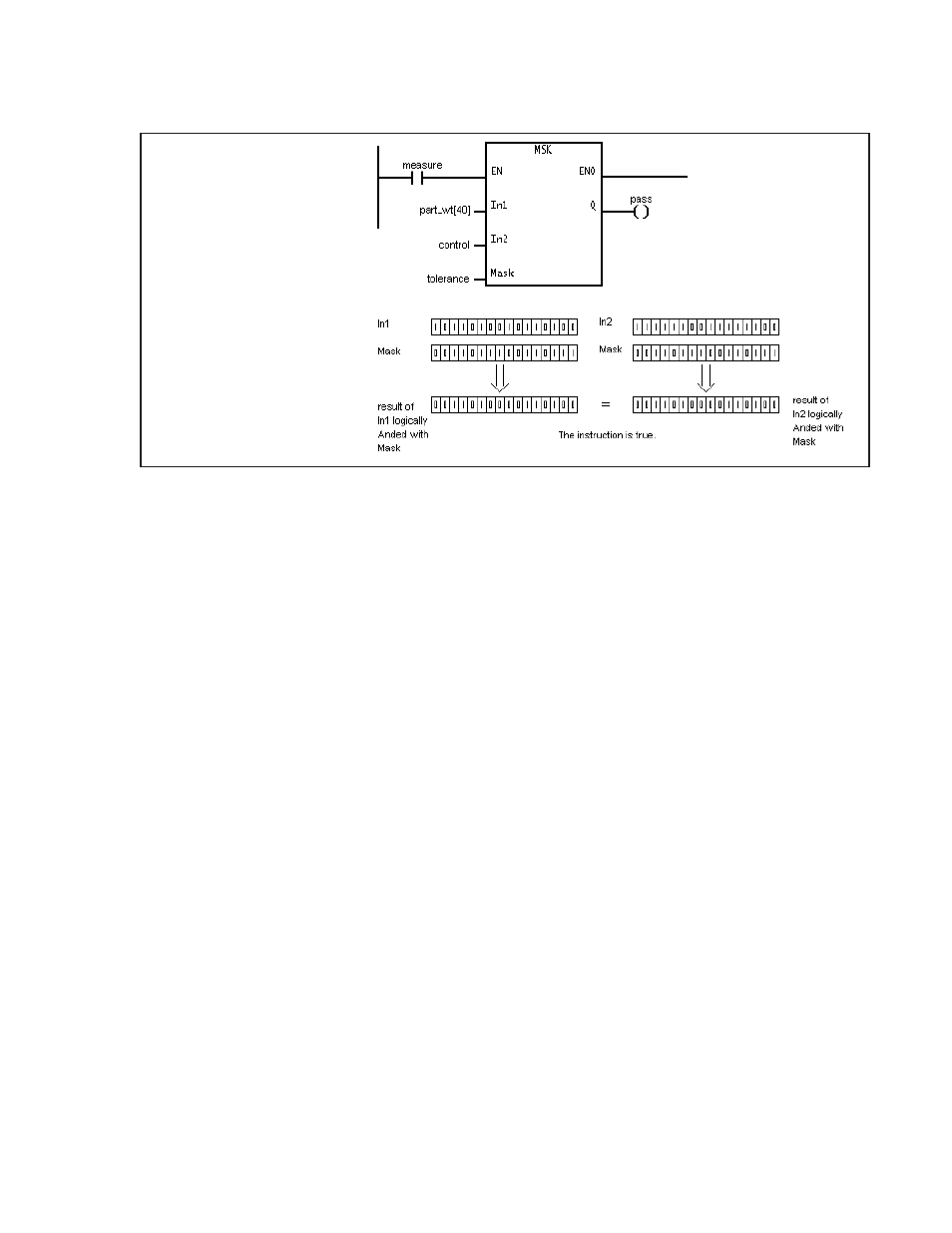

This logic shows that when the
variable measure is true a bit mask
identified as tolerance is applied to
the variables part_wt[40] and control.
The results are then compared to
determine if they are equal. If so, Q
and the variable are set true.
