1Ć10

1.5.5

Using a Variable on a Set (SCO) Coil and Reset Coil (RCO) Pair

and on a Transition Contact

When you use the same variable name on an RCO and SCO pair and on a transition

contact, the state of the variable for the contact is determined by the most recently

executed coil.

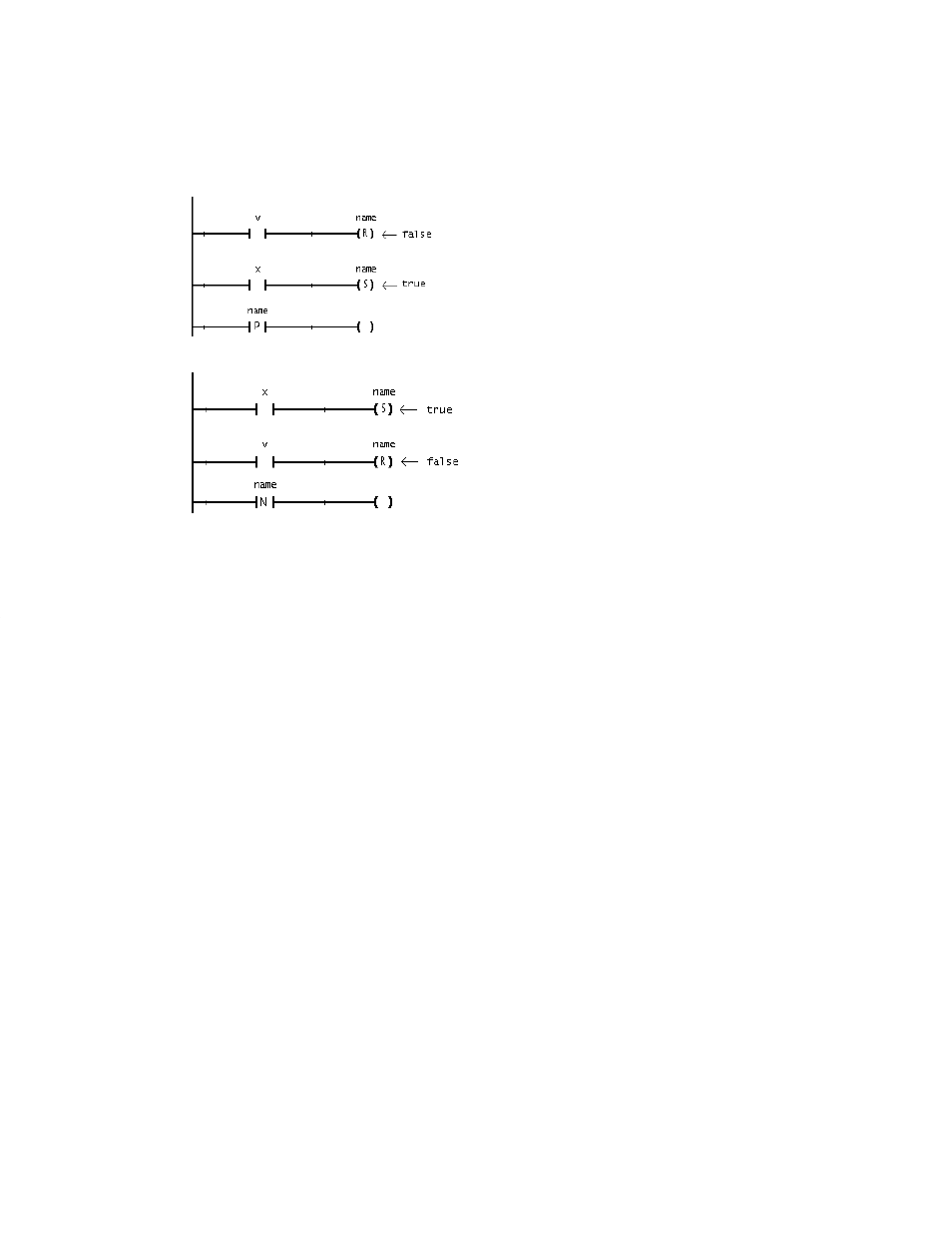

For example, a PTI instruction would see a transition in this case:

and, an NTI would see a transition in this case:
