10Ć27

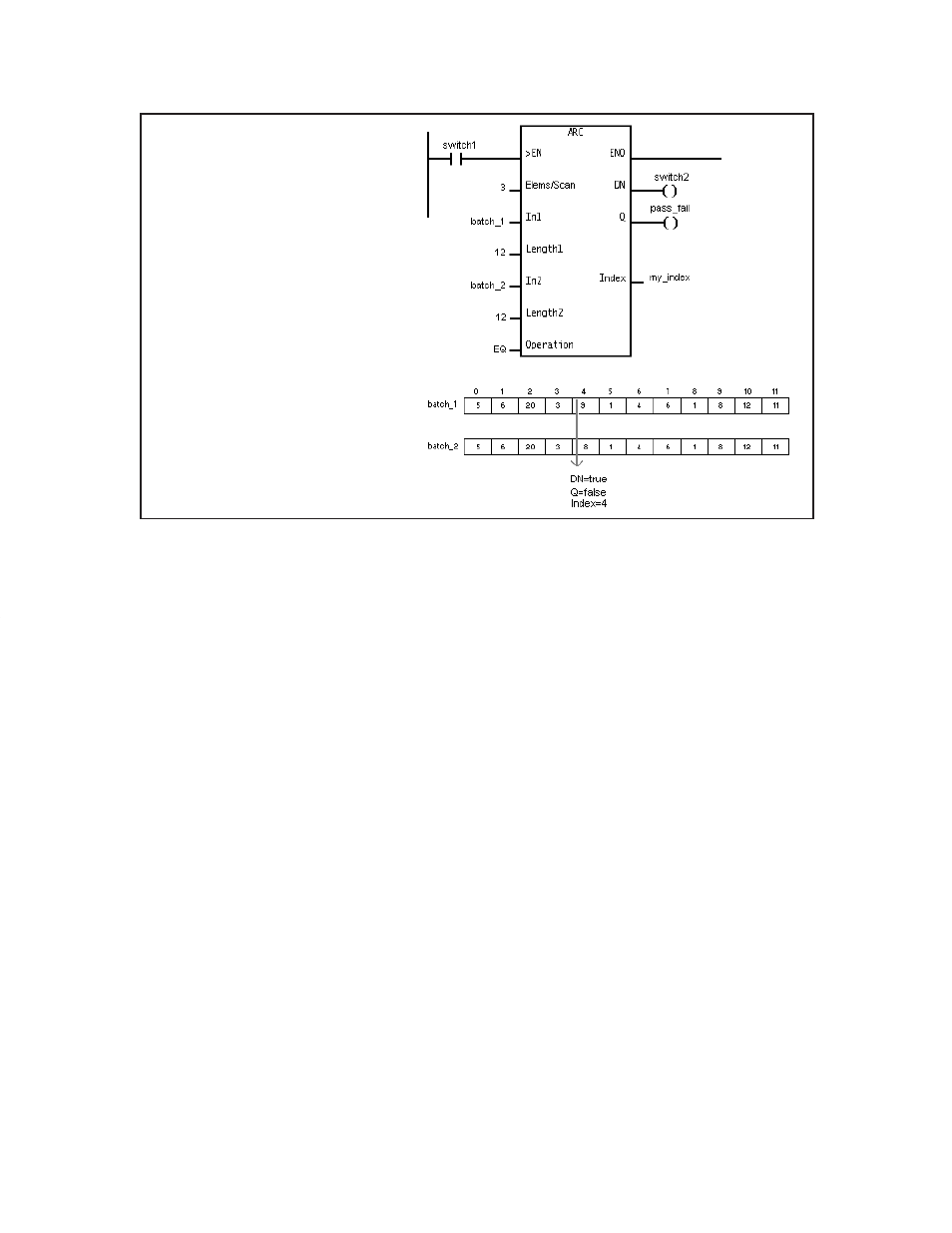

10.3.3 Example of an Array Compare Instruction
When switch1 is set true and remains true, the
parameters are latched and checked. On
subsequent scans, the next three elements of
batch_1 are compared to the corresponding
three elements of batch_2. The first comparison
that evaluates false causes the instruction to be
completed, with Q set false. If all twelve
corresponding array elements had been equal,
the instruction would have finished on the fifth
scan with Q set true.
