Publication 2711P-UM001J-EN-P - November 2009 37
Installation Chapter 2
Mount the 400 or 600
Terminal in a Panel Mounting levers secure the terminal to the panel. The number of
levers you use (4 or 6) varies by terminal type.
Follow these steps to mount the 400 or 600 terminals in a panel.
1. Cut an opening in the panel by using the panel cutout shipped
with the terminal.
2. If a communication module is ordered separately, attach the
module to the base unit before panel installation.
Refer to the instructions shipped with module.
3. Make sure the terminal sealing gasket is properly positioned on
the terminal.
This gasket forms a compression-type seal. Do not use sealing
compounds.
4. Install legend strips before installing the terminal if you are
using keypad legend strips on a 600 keypad terminal.
Be careful not to pinch legend strip during installation.
5. Place the terminal in the panel cutout.
If installing the terminal in an existing 550 panel cutout, align
the terminal with the center of the cutout for best gasket sealing.
ATTENTION
Disconnect all electrical power from the panel before making
the panel cutout.
Make sure the area around the panel cutout is clear.
Take precautions so metal cuttings do not enter any
components already installed in the panel.
Failure to follow these warnings may result in personal injury or
damage to panel components.

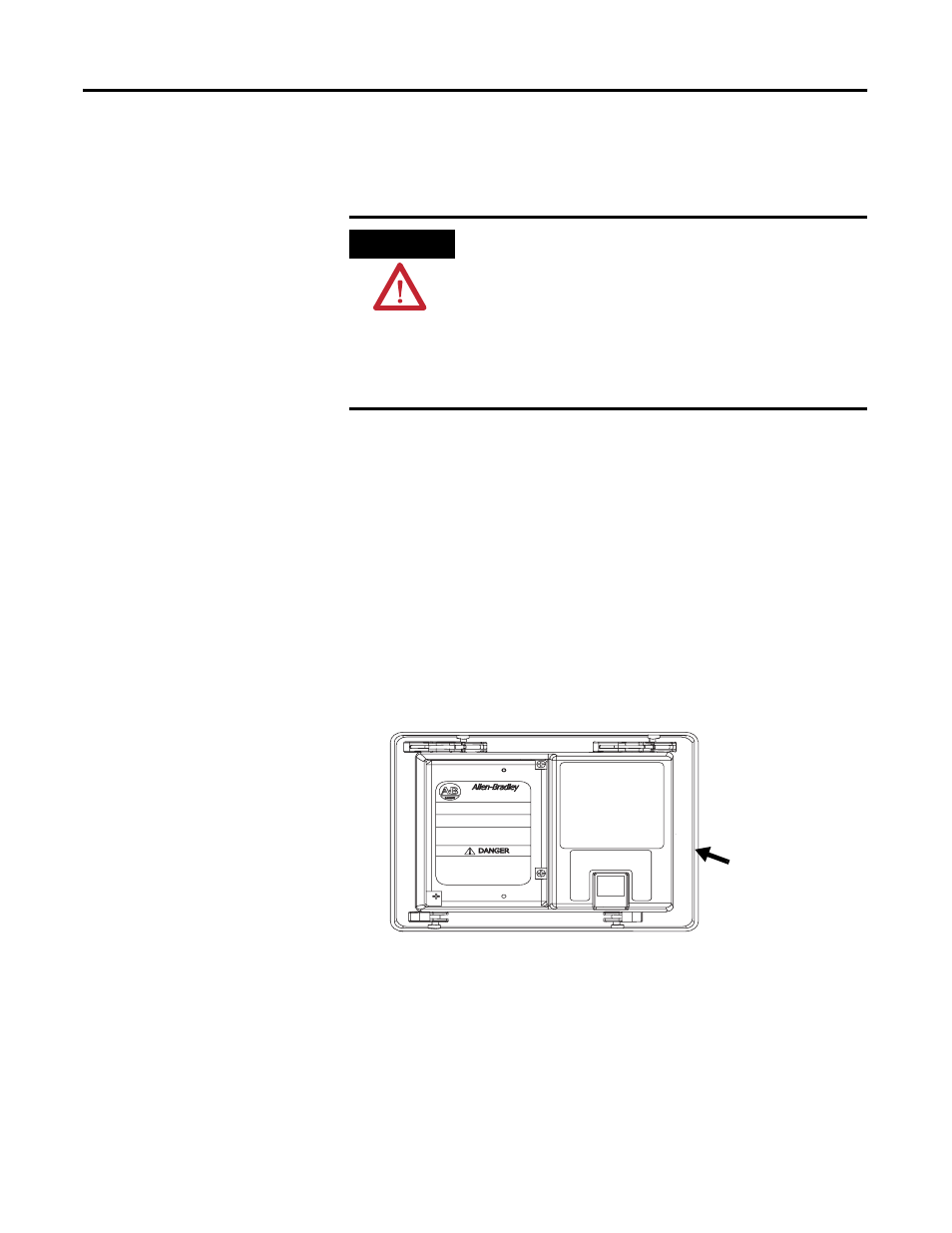

Sealing Gasket
