22 Publication 2711P-UM001J-EN-P - November 2009
Chapter 1 Overview

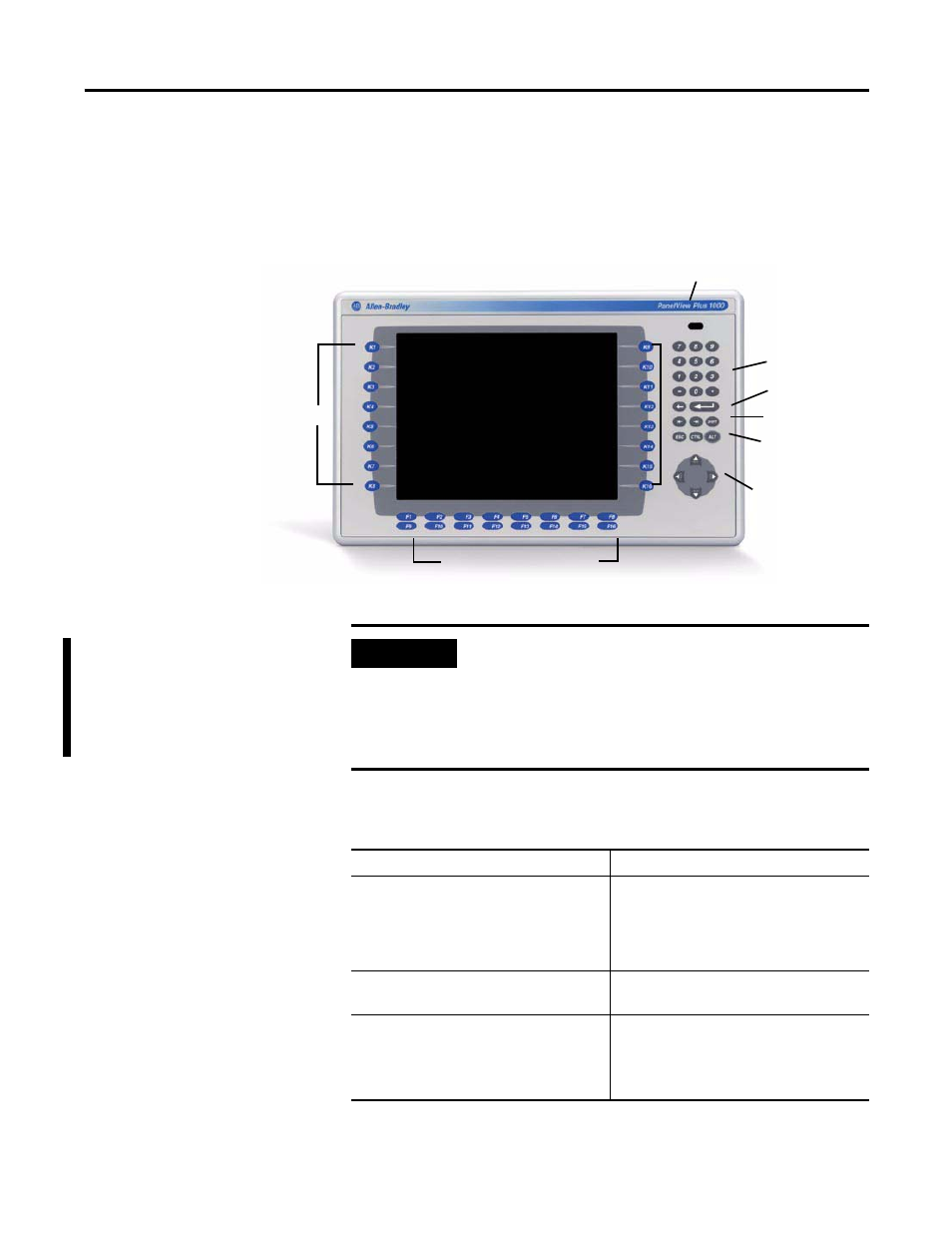

Keypad or Keypad and Touch
All displays are similar except for size and the number of function
keys available.
The Kxx and Fxx function keys on the keypad terminals are
programmable.
Backspace
and Enter Keys
Navigation Keys
Numeric Keypad
Programmable Function Keys
(optional custom legends)
Allen-Bradley Label
Tab and Shift Keys
Esc, CT, Alt Keys
Programmable Function Keys
(optional custom legends)
IMPORTANT
The keypad is designed for finger or gloved finger operation.
The touch screen may be operated with a finger, gloved finger,
or plastic stylus device with a minimum tip radius of
1.3 mm (0.051 in.) to prevent damage to the touch screen.
Using any other object or tool may damage the touch screen
or keypad.
Function Keys Description
Function Keys
700
(F1 through F10, K1 through K12)
1000 (F1 through F16, K1 through K16)
1250 (F1 through F20, K1 through K20)
1500 (F1 through F20, K1 through K20)
Programmable keys that initiate functions
on terminal display. Replaceable legends
are available for the terminals allowing for
custom function key labels.
Numeric Keypad 0…9, ., -, Backspace, Enter, Left and Right
tab, Shift, Esc, Ctrl, Alt keys.
Navigation Keys Use the arrow keys to move cursor in lists
and select objects.
Alt+arrow key activates home, end, page
up, page down functions.
