Chapter 9
Using microSD Cards
5.

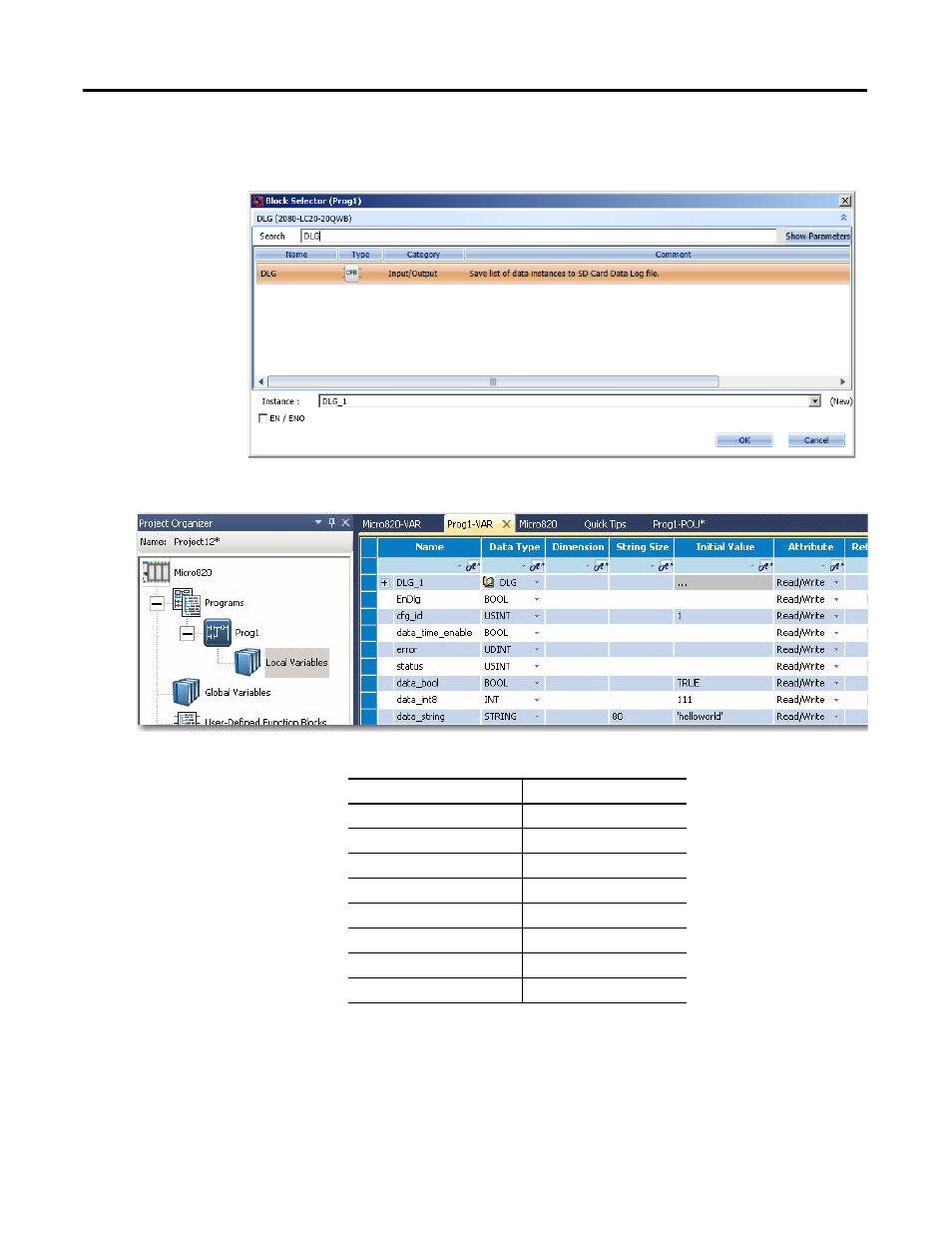

On the Block Selector window that appears, type DLG to filter the DLG
function block from the list of available function blocks. Click OK.
6.
Create the following local variables for your project.
Local Variables
Variable Name
Data Type
EnDlg
BOOL
cfg_id
USINT
data_time_enable
BOOL
error
UDINT
status
USINT
data_bool
BOOL
data_int8
INT
data_string
STRING
