Using microSD Cards Chapter 9
Create datalog ladder program

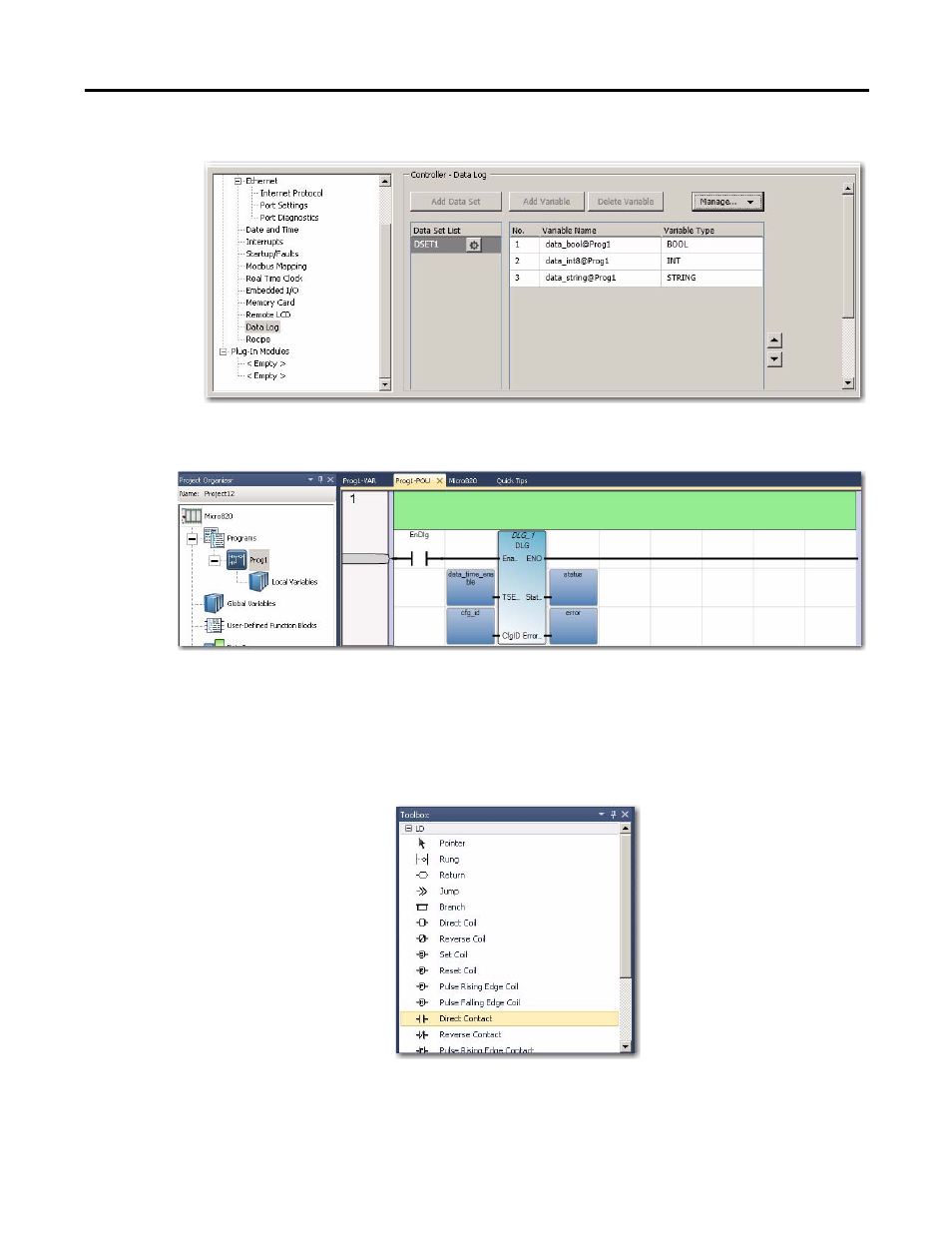

1.
Launch Connected Components Workbench. Create a user program for
your Micro820 controller.
2.
Right-click Programs. Select Add New LD: Ladder Diagram. Name the
Program (for example, Prog1).
3.
From the Toolbox, double-click Direct Contact to add it to the rung.
4.
From the Toolbox, double-click Block to add it to the rung.
