Page 74

66
Rockwell Automation Publication 2080-UM005A-EN-E - December 2013
Chapter 8
Using the Micro800 Remote LCD
After showing the startup message, the Remote LCD will show the I/O Status
screen, assuming that no LCD_REM instructions are executing.
Navigate the Remote LCD
In text display mode, you can make use of available navigation keys (function
keys, arrow keys, ESC and OK) to navigate through the menus.

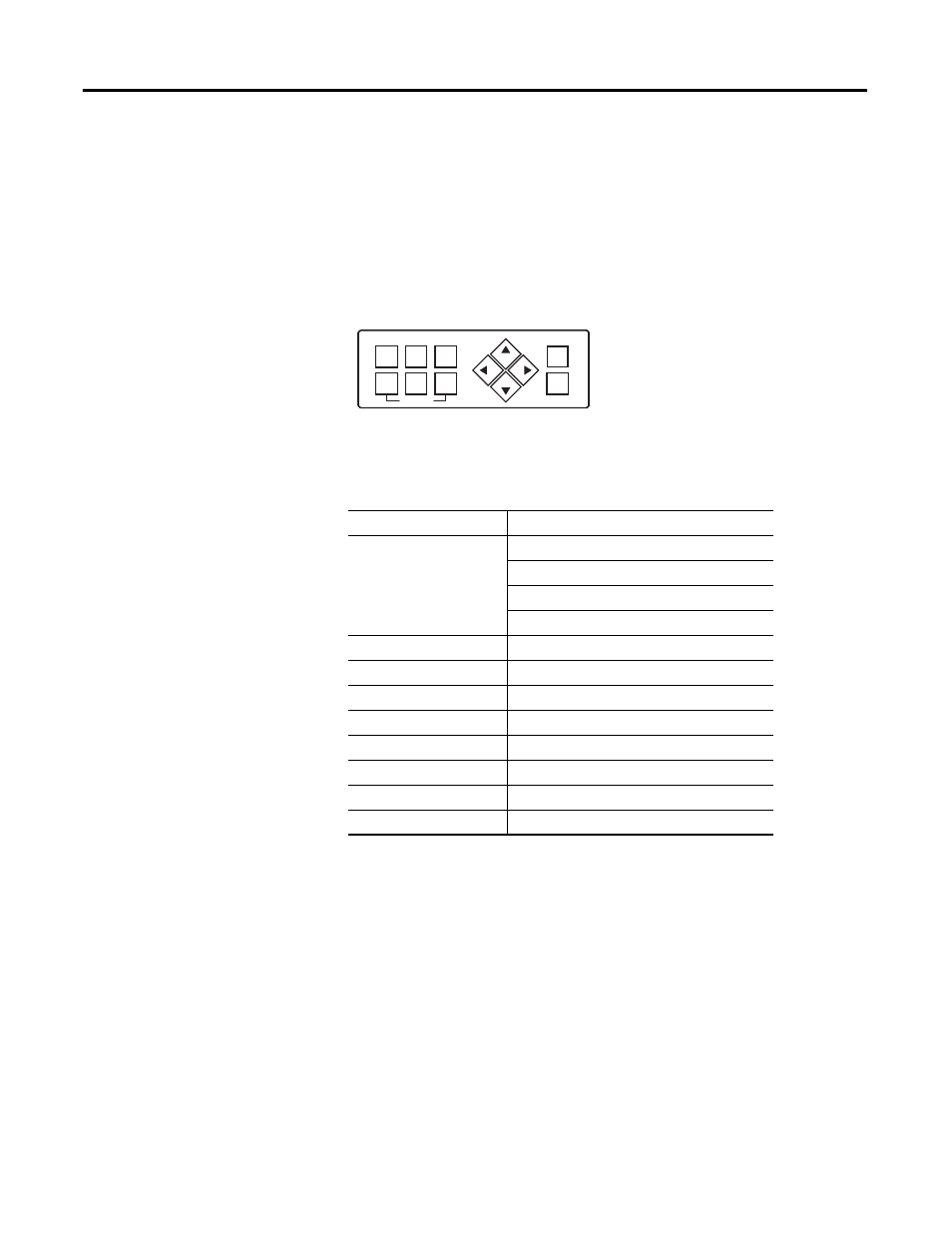

The module has twelve keys with the following operations.
Shortcut keys jump from the I/O Status screen to the specific main menu
operation.
Main Menu
To access the Main Menu and available submenus, press F4 and F6
simultaneously. To exit the Main Menu, press ESC.
Function Keys Operation
Button
Function
Arrow keys (cursor buttons)
Move cursor
Select menu item
Increment/Decrement Number
Choose numbers, values, times, and so on
OK
Next menu level, store your entry
Esc
Previous menu level, cancel your entry.
F1
Variable (Shortcut)
F2
ENET Cfg (Shortcut)
F3
Mode Switch (Shortcut)
F4
Fault Mode (Shortcut)
F5
Security (Shortcut)
F6
Backlight (Shortcut)
OK
ESC
F4
F5
F1
F2
F3
F6
MENU
