Build and download
After configuring datalog properties, build the program and download to the
controller.

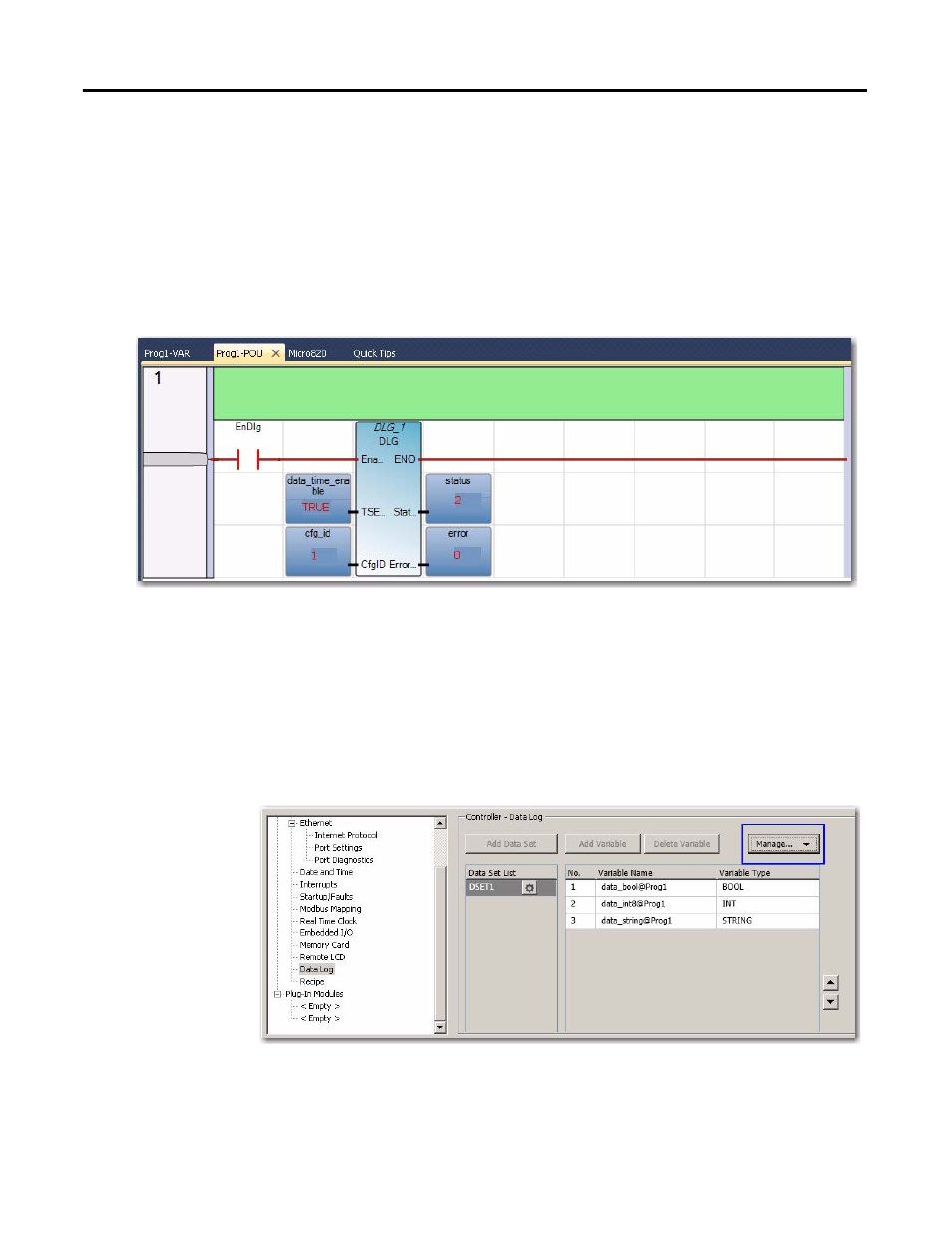

Execute DLG function block
Execute the DLG function block. Notice the Status output go from 0 (Idle) to
1 (Enable), and 2 (Succeed).
Upload datalog file
You can retrieve datalog files from the microSD card using a card reader or by
uploading the datalogs through Connected Components Workbench.
1.
To use the Upload feature, go to the Properties section of your project in
Connected Components Workbench.
2.
Select Data Log. Click Manage and then choose Upload.
