Page 41

Rockwell Automation Publication 2080-UM005A-EN-E - December 2013
33
Wire Your Controller Chapter 4

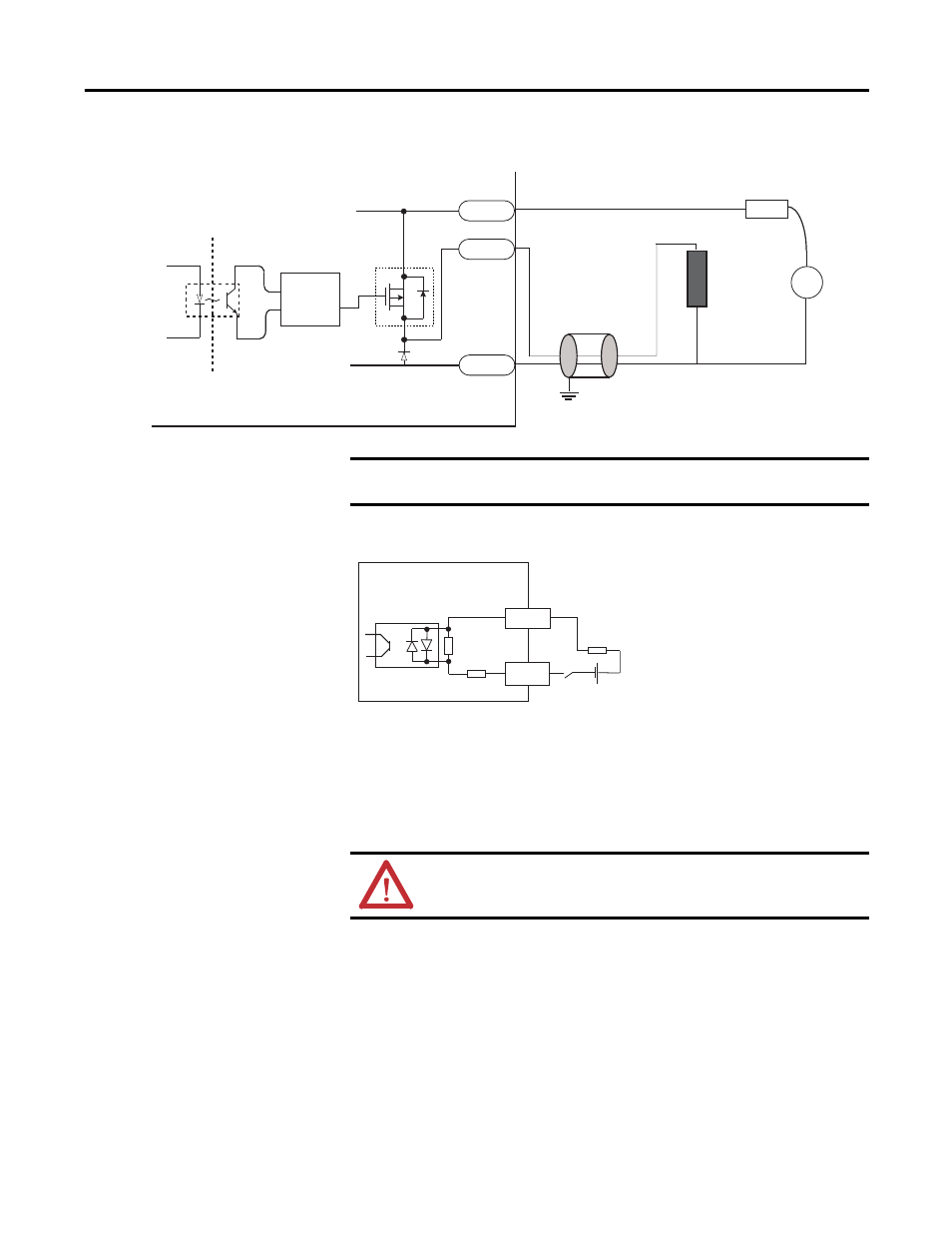

Source Output Wiring Example
Source Input Wiring Example
Wiring Analog Channels
Analog input circuits can monitor voltage signals and convert them to serial
digital data as shown in the following illustration.
D
DC COM
OUT
+V DC
S
G
Logic side
User side
+
–
24V Supply
Load
Fuse
45626
IMPORTANT
For 2080-LC20-20QBB(R) discrete output 06, shielded cable is required if
the output is used as PWM. Otherwise, unshielded cable can be used.
Com
Fuse
24V
DC
I/P
+
~
45625
ATTENTION:
Analog inputs and outputs are not isolated.
