Recommended Surge Suppressors
Use the Allen-Bradley surge suppressors in the following table for use with relays,
contactors, and starters.

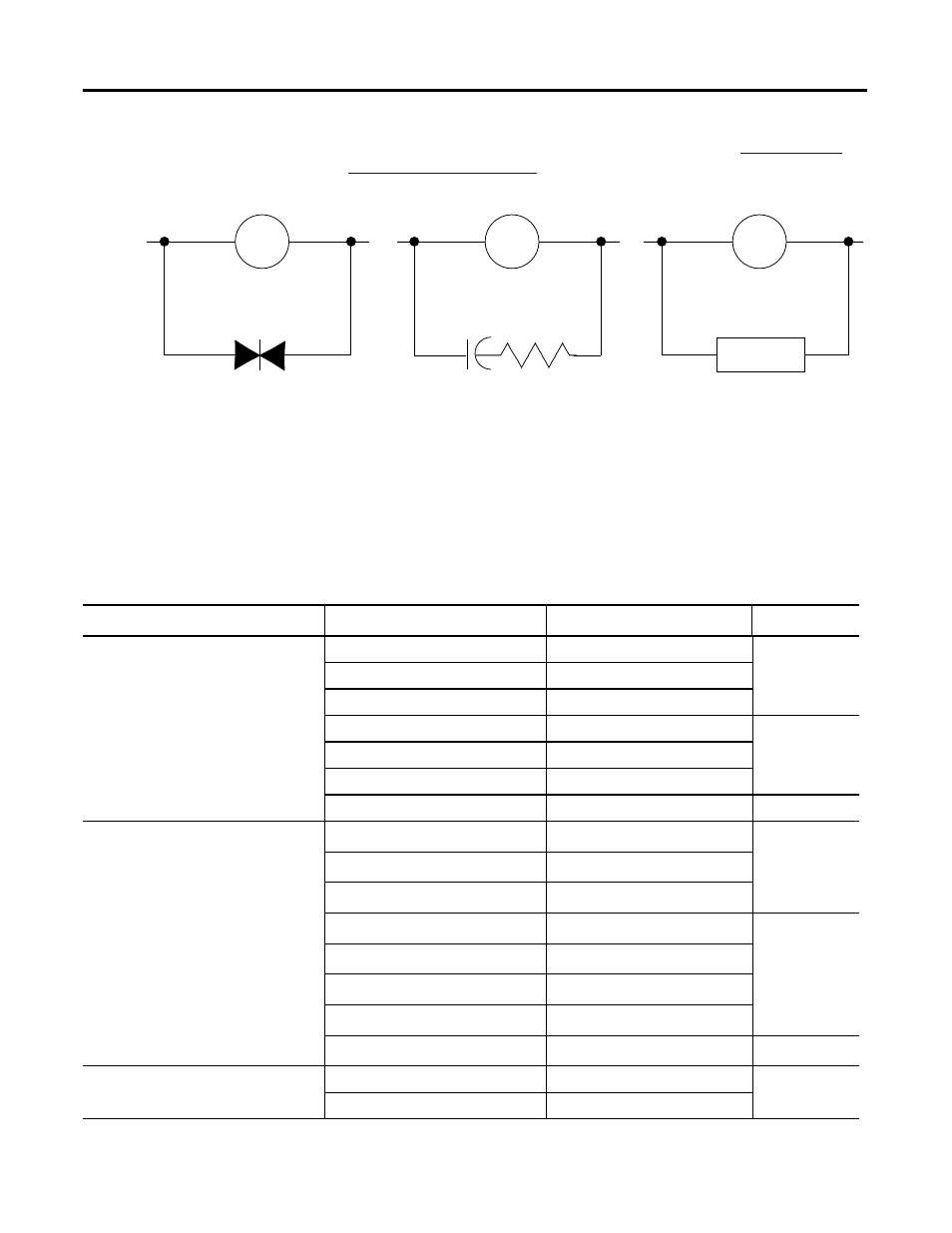

Surge Suppression for Inductive AC Load Devices
Output device
Output device
Output device
Varistor
RC network
Surge
suppressor
Recommended Surge Suppressors
Device
Coil Voltage
Suppressor Catalog Number
Type
(4)
Bulletin 100/104K 700K
24…48V AC
100-KFSC50
RC
110…280V AC
100-KFSC280
380…480V AC
100-KFSC480
12…55 V AC, 12…77V DC
100-KFSV55
MOV
56…136 VAC, 78…180V DC
100-KFSV136
137…277V AC, 181…250 V DC
100-KFSV277
12…250V DC
100-KFSD250
Diode
Bulletin 100C, (C09 - C97)
24…48V AC
100-FSC48
(1)
RC
110…280V AC
100-FSC280
(1)
380…480V AC
100-FSC480
(1)
12…55V AC, 12…77V DC
100-FSV55
(1)
MOV
56…136V AC, 78…180V DC
100-FSV136
(1)
137…277V AC, 181…250V DC
100-FSV277
(1)
278…575V AC
100-FSV575
(1)
12…250V DC
100-FSD250
(1)
Diode
Bulletin 509 Motor Starter Size 0 - 5
12…120V AC
599-K04
MOV
240…264V AC
599-KA04
