Using Symbols and Expressions

in Report Generation

Chapter 8

8Ć3

In the procedure @EASY, from chapter 8, the variable A serves as a user
symbol within the procedure, however, symbols have many purposes
which we discuss in this chapter. The PLC-3 controller supports two types
of symbols (figure 8.1):

User

symbols

System

symbols

The following sections explain these types of symbols.

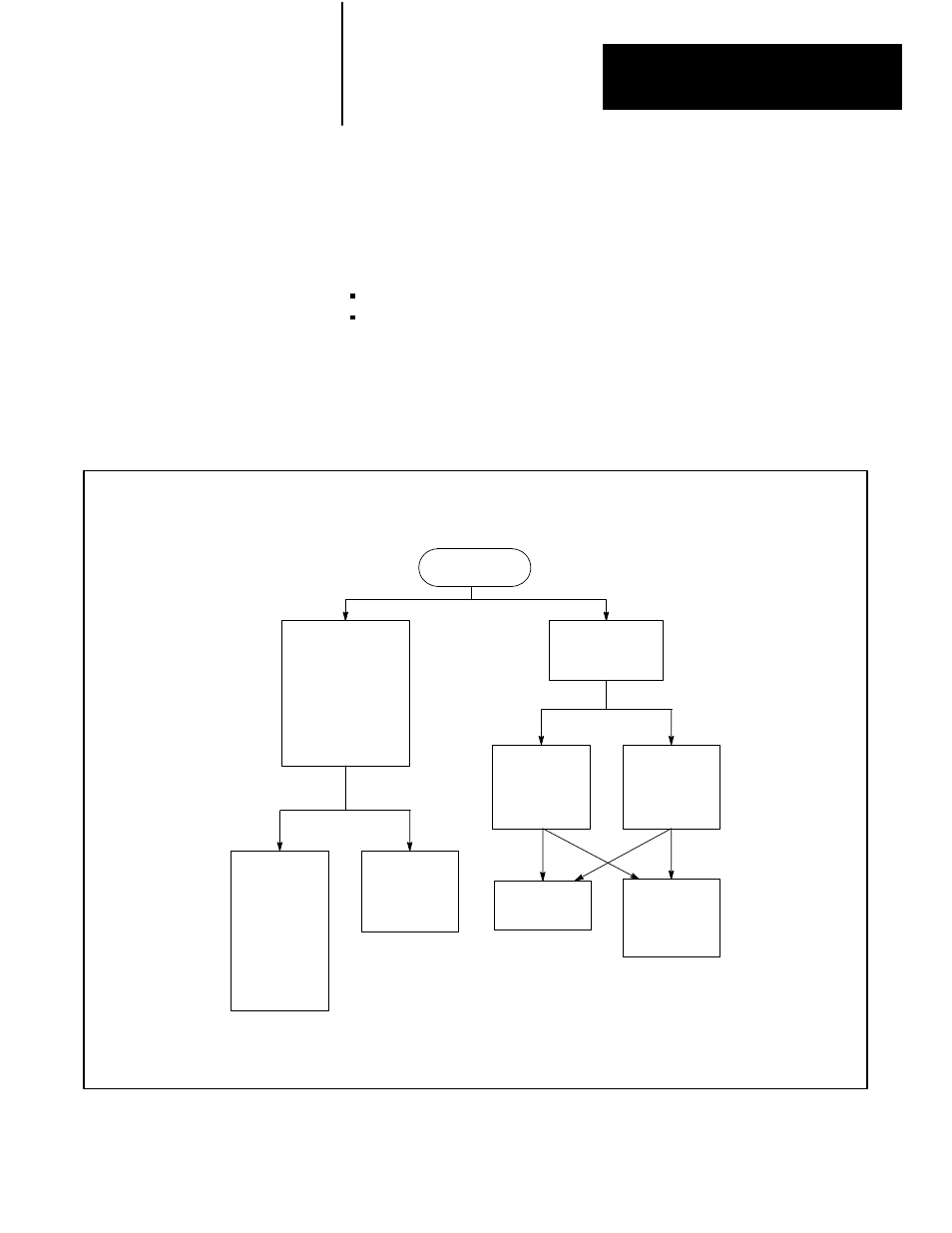

Figure 8.1

Report Generation Symbols

Interprocedural
Applies to the

procedure in

which it is

generated plus

any other

procedure

nested together

with that

procedure.

It can be

removed with

the delete

command.

Procedural
Applies only

to the procedure

in which it is

generated.

Global
Applies to

any context.

System Symbol
Remove this type of

symbol with the delete

command.

Symbol

Symbolic Address
Generate this

type of symbol

through the

create command.

Local
Applies only to

the context

in which the

symbol is

generated.

User Symbol
Generate this symbolic

value through the

assignment command. User

symbols are removed when

you switch from command

mode control to ladder

diagram control, when a

procedure called from the

ladder diagram program

completes executing, or by

using the delete command.

Procedure Name
Generate this

type of symbol

through the

edit command.

8.2
Symbols
