Installing Your 1775ĆS4B Scanner

Chapter 3

3Ć6

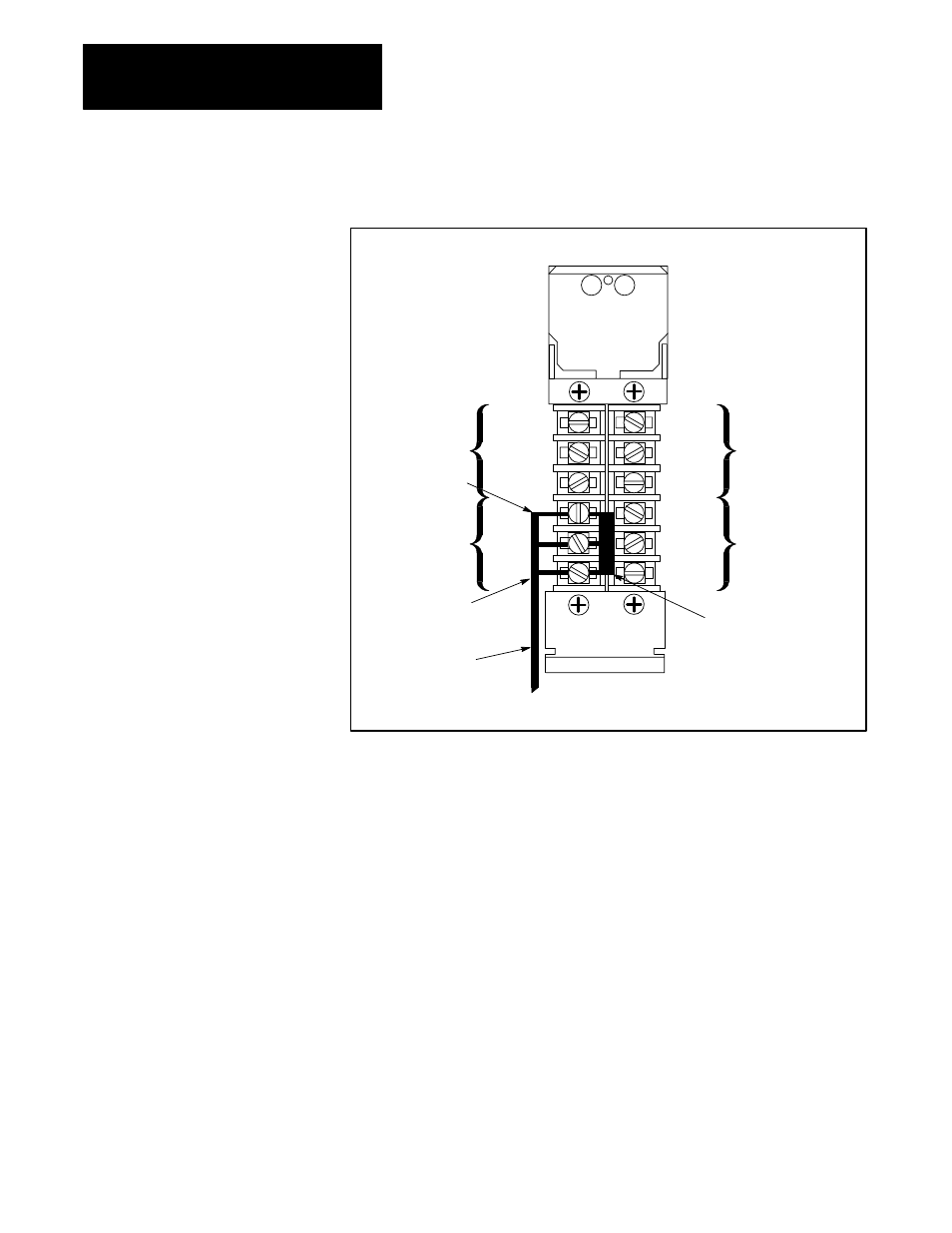

Figure 3.6

I/O Scanner Module I/O Channel Connections

Terminator (Cat. No. 177)

Twinaxial Cable

Cat. No. 1770-CD

Clear

Channel

No. 1

Blue

Channel

No. 3

Line 1

Shield

Line 2

Line 1

Shield

Line 2

Line 1

Shield

Line 2

Line 1

Shield

Line 2

Channel

No. 4

Channel

No. 2

Figure 3.7 shows the terminal identification label which indicates the
proper connections for each I/O adapter module to an I/O channel. This
label is on the side of the module. The connections are made at screw
terminals on a wiring arm in front of each I/O adapter module.
