Appendix
C
CĆ1
Report Generation Quick
Reference Guide
This appendix contains tables and figures which will remind
you how to do report generation on the 1775-S4B scanner:
Figure or Table Page
Specifying a Data Format C-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Conversion Table C-2 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Expression Operators C-3 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Assigning User Symbols C-3 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section Modifiers C-4 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing Procedures C-4 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using Commands From the S4B Prompt C-5 5 . . . . . . . . . . . . . . . . . . . . . . .
Using Commands within Procedures C-5 5 . . . . . . . . . . . . . . . . . . . . . . . . . .
Using Functions C-6 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Error Codes C-7 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

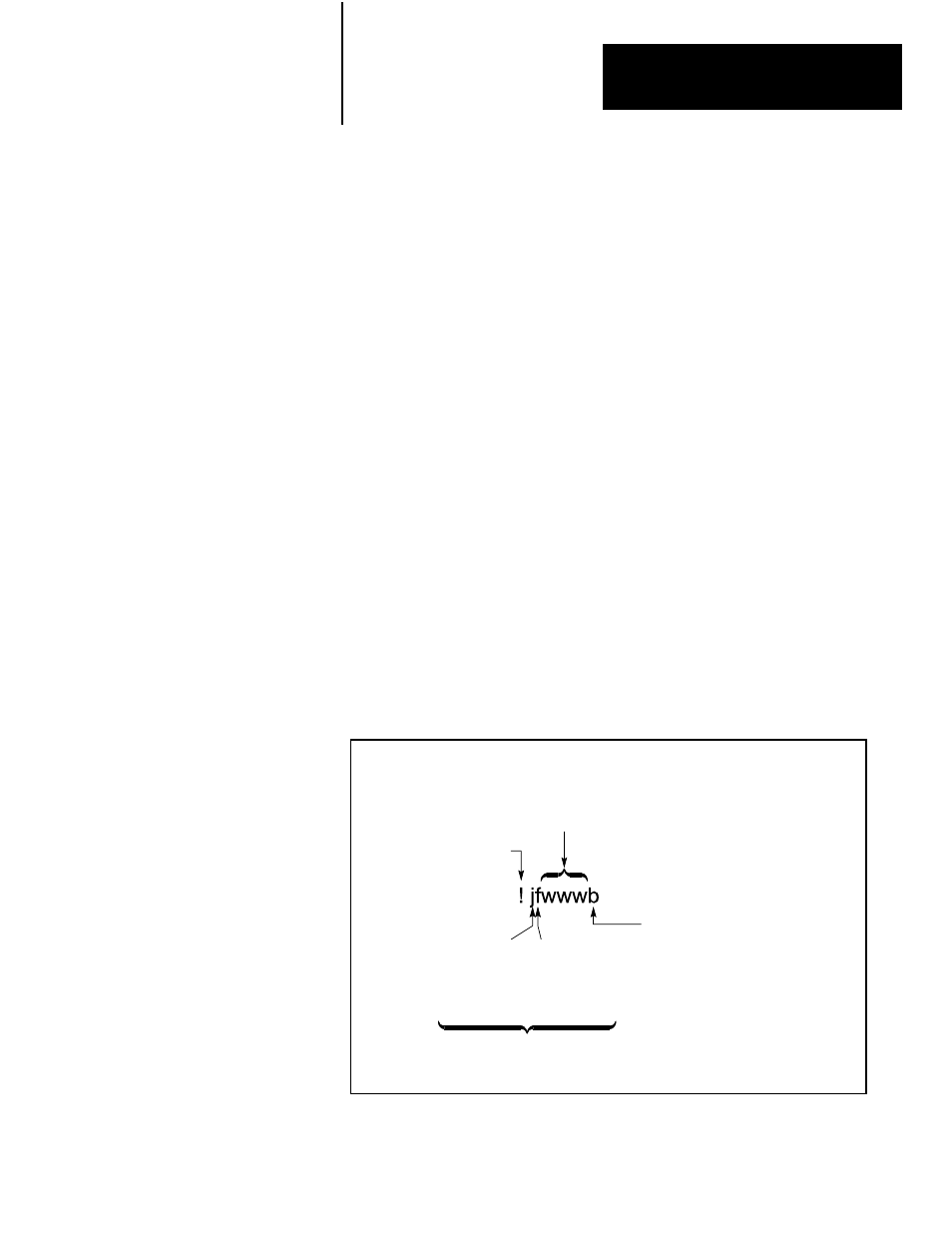

Figure C.1
Specifying a Data Format
Width of field. If not specified or 0, printing starts on
the left and continues through a field width necessary to
hold the value; therefore, justification and fill character
specifications do not apply.
Delimits the start
of format specification
Fill character
(With a field
width, default
is space
Justification:
+ for right
- for left
(With a field
width, default
is right)
Specify both or neither. Do not specify
when field width is not specified or 0.
Base:
B for binary
H for hexadecimal
O for octal
S for string
D for decimal
(If you enter a format delimiter,
you must specify the base. With
no delimiter, the default is decimal
for numeric values and string for
string values.)
C.0
Quick Reference
