Rockwell Automation 1772-LS_LSP,D17726.8.6 PROG/OPER MANUAL-MINI PLC-2/05 User Manual
Page 32

Hardware
Chapter 3
3-6
Battery Backup
Purpose: Provides battery backup power for the processor’s memory.
Hardware: Size AA, 3.6V Lithium Battery, 1.785 amp hr, 0 to 70
o
C
Function: In order for you to retain processor memory after loss of power,
the processor contains an AA size lithium battery. A removeable holder
located at the rear of the processor module houses your battery. This
battery supports stored memory for up to two years. We recommend
documenting the start-up date of your processor. Put the date on the label
at the side of the processor.
Industrial Terminal
Purpose: You need the Industrial Terminal System (cat. no. 1770-T3) or an
Industrial Terminal (cat. no. 1784-T50) with 6200 programming software
(6201-, 6203-, 6211-, 6213-PLC2) to program the processor and access the
processor modes of operation (Figure 3.3).

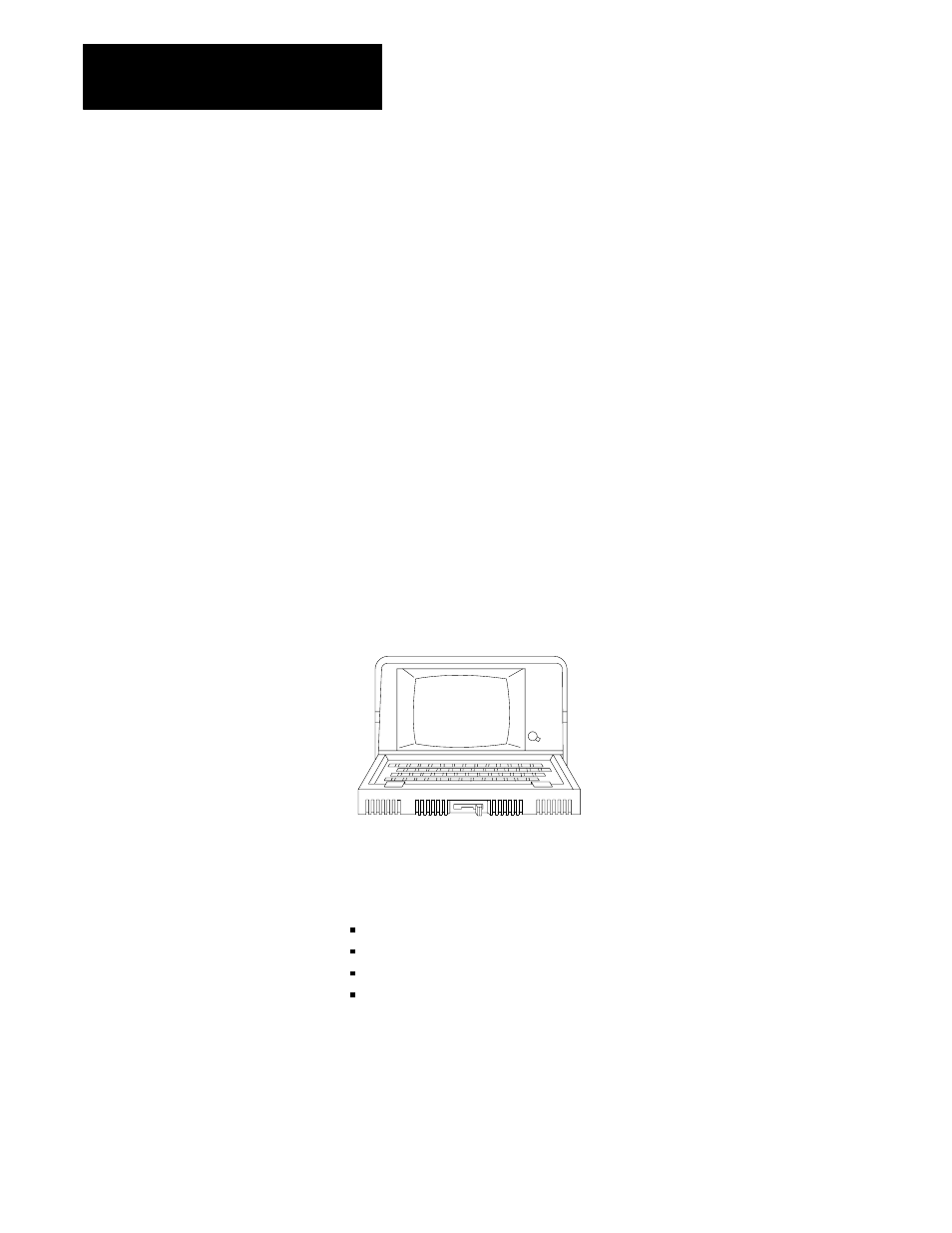

Figure 3.3
Industrial Terminal System
10697ĆI
Function: With your industrial terminal you can:
enter
edit
test
troubleshoot
your program.
